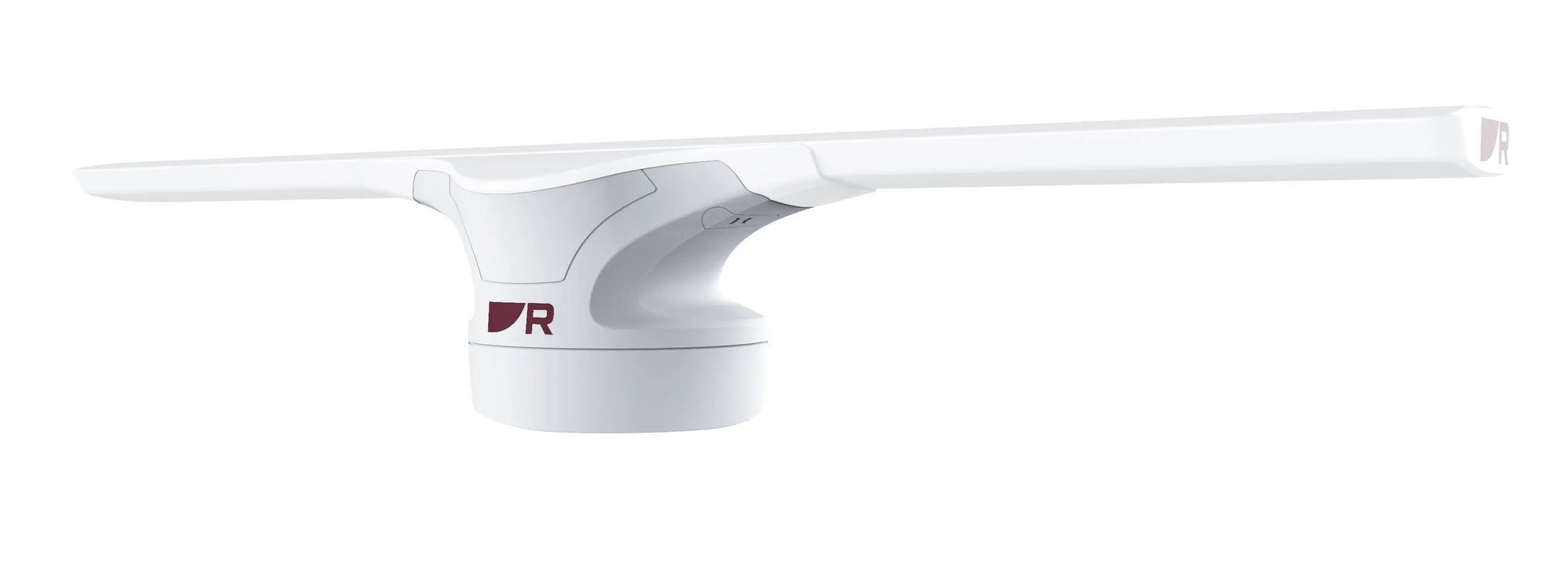

Raymarine 110 Watt Cyclone Pro Pedestal Only

Raymarine 110 Watt Cyclone Pro Pedestal Only: Superior Marine Power

Raymarine 110 Watt Cyclone Pro Pedestal Only

Raymarine 110 Watt Cyclone Pedestal Only

Model: E70621

Pedestal Only for 110 Watt Cyclone

Specifications

Supply voltage (Using VCM100)Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc /

Maximum: 31.2 V dc

Power consumption (typical)
95 Watts

Power consumption (max)
195 Watts

Power consumption (standby)
28 Watts

Maximum range scale
96 nm

Boot up time
40 seconds

Standby to transmit
less than 5 seconds

Waterproof rating
IPX6

Operating temperature range
-25 degC to +55 degC (-13 degF to 131 degF)

Humidity
Up to 93% at 40 degC (104 degF)

Maximum wind speed
100 Kts

Power connection
1x Power connector

Data connection
1x RayNet connector

Transmitter frequency
9370, 9400, 9430 MHz (User Selectable)

Peak power output
110 Watts

Receiver characteristic
Linear

Receiver noise
Less than 5 dB

Pedestal

Dimensions
388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)

Weight
16 Kg

What's in the Box:

• E70621 110 watt pedestal

Unmatched Performance and Efficiency

The Raymarine 110 Watt Cyclone Pro Pedestal Only delivers exceptional performance for marine power applications. Designed to withstand harsh marine environments, this pedestal features advanced solar technology that maximizes energy absorption even in low light conditions. With a reliable 110-watt power output, it ensures consistent energy supply for all your onboard electrical needs. Raymarine’s reputation for quality and durability shines through in this product, making it a trusted choice among boat owners and marine professionals alike.

Robust and Weather-Resistant Design

Crafted with marine-grade materials, the Raymarine pedestal offers outstanding resistance against salt spray, UV rays, and extreme weather conditions. Its sturdy construction ensures long-lasting durability, even when exposed to rough seas and intense sun exposure. This design supports both stationary and mobile applications, providing stability and efficient power generation throughout your marine adventures. With minimal maintenance requirements, the Cyclone Pro Pedestal guarantees uninterrupted service on any vessel.

Easy Installation and Versatility

The Raymarine 110 Watt Cyclone Pro Pedestal Only is engineered for hassle-free installation, compatible with a wide range of marine setups. Its compact size and lightweight structure allow for flexible mounting options on various boat types. Additionally, this pedestal integrates seamlessly with existing systems, enhancing your boat’s energy efficiency without the need for extensive modifications. Ideal for sailors, fishermen, and marine professionals, it offers a dependable power source that supports extended trips on the water.
