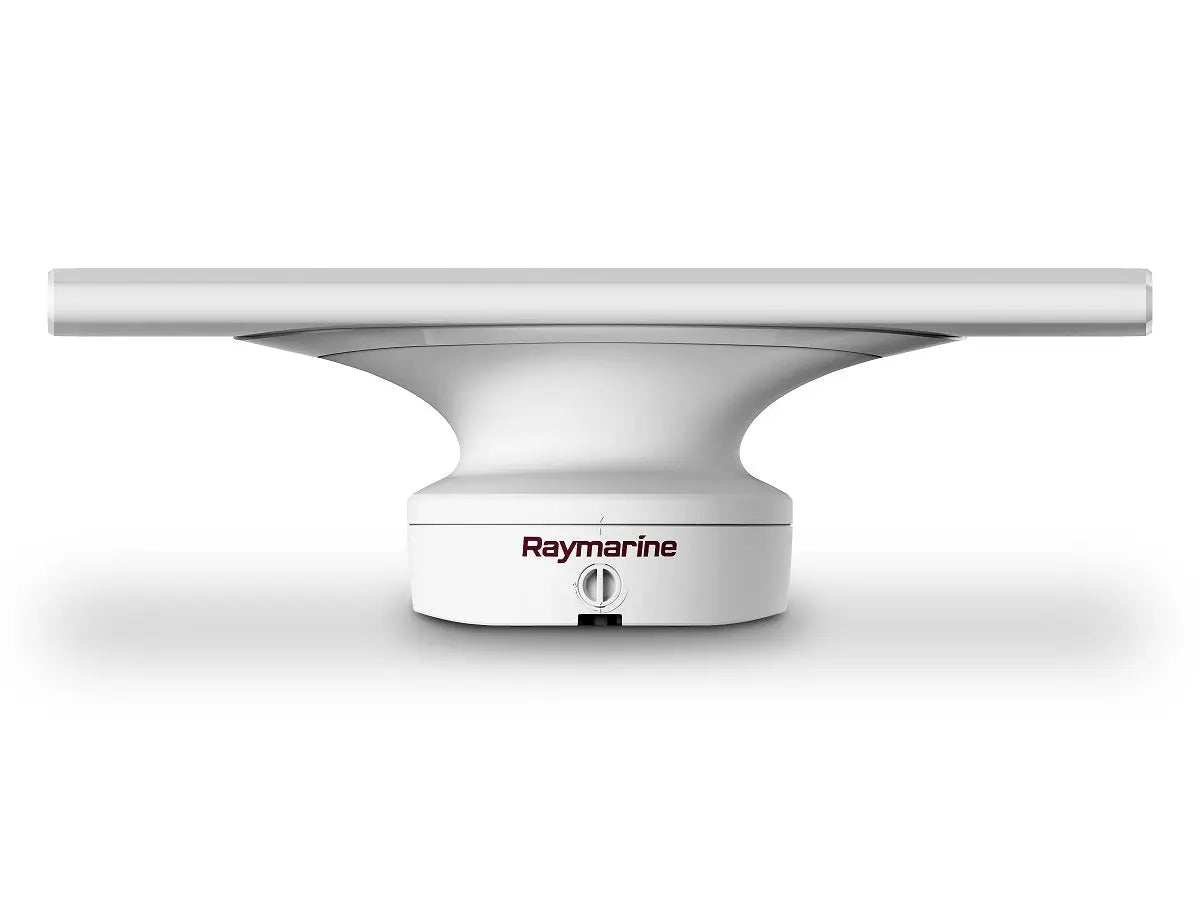

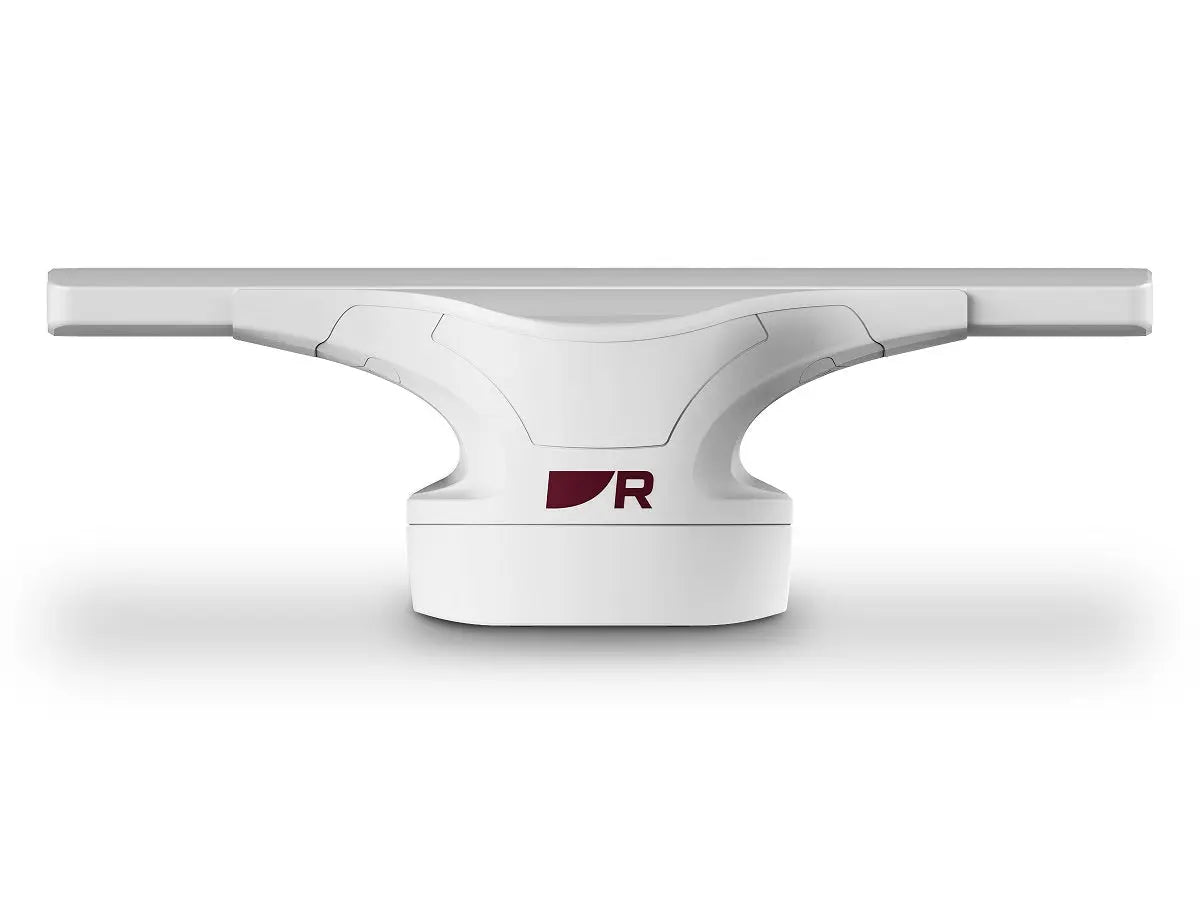

Raymarine 110 Watt Cyclone Pro With 3ft Antenna 15m Cables

Raymarine 110 Watt Cyclone Pro: Superior Marine Communication Solution

Raymarine 110 Watt Cyclone Pro With 3ft Antenna 15m Cables

Raymarine 110 Watt Cyclone Radar with 3 feet Antenna

Model: T70494

• Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar
• At 13.1 inches (335 mm) tall, Cyclone's lower profile allows greater flexibility of boat architecture and more adaptable installation options.
• Innovative pedestal design conceals cable connections for a cleaner installation
• Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
• Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety.
• Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same
  advanced ARPA technology trusted by the United States Coast Guard.
• RangeFusionTM technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
• Performance tuned for locating sea birds
• Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest
conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusionTM technology and high speed 60 rpm imaging.

Specifications

Supply voltage (Using VCM100)Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc /

Maximum: 31.2 V dc

Power consumption (typical)
95 Watts

Power consumption (max)
195 Watts

Power consumption (standby)
28 Watts

Maximum range scale
96 nm

Boot up time
40 seconds

Standby to transmit
less than 5 seconds

Waterproof rating
IPX6

Operating temperature range
-25 degC to +55 degC (-13 degF to 131 degF)

Humidity
Up to 93% at 40 degC (104 degF)

Maximum wind speed
100 Kts

Power connection
1x Power connector

Data connection
1x RayNet connector

Transmitter frequency
9370, 9400, 9430 MHz (User Selectable)

Peak power output
110 Watts

Receiver characteristic
Linear

Receiver noise
Less than 5 dB

Pedestal

Dimensions
388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)

Weight
16 Kg

Antenna

Beamwidth (vertical)
25 degree

Beamwidth (horizontal)
2.83 degree

Polarization
Horizontal

Rotation speed
12, 24, 36, 48, 60 rpm

Length
1031 mm / 40.59 in

Weight
7 Kg / 15.4 lb

What's in the Box:

• E70621 110 watt pedestal
• E70628 3 feet Antenna
• A80653 15m Power cable
• A8058 15m Data Cable

High-Powered Performance for Clear Communication

The Raymarine 110 Watt Cyclone Pro is designed to deliver outstanding marine radio communication. Featuring a robust 110-watt power output, this antenna ensures clear, uninterrupted transmissions even in challenging maritime environments. Its advanced design helps maintain strong signal quality over long distances, making it an essential companion for any boat owner or professional mariner. With Raymarine's commitment to reliability, this Cyclone Pro model improves your vessel’s communication capabilities and safety at sea.

Durable 3ft Antenna with 15m Cables

This Raymarine Cyclone Pro comes equipped with a 3ft fiberglass antenna that offers excellent reception and transmission efficiency. The antenna’s length is ideal for optimal signal range without compromising on installation flexibility. Additionally, the included 15-meter cables provide ample length for versatile setup options, allowing you to position the antenna in the best location on your boat. The high-quality cable materials ensure minimal signal loss and are built to withstand harsh marine conditions.

Easy Installation and Marine-Grade Construction

Engineered with boaters in mind, the Raymarine 110 Watt Cyclone Pro antenna is straightforward to install with minimal tools required. Its corrosion-resistant marine-grade components guarantee long-lasting durability against saltwater, UV exposure, and extreme weather conditions. The antenna’s design supports a range of VHF radios and communication systems, making it a versatile choice for upgrading your marine communication setup. By choosing Raymarine, you invest in both performance and reliability that you can trust on the water.
