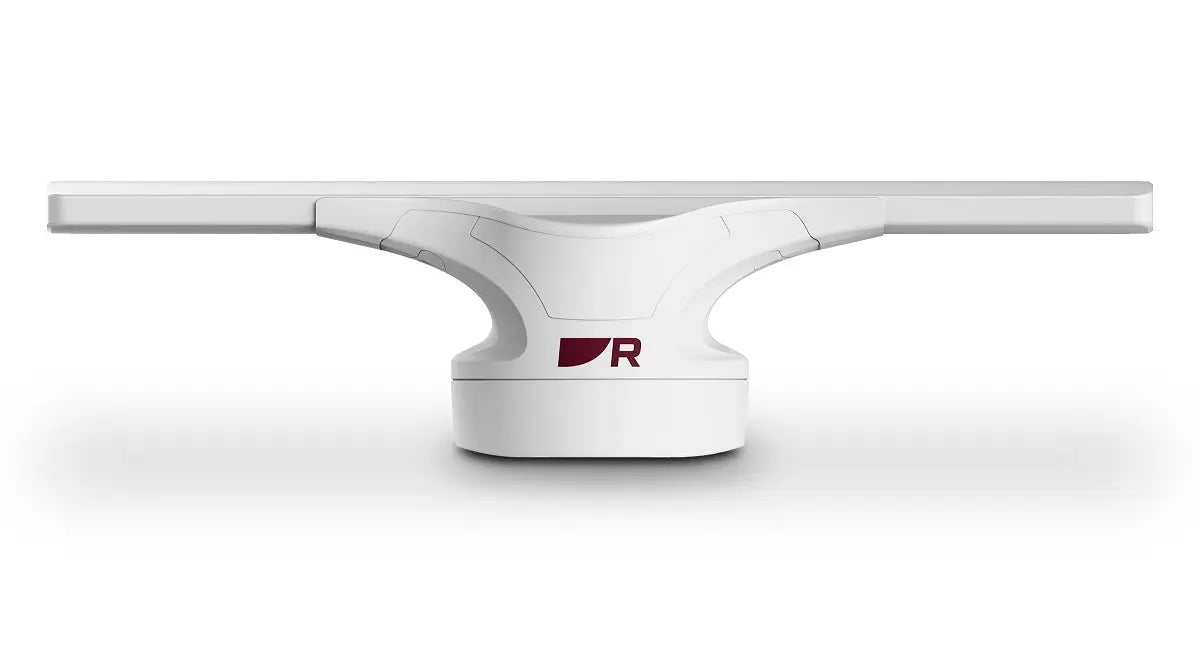

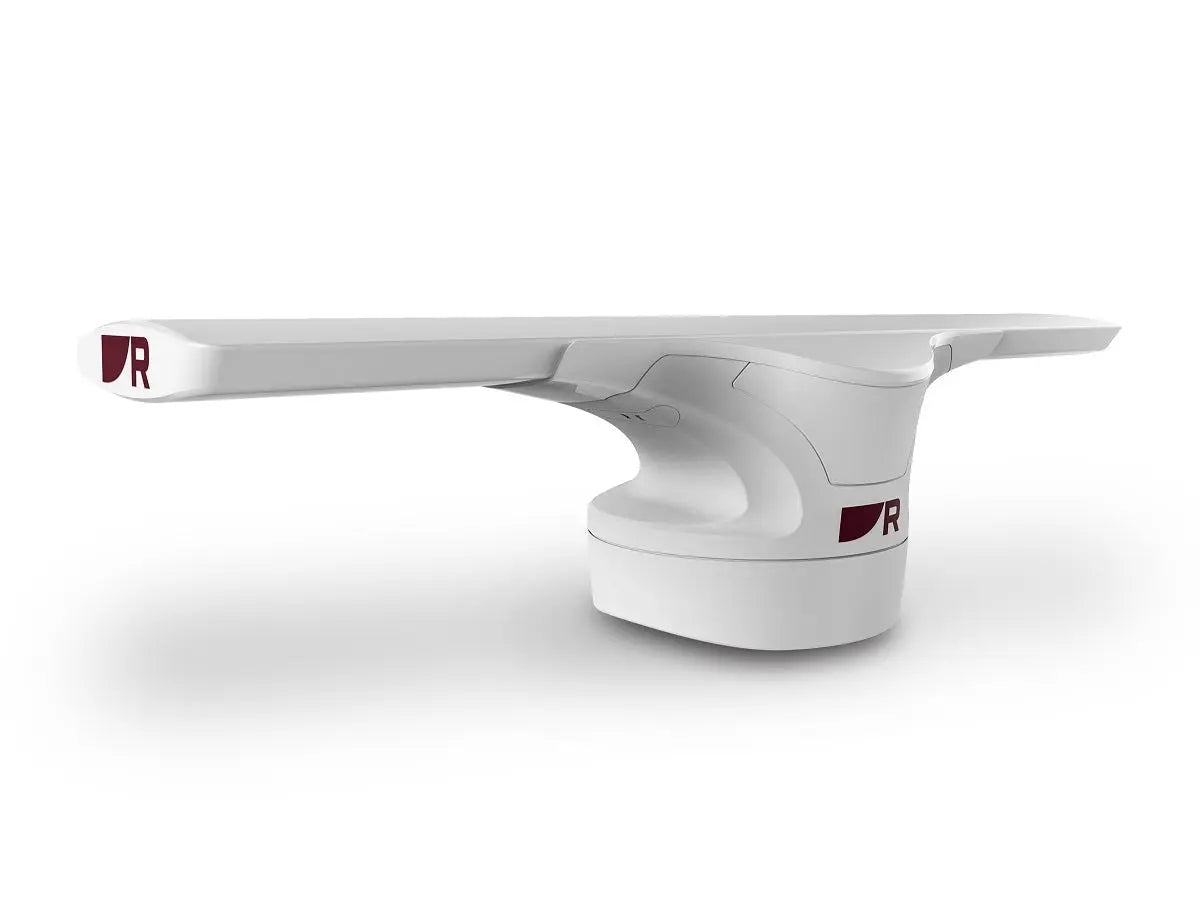

Raymarine 110 Watt Cyclone Pro With 4ft Antenna 15m Cables

Explore the Advanced Features of the Raymarine 110 Watt Cyclone Pro

Raymarine 110 Watt Cyclone Pro With 4ft Antenna 15m Cables

Raymarine 110 Watt Cyclone Radar with 4 feet Antenna

Model: T70495

• Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar
• At 13.1 inches (335 mm) tall, Cyclone's lower profile allows greater flexibility of boat architecture and more adaptable installation options.
• Innovative pedestal design conceals cable connections for a cleaner installation
• Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
• Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety.
• Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same
  advanced ARPA technology trusted by the United States Coast Guard.
• RangeFusionTM technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
• Performance tuned for locating sea birds
• Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest
conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusionTM technology and high speed 60 rpm imaging.

Specifications

Supply voltage (Using VCM100)Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc /

Maximum: 31.2 V dc

Power consumption (typical)
95 Watts

Power consumption (max)
195 Watts

Power consumption (standby)
28 Watts

Maximum range scale
96 nm

Boot up time
40 seconds

Standby to transmit
less than 5 seconds

Waterproof rating
IPX6

Operating temperature range
-25 degC to +55 degC (-13 degF to 131 degF)

Humidity
Up to 93% at 40 degC (104 degF)

Maximum wind speed
100 Kts

Power connection
1x Power connector

Data connection
1x RayNet connector

Transmitter frequency
9370, 9400, 9430 MHz (User Selectable)

Peak power output
110 Watts

Receiver characteristic
Linear

Receiver noise
Less than 5 dB

Pedestal

Dimensions
388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)

Weight
16 Kg

Antenna

Beamwidth (vertical)
25 degree

Beamwidth (horizontal)
1.99 degree

Polarization
Horizontal

Rotation speed
12, 24, 36, 48, 60 rpm

Length
1336 mm / 52.59 in

Weight
9 Kg / 19.84 lb

What's in the Box:

• E70621 110 watt pedestal
• E70629 4 feet Antenna
• A80653 15m Power cable
• A8058 15m Data Cable

Powerful 110 Watt Output for Exceptional Signal Strength

The Raymarine 110 Watt Cyclone Pro is designed to deliver outstanding signal strength, ensuring clear and reliable marine communication. Its 110 watt power output enhances transmission range, making it ideal for professional and recreational marine users. Whether you are navigating through busy ports or open seas, this device provides a consistent communication link, reducing interference and signal drops. The enhanced power capability supports efficient transmission, so you stay connected when it matters most.

Durable 4ft Antenna for Optimal Reception

This model features a robust 4ft antenna engineered for maximum reception and durability in harsh marine environments. The antenna's length and design help boost signal clarity, improving both sending and receiving performance. Made from corrosion-resistant materials, it withstands saltwater exposure and strong winds, ensuring longevity and reliability. This makes the Raymarine 110 Watt Cyclone Pro a dependable tool for long-term use on all types of vessels.

Convenient 15m Cables for Flexible Installation

The Raymarine Cyclone Pro comes equipped with 15-meter cables, offering flexibility in mounting and installation. These extended cables enable easier connection between the radio unit and the antenna, accommodating a variety of boat layouts and configurations. By allowing optimal placement, the cables help maintain signal integrity and streamline the setup process. This practical feature ensures the device can be seamlessly integrated into your marine communication system without hassle.
