Raymarine 110 Watt Cyclone Pro With 6ft Antenna 15m Cables

Raymarine 110 Watt Cyclone Pro: Advanced Marine Communication Solution

Raymarine 110 Watt Cyclone Pro With 6ft Antenna 15m Cables

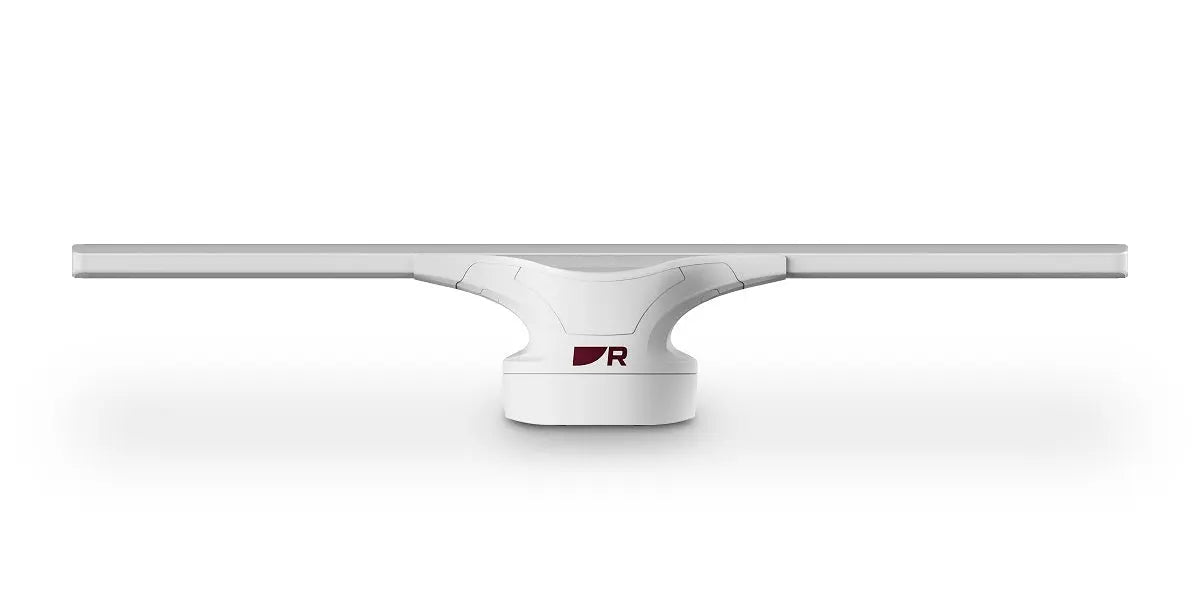

Raymarine 110 Watt Cyclone Radar with 6 feet Antenna

Model: T70496

• Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar
• At 13.1 inches (335 mm) tall, Cyclone's lower profile allows greater flexibility of boat architecture and more adaptable installation options.
• Innovative pedestal design conceals cable connections for a cleaner installation
• Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
• Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety.
• Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same
  advanced ARPA technology trusted by the United States Coast Guard.
• RangeFusionTM technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
• Performance tuned for locating sea birds
• Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest
conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusionTM technology and high speed 60 rpm imaging.

Specifications

Supply voltage (Using VCM100)Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc /

Maximum: 31.2 V dc

Power consumption (typical)
95 Watts

Power consumption (max)
195 Watts

Power consumption (standby)
28 Watts

Maximum range scale
96 nm

Boot up time
40 seconds

Standby to transmit
less than 5 seconds

Waterproof rating
IPX6

Operating temperature range
-25 degC to +55 degC (-13 degF to 131 degF)

Humidity
Up to 93% at 40 degC (104 degF)

Maximum wind speed
100 Kts

Power connection
1x Power connector

Data connection
1x RayNet connector

Transmitter frequency
9370, 9400, 9430 MHz (User Selectable)

Peak power output
110 Watts

Receiver characteristic
Linear

Receiver noise
Less than 5 dB

Pedestal

Dimensions
388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)

Weight
16 Kg

Antenna

Beamwidth (vertical)
25 degree

Beamwidth (horizontal)
1.32 degree

Polarization
Horizontal

Rotation speed
12, 24, 36, 48, 60 rpm

Length
1945 mm / 76.57 in

Weight
12 Kg / 26.45 lb

What's in the Box:

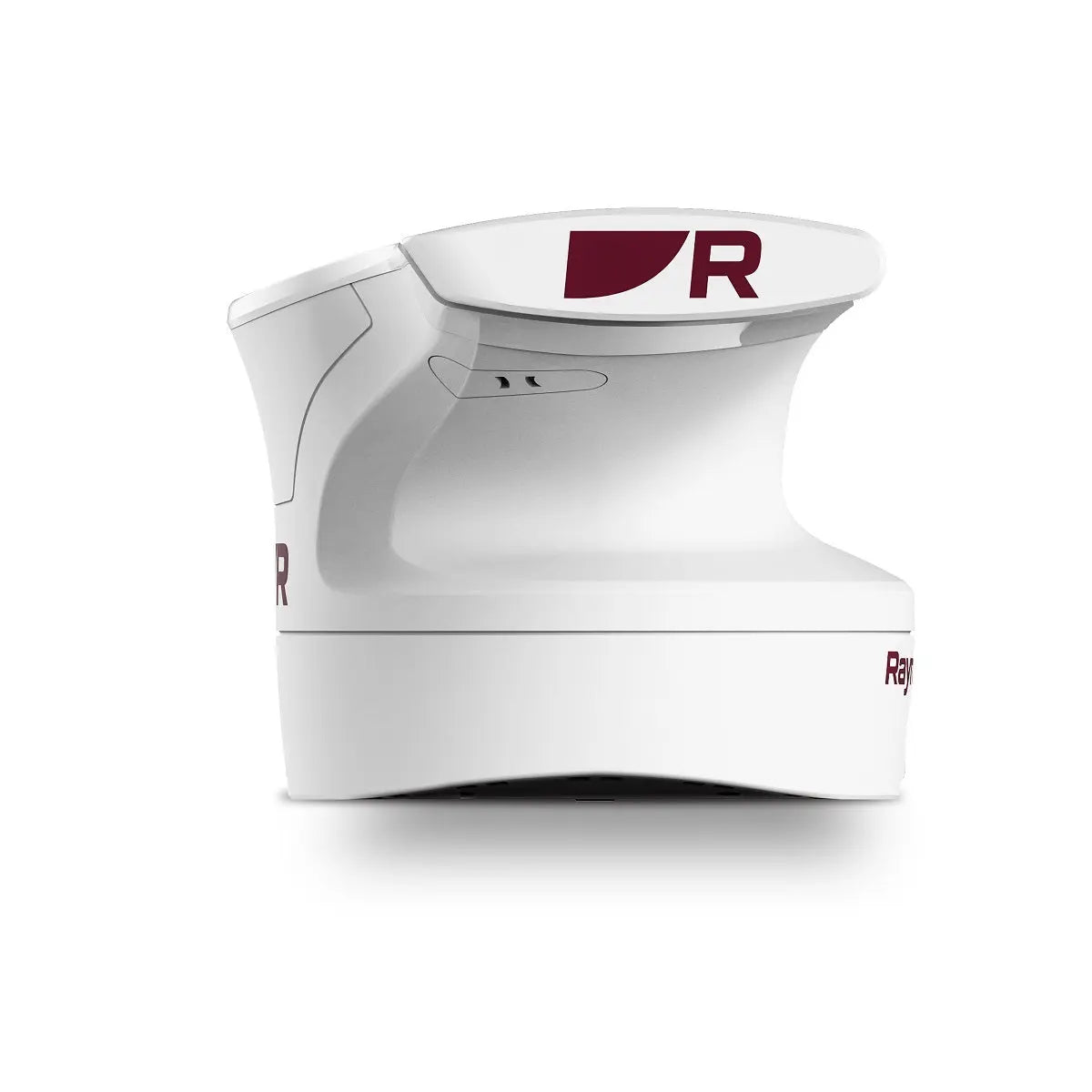

• E70621 110 watt pedestal
• E70630 6 feet Antenna
• A80653 15m Power cable
• A8058 15m Data Cable

Powerful Performance with Raymarine Cyclone Pro

The Raymarine 110 Watt Cyclone Pro With 6ft Antenna 15m Cables is engineered to deliver outstanding marine communication. Designed for professionals and enthusiasts alike, this device offers a robust 110-watt output that ensures clear, long-range transmission on the water. With its built-in 6-foot antenna and 15-meter cables, users enjoy enhanced signal reception and easy installation flexibility. Raymarine continues to uphold its reputation for high-quality marine electronics, making the Cyclone Pro a reliable choice for navigating even the most challenging marine environments.

Durable Design for Marine Environments

Raymarine’s Cyclone Pro is built to withstand the harsh conditions of marine settings. Its rugged housing protects the unit from moisture, saltwater corrosion, and physical impacts commonly encountered on boats. The 6ft antenna enhances reception while being constructed from materials that resist wear and tear, ensuring durability over time. The 15m cables offer ample length for flexible installations without signal loss. This combination of power, design quality, and durable components makes the Cyclone Pro an essential asset for dependable communication at sea.

Easy Installation and Reliable Connectivity

Installing the Raymarine 110 Watt Cyclone Pro is straightforward thanks to its 15-meter cables and compact antenna. The extended cabling allows for versatile positioning on various vessels, accommodating different layouts and maximizing signal strength. The 6ft antenna is optimized for marine frequencies, which improves clarity and reduces interference. Together, these features provide seamless integration with your existing marine communication systems. Whether you're a professional mariner or recreational boater, the Cyclone Pro delivers consistent, high-quality connectivity crucial for safe and efficient marine operations.
