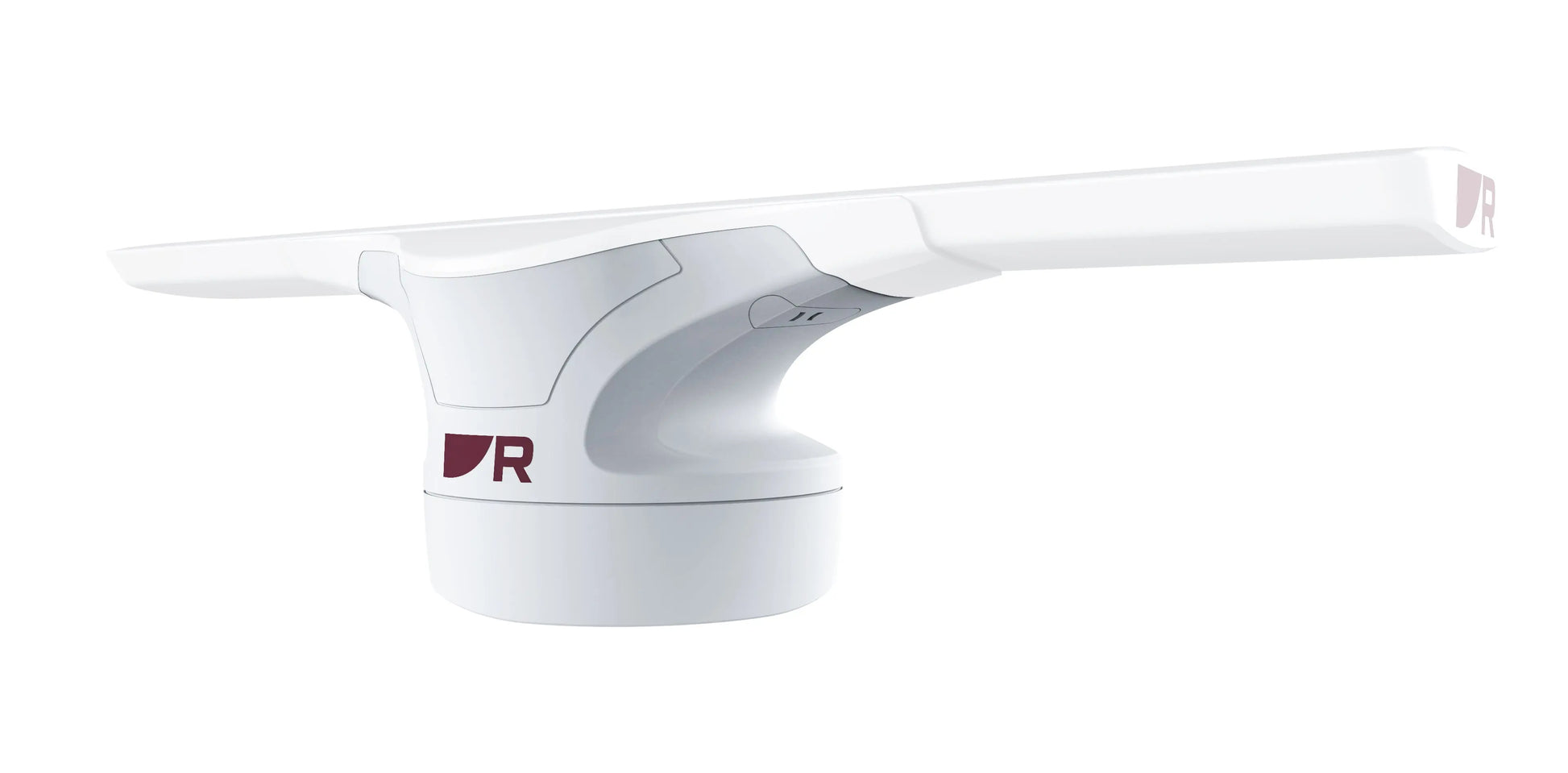

Raymarine 55 Watt Cyclone Pedestal Only

Model: E70620

Pedestal Only for 55 Watt Cyclone

Specifications

Supply voltage (Using VCM100)Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc /

Maximum: 31.2 V dc

Power consumption (typical)
70 Watts

Power consumption (max)
170 Watts

Power consumption (standby)
28 Watts

Maximum range scale
72 nm

Boot up time
40 seconds

Standby to transmit
less than 5 seconds

Waterproof rating
IPX6

Operating temperature range
-25 degC to +55 degC (-13 degF to 131 degF)

Humidity
Up to 93% at 40 degC (104 degF)

Maximum wind speed
100 Kts

Power connection
1x Power connector

Data connection
1x RayNet connector

Transmitter frequency
9370, 9400, 9430 MHz (User Selectable)

Peak power output
55 Watts

Receiver characteristic
Linear

Receiver noise
Less than 5 dB

Pedestal

Dimensions
388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)

Weight
16 Kg

What's in the Box:

• E70620 55 watt pedestal

Overview of Raymarine 55 Watt Cyclone Pedestal

The Raymarine 55 Watt Cyclone Pedestal is designed specifically for marine environments, delivering reliable performance and durable construction. This pedestal only product serves as an essential mount for various marine electronics, providing a stable and sturdy base to enhance installation efficiency. Built with high-quality materials, the pedestal withstands harsh saltwater conditions, making it perfect for long-term use on boats. Its 55-watt power rating ensures compatibility with standard marine power supplies, making it a trusted choice for seafarers looking to upgrade or replace their existing pedestal units with trusted Raymarine quality.

Durability and Build Quality

Raymarine's 55 Watt Cyclone Pedestal stands out due to its robust construction built to resist corrosion and physical impacts common in marine environments. The materials used are carefully selected to offer longevity even under constant exposure to sun, salt, and moisture. This pedestal features reinforced joints and a compact design that enhances both stability and safety on deck. Whether you face rough seas or intense sun exposure, the Cyclone Pedestal maintains structural integrity, ensuring your marine electronics remain securely mounted without risk of failure or excessive wear.

Installation and Compatibility

This pedestal-only unit from Raymarine simplifies the installation process for professionals and enthusiasts alike. Designed to be compatible with a wide array of marine electronic components, the Cyclone Pedestal allows easy integration with existing boat setups or new installations. Its user-friendly mounting system requires minimal tools and effort, reducing downtime during upgrades or replacements. Furthermore, the 55 Watt power design matches standard marine power sources, ensuring seamless electrical compatibility. This combination of versatility and ease-of-use makes it ideal for any boating enthusiast seeking dependable marine hardware.
