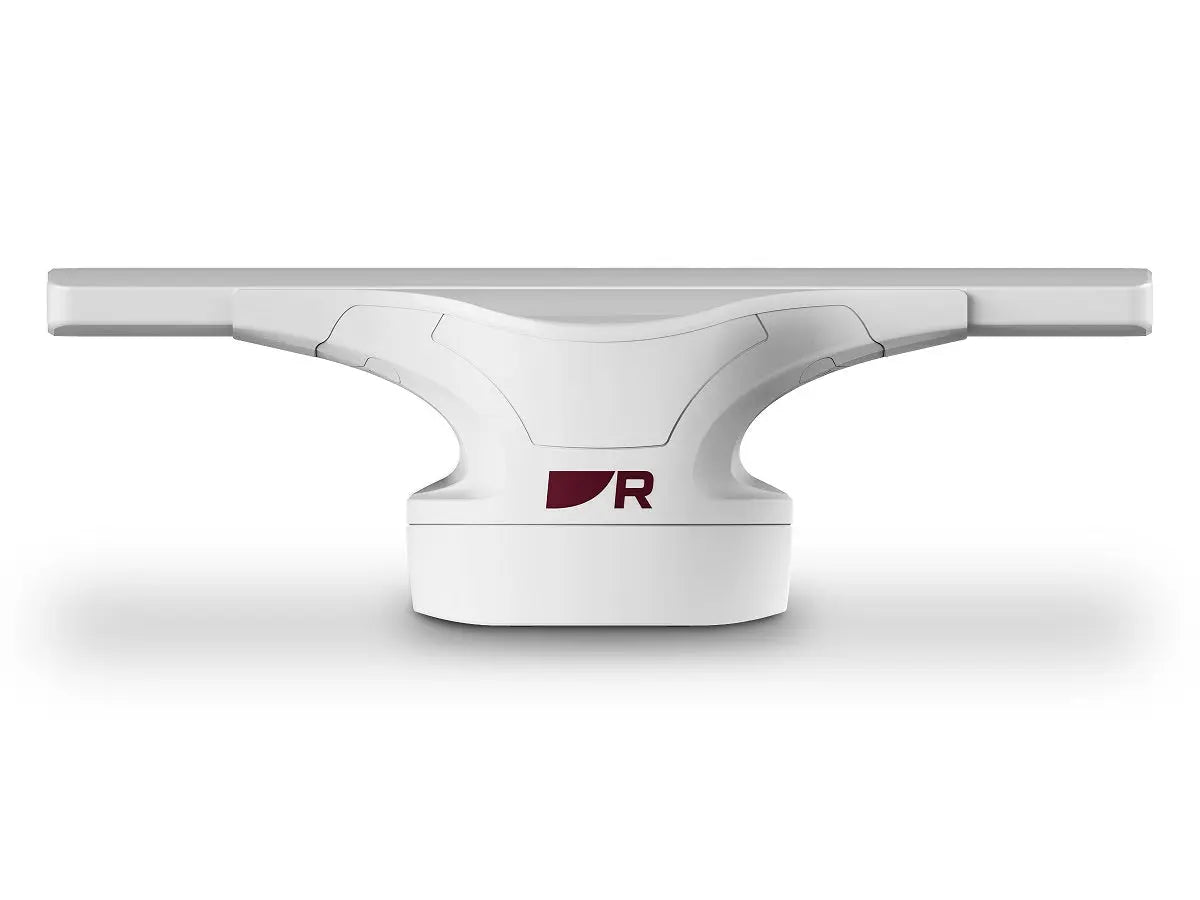

Raymarine 55 Watt Cyclone With 3ft Antenna 15m Cables

Raymarine 55 Watt Cyclone: Superior Communication for Marine Adventures

Raymarine 55 Watt Cyclone With 3ft Antenna 15m Cables

Raymarine 55 Watt Cyclone Radar with 3 feet Antenna

Model: T70491

• Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar
• At 13.1 inches (335 mm) tall, Cyclone's lower profile allows greater flexibility of boat architecture and more adaptable installation options.
• Innovative pedestal design conceals cable connections for a cleaner installation
• Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
• Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety.
• Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same
  advanced ARPA technology trusted by the United States Coast Guard.
• RangeFusionTM technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
• Performance tuned for locating sea birds
• Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest
conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusionTM technology and high speed 60 rpm imaging.

Specifications

Supply voltage (Using VCM100)Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc /

Maximum: 31.2 V dc

Power consumption (typical)
70 Watts

Power consumption (max)
170 Watts

Power consumption (standby)
28 Watts

Maximum range scale
72 nm

Boot up time
40 seconds

Standby to transmit
less than 5 seconds

Waterproof rating
IPX6

Operating temperature range
-25 degC to +55 degC (-13 degF to 131 degF)

Humidity
Up to 93% at 40 degC (104 degF)

Maximum wind speed
100 Kts

Power connection
1x Power connector

Data connection
1x RayNet connector

Transmitter frequency
9370, 9400, 9430 MHz (User Selectable)

Peak power output
55 Watts

Receiver characteristic
Linear

Receiver noise
Less than 5 dB

Pedestal

Dimensions
388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)

Weight
16 Kg

Antenna

Beamwidth (vertical)
25 degree

Beamwidth (horizontal)
2.83 degree

Polarization
Horizontal

Rotation speed
12, 24, 36, 48, 60 rpm

Length
1031 mm / 40.59 in

Weight
7 Kg / 15.4 lb

What's in the Box:

• E70620 55 watt pedestal
• E70628 3 feet Antenna
• A80653 15m Power cable
• A8058 15m Data Cable

Powerful 55 Watt Output for Clear Signals

The Raymarine 55 Watt Cyclone is designed to deliver exceptional marine communication through its robust 55 watt output. This level of power ensures clear and reliable transmission, even in challenging sea conditions. Whether you're navigating busy waterways or communicating during emergencies, this device offers the strength to maintain consistent contact. The high wattage capacity enhances signal clarity and range, making the Raymarine Cyclone an indispensable tool for marine enthusiasts who prioritize safety and effective communication on the water.

Compact 3ft Antenna for Easy Installation

This Raymarine product comes equipped with a compact 3ft antenna that balances size and performance perfectly. The antenna’s length makes installation straightforward on a wide variety of boats without compromising signal reception. Its aerodynamic and sturdy design reduces wind resistance and minimizes damage from rough marine environments. This combination of size and durability allows users to enjoy enhanced reception capabilities in a sleek, manageable form factor, optimizing both space and efficiency on board.

Includes 15m Cables for Flexible Setup

Accompanying the Cyclone is a generous 15-meter cable length, offering flexibility in installation placement. The extended cable allows users to position the radio and antenna optimally for maximum signal strength without worrying about connection constraints. This feature supports a tidy and efficient setup onboard, accommodating diverse boat configurations. The cables are also built to withstand harsh marine conditions, ensuring long-term durability while maintaining excellent connectivity between components.
