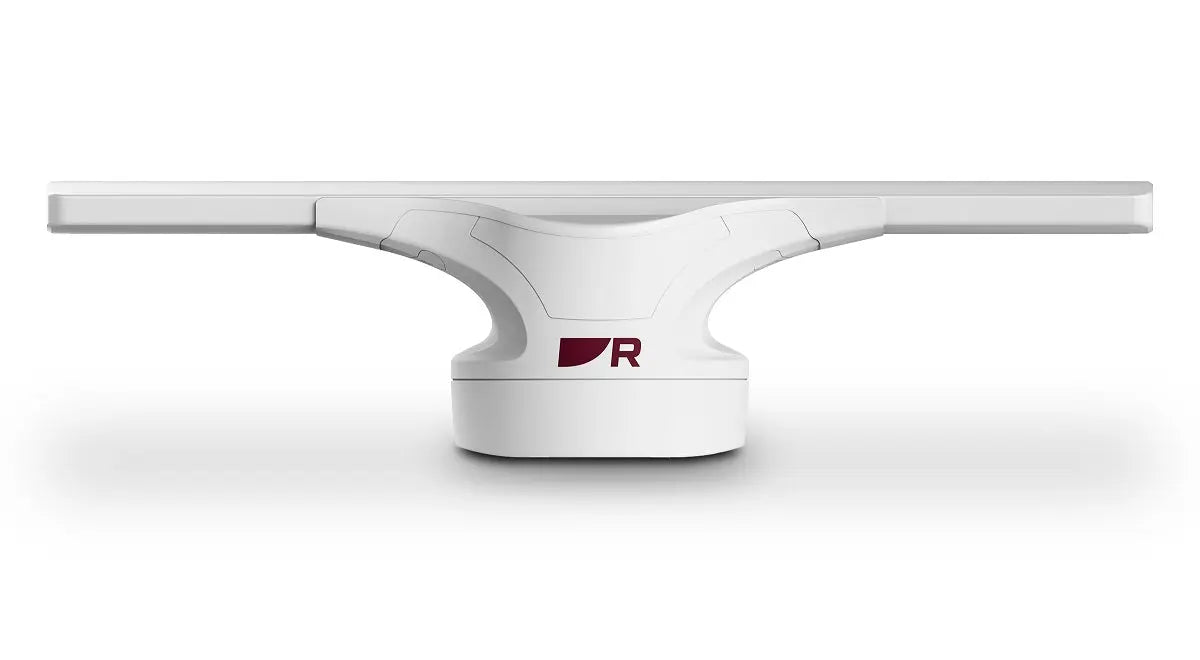

Raymarine 55 Watt Cyclone With 4ft Antenna 15m Cables

Raymarine 55 Watt Cyclone: Superior Marine Communication Solution

Raymarine 55 Watt Cyclone With 4ft Antenna 15m Cables

Raymarine 55 Watt Cyclone Radar with 4 feet Antenna

Model: T70492

• Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar
• At 13.1 inches (335 mm) tall, Cyclone's lower profile allows greater flexibility of boat architecture and more adaptable installation options.
• Innovative pedestal design conceals cable connections for a cleaner installation
• Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
• Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety.
• Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same
  advanced ARPA technology trusted by the United States Coast Guard.
• RangeFusionTM technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
• Performance tuned for locating sea birds
• Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest
conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusionTM technology and high speed 60 rpm imaging.

Specifications

Supply voltage (Using VCM100)Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc /

Maximum: 31.2 V dc

Power consumption (typical)
70 Watts

Power consumption (max)
170 Watts

Power consumption (standby)
28 Watts

Maximum range scale
72 nm

Boot up time
40 seconds

Standby to transmit
less than 5 seconds

Waterproof rating
IPX6

Operating temperature range
-25 degC to +55 degC (-13 degF to 131 degF)

Humidity
Up to 93% at 40 degC (104 degF)

Maximum wind speed
100 Kts

Power connection
1x Power connector

Data connection
1x RayNet connector

Transmitter frequency
9370, 9400, 9430 MHz (User Selectable)

Peak power output
55 Watts

Receiver characteristic
Linear

Receiver noise
Less than 5 dB

Pedestal

Dimensions
388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)

Weight
16 Kg

Antenna

Beamwidth (vertical)
25 degree

Beamwidth (horizontal)
1.99 degree

Polarization
Horizontal

Rotation speed
12, 24, 36, 48, 60 rpm

Length
1336 mm / 52.59 in

Weight
9 Kg / 19.84 lb

What's in the Box:

• E70620 55 watt pedestal
• E70629 4 feet Antenna
• A80653 15m Power cable
• A8058 15m Data Cable

Powerful 55 Watt VHF Transmission for Clear Communication

The Raymarine 55 Watt Cyclone is designed to deliver strong and reliable VHF radio communication for marine environments. With a powerful 55-watt transmitter, this radio ensures long-range connectivity, essential for safety and coordination on the water. Whether you're navigating coastal waters or open seas, Raymarine's trusted technology guarantees clear audio reception, reducing signal dropouts and interference. Its robust build and high power output make it ideal for commercial vessels, recreational boats, and professional marine use, providing confidence during critical communication moments.

Durable 4ft Antenna and Included 15m Cables for Easy Installation

This package includes a 4-foot antenna specially designed to withstand harsh marine conditions such as salt spray and strong winds. The antenna is optimized for maximum reception sensitivity, improving signal quality and transmission range. Alongside the antenna, 15 meters of marine-grade cables are provided to simplify installation and ensure flexible placement on any vessel. This combination allows for seamless setup, making it convenient for a wide range of boat sizes and types. The high-quality materials promise long-lasting performance in demanding environments.

Advanced Features and User-Friendly Controls

The Raymarine 55 Watt Cyclone radio is equipped with user-friendly controls and advanced features that enhance your marine communication experience. It includes clear channel scanning, weather alert reception, and noise reduction technology, optimizing radio clarity and usefulness during critical moments. Easy-to-navigate controls enable quick channel switching and volume adjustment, even in rough seas. Additionally, the compact design fits easily into your boat's dashboard or console, saving space while maintaining full functionality. This product blends innovation and reliability to keep you connected at all times.
