Raymarine 55 Watt Cyclone With 6ft Antenna 15m Cables

Explore the Features of the Raymarine 55 Watt Cyclone With 6ft Antenna and 15m Cables

Raymarine 55 Watt Cyclone With 6ft Antenna 15m Cables

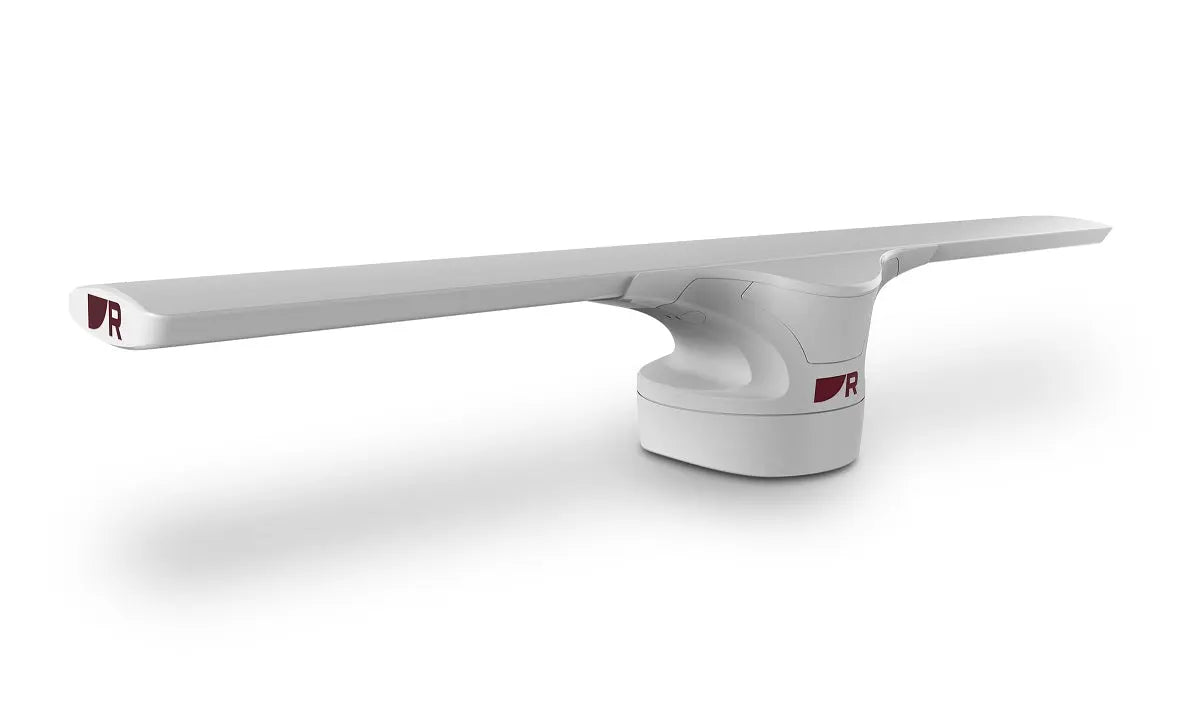

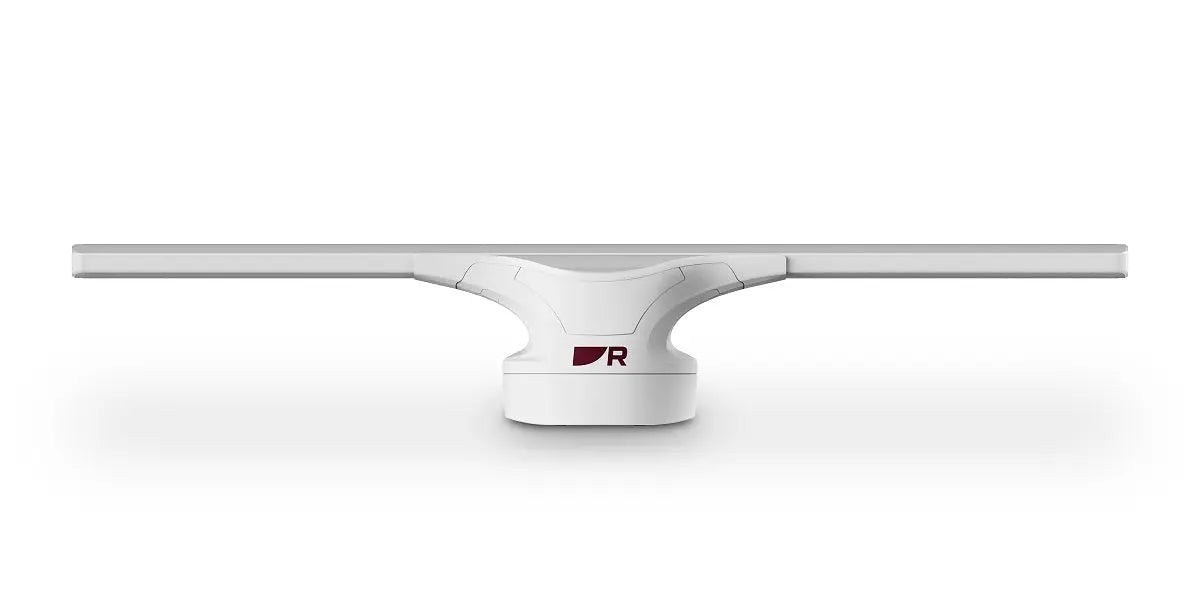

Raymarine 55 Watt Cyclone Radar with 6 feet Antenna

Model: T70493

• Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar
• At 13.1 inches (335 mm) tall, Cyclone's lower profile allows greater flexibility of boat architecture and more adaptable installation options.
• Innovative pedestal design conceals cable connections for a cleaner installation
• Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
• Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety.
• Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same
  advanced ARPA technology trusted by the United States Coast Guard.
• RangeFusionTM technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
• Performance tuned for locating sea birds
• Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state openarray radars give mariners the confidence to tackle the harshest
conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusionTM technology and high speed 60 rpm imaging.

Specifications

Supply voltage (Using VCM100)Nominal: 12 V dc or 24 V dc / Minimum: 10.2 V dc /

Maximum: 31.2 V dc

Power consumption (typical)
70 Watts

Power consumption (max)
170 Watts

Power consumption (standby)
28 Watts

Maximum range scale
72 nm

Boot up time
40 seconds

Standby to transmit
less than 5 seconds

Waterproof rating
IPX6

Operating temperature range
-25 degC to +55 degC (-13 degF to 131 degF)

Humidity
Up to 93% at 40 degC (104 degF)

Maximum wind speed
100 Kts

Power connection
1x Power connector

Data connection
1x RayNet connector

Transmitter frequency
9370, 9400, 9430 MHz (User Selectable)

Peak power output
55 Watts

Receiver characteristic
Linear

Receiver noise
Less than 5 dB

Pedestal

Dimensions
388 mm x 360 mm x 335 mm / 15.27 in x 14.17 in x 13.18 in (to the top of the antenna)

Weight
16 Kg

Antenna

Beamwidth (vertical)
25 degree

Beamwidth (horizontal)
1.32 degree

Polarization
Horizontal

Rotation speed
12, 24, 36, 48, 60 rpm

Length
1945 mm / 76.57 in

Weight
12 Kg / 26.45 lb

What's in the Box:

• E70620 55 watt pedestal
• E70630 6 feet Antenna
• A80653 15m Power cable
• A8058 15m Data Cable

High-Performance Raymarine 55 Watt Cyclone Power Output

The Raymarine 55 Watt Cyclone is engineered to deliver outstanding power output that ensures clear and strong marine communication even in challenging environments. With 55 watts of transmission power, it provides reliable signal strength ideal for both recreational and professional marine use. This increased power output enhances connectivity over long distances, reducing the risk of signal drops. Compatible with a variety of Raymarine systems, the Cyclone offers robust performance to meet demanding communication standards at sea.

Durable 6ft Antenna Designed for Marine Conditions

The included 6ft antenna with the Raymarine 55 Watt Cyclone is built to withstand harsh marine environments. Its sturdy construction resists salt, water, and UV exposure, ensuring longevity and consistent performance. This antenna length balances enhanced signal reception with ease of installation on a wide range of vessels. Whether you’re navigating coastal waters or open sea, the 6ft antenna provides stable reception necessary for effective communication and navigation.

Convenient 15m Cable Length for Flexible Installation

The package features 15 meters of high-quality cable, allowing flexible installation options on various types of boats. The extended cable length ensures that the antenna can be mounted at an optimal location, free from interference and obstructions. This flexibility improves overall signal clarity and system efficiency. The cables are robust and designed specifically to maintain signal integrity over long runs, making them a perfect complement to the Raymarine Cyclone antenna system.
