Raymarine AIS700 Class B AIS With Splitter

Raymarine AIS700 Class B AIS With Splitter

Raymarine AIS700 Class B AIS with Splitter

Model: E70476

• Full transmit and receive AIS for enhanced situational awareness and safety


• Latest SO-TDMA networking for longer range and faster performance


• Built-in antenna splitter simplifies installation with existing VHF radio antenna


• NMEA2000, NMEA0183, PC and SeaTalkng Compatible


• Software or hardware switchable Silent Mode for enhanced security when needed

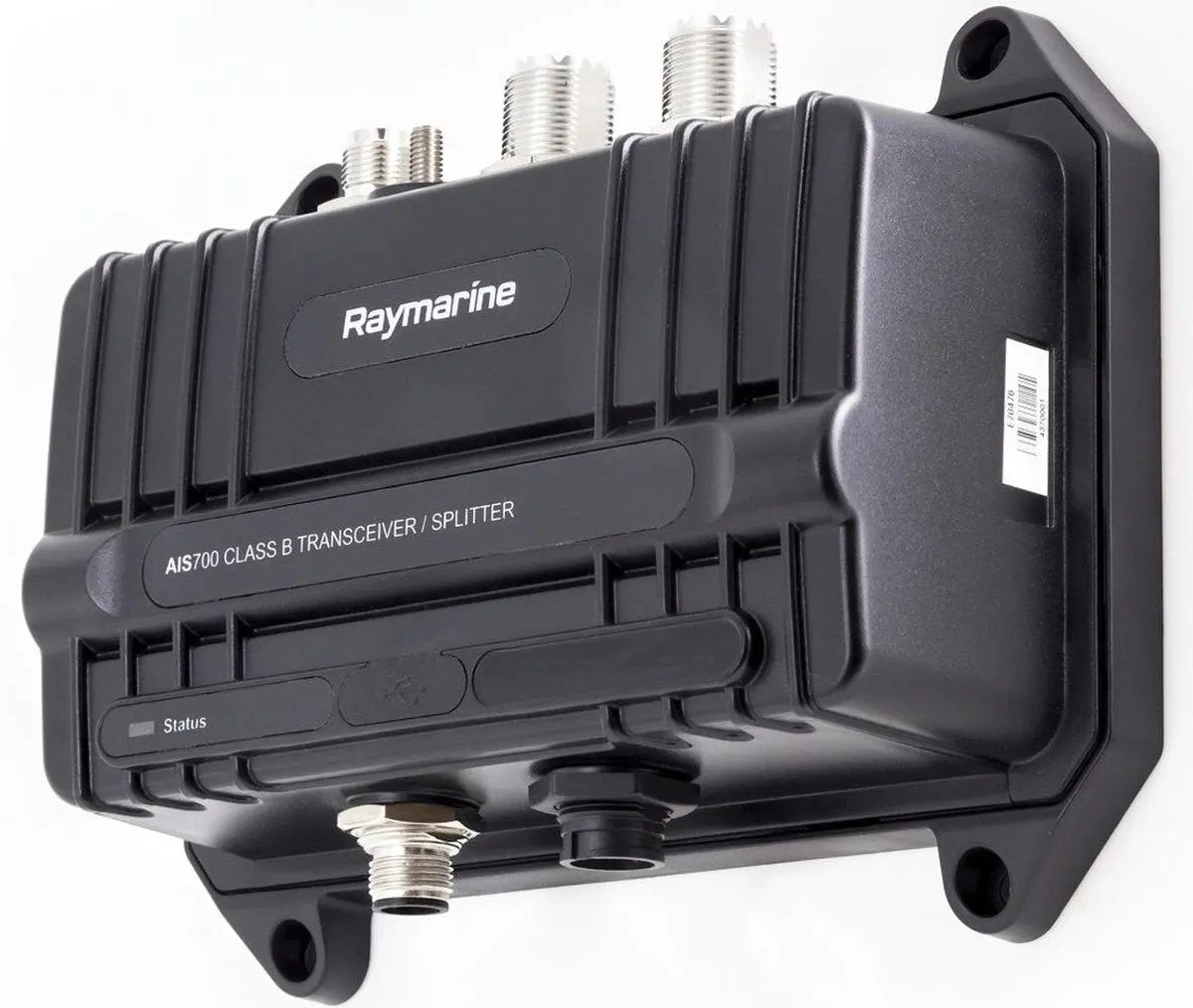

The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.

Specifications

Evironmental

Operating temperature
-15°C to +55°C

Storage temperature
-20°C to +75°C

Water ingress
IPX6 and IPX7

Humidity
Up to 93% @ 40°C

Power

Power Supply
12v and 24 nominal

Power Consumption
<3W

<3W
3A

Load Equivalency Number
1 LEN

RF Specifications

DSC Receiver
Implemented by time sharing with one TDMA receiver

Receiver 1 band
156.025 MHz to 162.025 MHz (in 25KHz steps)

Receiver 2 band
156.025 MHz to 162.025 MHz (in 25KHz steps)

Transmitter band
156.025 MHz to 162.025 MHz (in 25KHz steps)

Transmitter specification
To meet IEC 62287-2 relevant sections

Receiver specification
To meet IEC 62287-2 relevant sections

Transceiver specification
To meet IEC 62287-2 relevant sections

GPS receiver
u-blox MAX-M8W

GPS receiver channels
72 channels

GPS Cold start acquisition time
26s nominal

Positional source
GPS & GLONASS

AIS performance
5W SOTDMA

External Connection

VHF antenna connector type
SO-239 co-axial

VHF radio connector type
SO-239 co-axial

GNSS antenna connector
50 Ohm TNC co-axial

NMEA2000
DeviceNet male

USB
Micro-B

External interface isolation
NMEA0183 and NMEA 2000 interfaces to incorporate galvanic isolation from power supply as required by the relevant interface specification.

NMEA0183 interface 1 (MFD connection)
NMEA 0183 HS (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate. Input to MFD from AIS.

NMEA0183 interface 2 (NMEA0183 instrument connection)
NMEA 0183 (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). 4 wire interface (differential signalling) Configurable baud rate

USB interface (PC connection)
Protocol NMEA 0183 HS (IEC 61162-1) compliant, bi-directional USB port, 38.4 kBaud

What's in the Box:

• AIS700 Class B AIS Transceiver with built-in VHF antenna splitter


• GNSS (GPS) Antenna


• Power / data cable 2m (6.56 ft)


• VHF Radio cable 1m (3.28 ft)


• DeviceNet to SeaTalkng® adaptor cable 1m (3.28 ft)


• GNSS antenna gasket


• GNSS antenna pole mount


• Unit fixings (4 x No.8x19 self tapping screws)


• M5 nut and washer (grounding)


• Documentation kit


• GNSS antenna fixings (3 x M3x40 stud and thumb nut)


• Software CD
