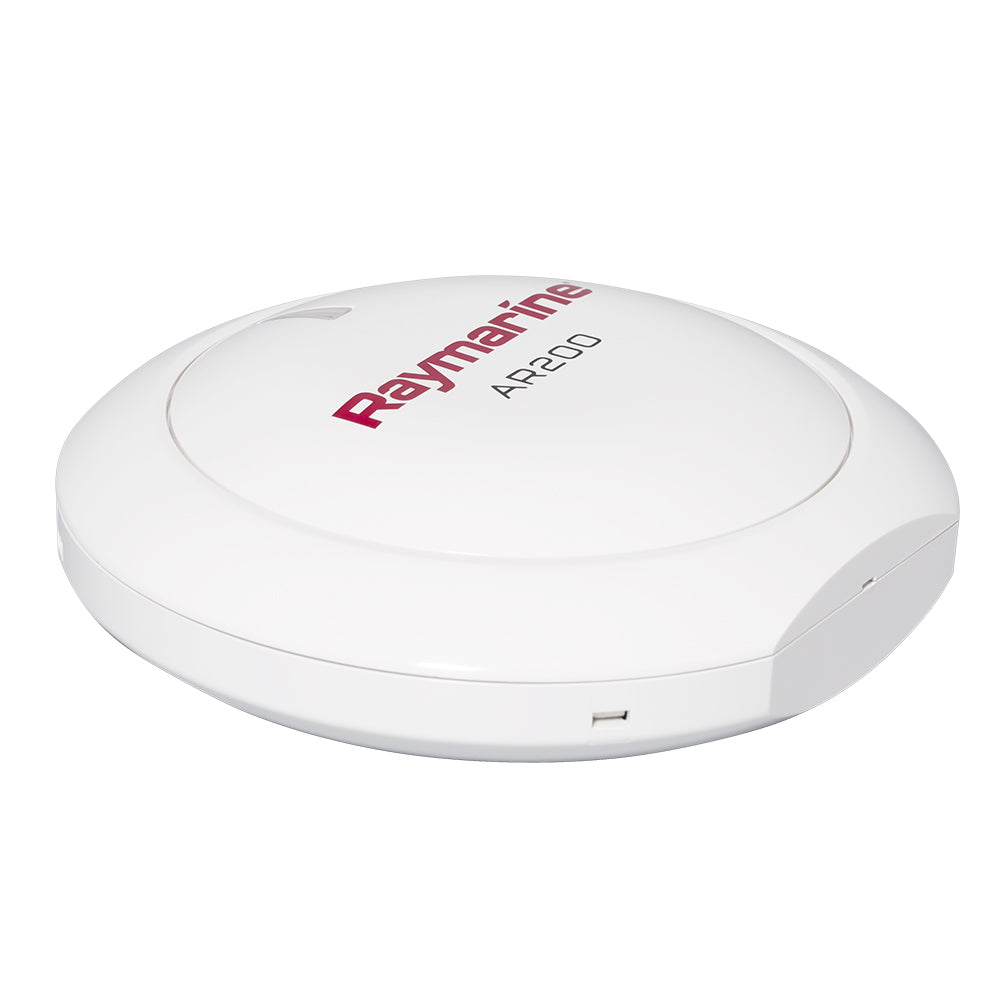

Raymarine AR200 IP Camera Stabilization Module with Integrated GNSS and AHRS Sensor

AR200 IP Camera Stabilization Module

The AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite Systems (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor. The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs. When combined with a compatible IP camera the AR200 enables use of the ClearCruise Augmented Reality features available on your Axiom MFD.

Features:

• 9-axis AHRS (attitude and heading reference system) sensor
• 28-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
• When combined with a compatible IP camera the AR200 enables the use of ClearCruise Augmented reality features available on Axiom multifunction displays
• NMEA 2000 compliant
• IPX6 / IPX7 waterproof rating

In the Box:

• Mounting trim (top)
• Small sealing ring
• AR200
• x3 large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 Stainless steel)
• Mounting tray (bottom)
• x4 small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel)
• Bulkhead (wall) bracket
• Large sealing ring
• Documentation
• 6m (19.7ft) SeaTalkNG white cable

The Raymarine AR200 IP Camera Stabilization Module provides advanced positioning and orientation data for enhanced marine navigation and augmented reality applications. Featuring a powerful 9-axis Attitude and Heading Reference System (AHRS) and a 28-channel GPS receiver, the AR200 delivers rapid 10Hz position updates essential for real-time vessel tracking and navigation. Its satellite differential GPS compatibility, along with SBAS support including WASS, EGNOS, MSAS, and GAGAN, ensures precise location data even in challenging environments. When paired with a compatible IP camera and the Raymarine Axiom MFD, the AR200 unlocks ClearCruise augmented reality features, offering immersive navigation assistance and situational awareness. The device is NMEA 2000 compliant, making integration straightforward with existing marine electronics systems, and boasts an IPX6/IPX7 waterproof rating suitable for demanding marine conditions. The kit includes mounting hardware, sealing rings, and a 19.7-foot SeaTalkNG cable, facilitating flexible installation options for various vessel types. This module is ideal for boaters seeking a reliable, feature-rich solution to improve navigation accuracy and safety through augmented reality technology. Designed and manufactured by Raymarine, the AR200 enhances your marine electronics setup with precision positioning and augmented reality capabilities, seamlessly integrating into your existing system for an enriched navigational experience.

Features:

• 9-axis AHRS (attitude and heading reference system) sensor for precise orientation data

• 28-channel GPS receiver for accurate positioning

• Fast 10Hz position updates for real-time navigation

• Satellite differential GPS-compatible with SBAS support including WASS, EGNOS, MSAS, and GAGAN

• Enables ClearCruise augmented reality features with compatible IP camera and Axiom MFD

• NMEA 2000 compliant for seamless integration with marine electronics

• IPX6 / IPX7 waterproof rating for durability in harsh marine environments
