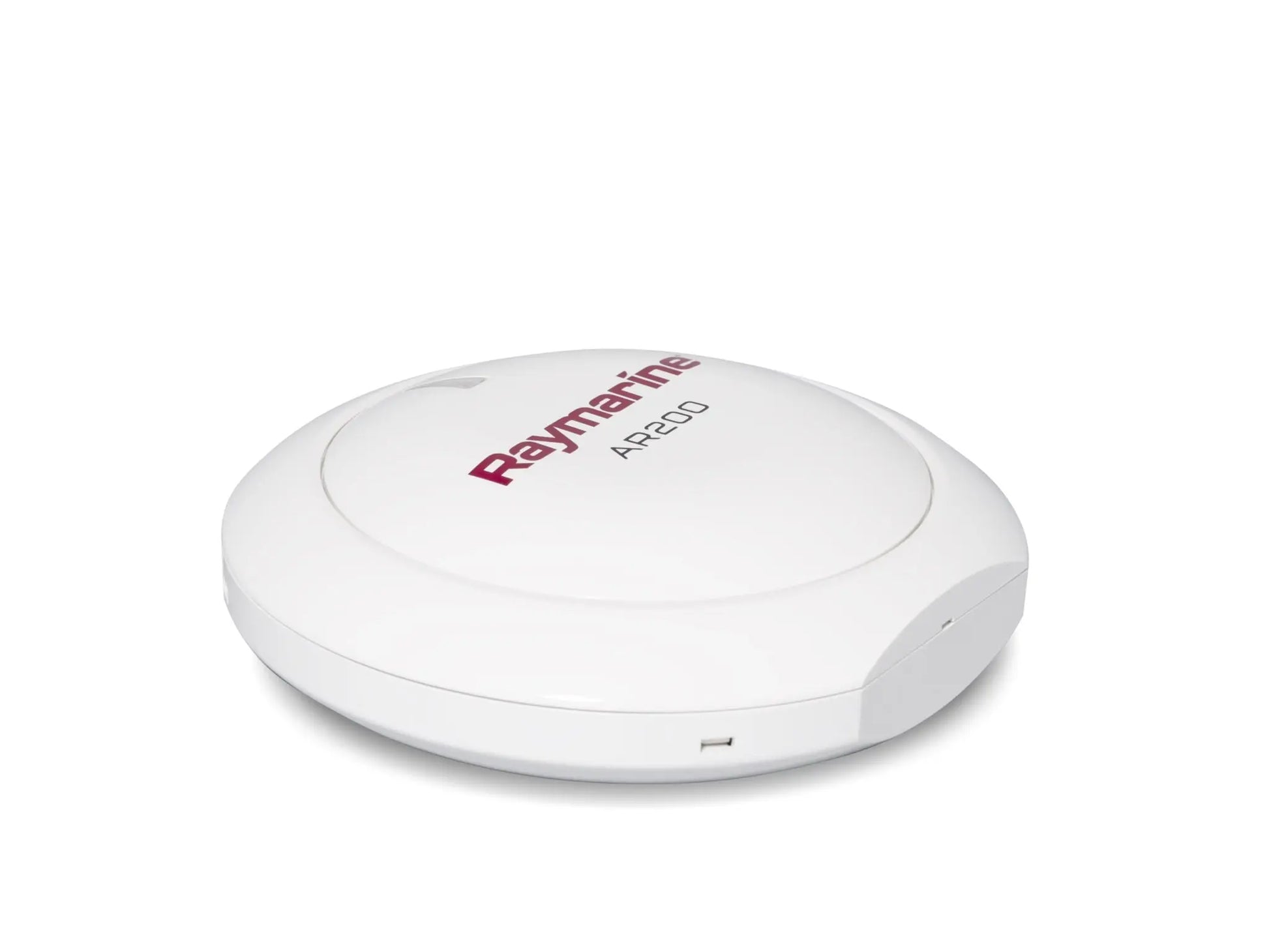

Raymarine AR200 Stabilization

Module for Augmented Reality

Model: E70537

• 9-axis AHRS (attitude and heading reference system) sensor


• 28-channel GPS receiver


• Fast 10Hz position updates


• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support


• When combined with a compatible IP camera the AR200 enables the use of ClearCruise Augmented reality features available on Axiom multifunction displays


• NMEA 2000 compliant


• IPX6 / IPX7 waterproof rating

The AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite Systems (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor. The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs. When combined with a compatible IP camera the AR200 enables use of the ClearCruise Augmented Reality features available on your Axiom MFD.

Specifications

POWER

Nominal supply voltage
12 V dc (Supplied by the SeaTalkng® network.)

Operating voltage range
9 V dc to 16 V dc (protected up to 32 V dc)

Power consumption
30 mA Max.

LEN (Load Equivalency Rating)
1

ENVIRONMENTAL

Operating temperature range
-25 C to +55 C (-13 F to 131 F)

Storage temperature range
-25 C to +70 C (-13 F to 158 F)

Relative humidity
93%

Water Ingress Protection
IPx6 and IPx7

CONFORMANCE

EMC Directive
2014/30/EU

Australia and New Zealand C-Tick compliance
Level 2

RoHS Directive
2011/65/EU

WEEE Directive
2012/19/EU

GNSS RECEIVER

Signal acquisition
Automatic

Channels
Simultaneously track up to 28 satellites.

Operating frequency
1574 MHz to 1605 MHz

Update rate
10Hz

Sensitivity
Cold start = -147 dBm Re-acquisition = -160 dBm Tracking = -164 dBm

GNSS compatibility
GPS GLONASS Galileo ready Beidou ready

Satellite Differential Type (SBAS)
WAAS (United States) EGNOS (Europe) MSAS (Japan) GAGAN (India) QZSS ready (Japan)

Differential acquisition
Automatic

Position accuracy without SBAS (95%)
< 15m

Position accuracy with SBAS (95%)
<5m

Speed accuracy (95%)
<0.3m

Time to first fix from cold start
<2 minutes (<60 seconds typical)

Time to first fix from hot start
<45 seconds

Geodetic Datum
WGS—84

Antenna
Internal

AHRS

AHRS
3—Axis digital accelerometer 3—Axis digital compass 3—Axis MEMS Gyro digital angular rate sensor

Magnetic compass accuracy
Static = 1° RMS Dynamic = 3° RMS

Pitch, Roll and Yaw accuracy
1°

Heading, Pitch, Roll and Rate of Turn update rate
10Hz

What's in the Box:

• Mounting trim (top)


• Small sealing ring


• AR200


• x3 large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 Stainless steel)


• Mounting tray (bottom)


• x4 small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel)


• Bulkhead (wall) bracket


• Large sealing ring


• Documentation


• 6m (19.7ft) SeaTalkNG white cable
