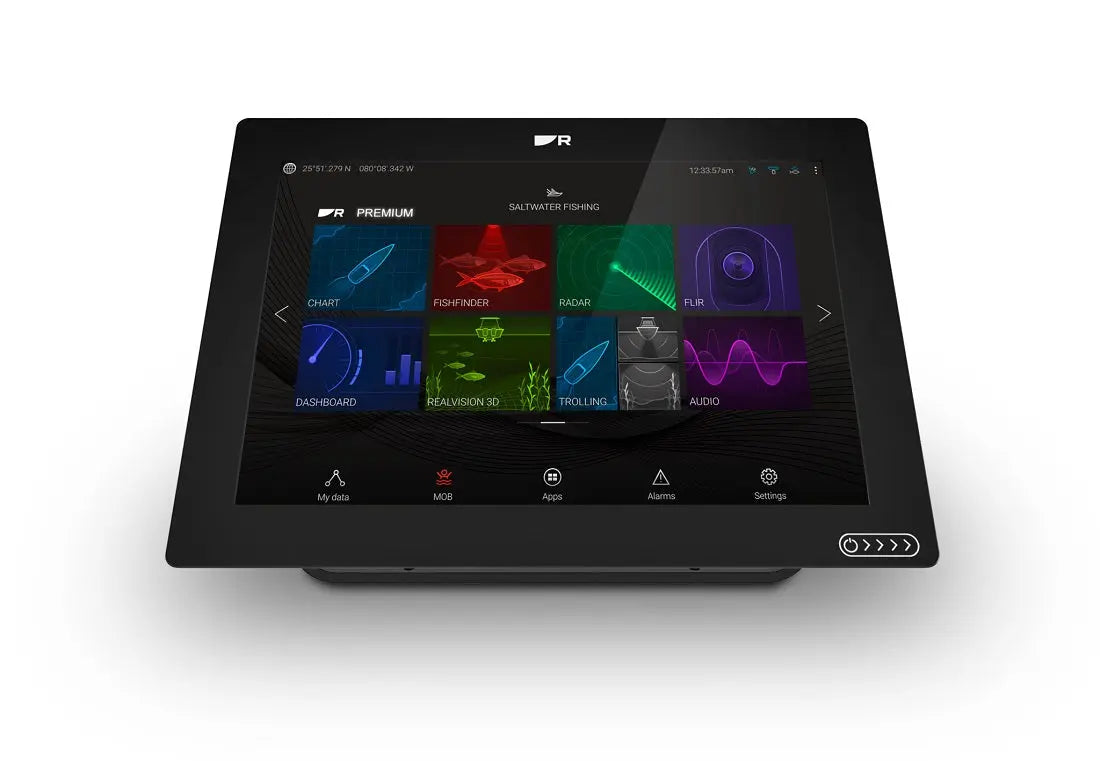

Raymarine Axiom+ 12 12in Chartplotter No Chart

Explore the Advanced Features of the Raymarine Axiom+ 12 Chartplotter

Raymarine Axiom+ 12 12in Chartplotter No Chart

Raymarine Axiom+ 12 12" Muilti-Function Display

Model: E70638

• Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.
• Powerful quad-core processor, plus increased onboard storage for personal data and apps.
• Smart and intuitive LightHouse 3 OS makes navigating easy.
• ClearCruise Augmented Reality-capable for smarter navigation decisions.
• Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
• IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
• Network with multiple Axiom displays, radars, sonar, and more.
• Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.

The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision 3D sonar.

New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

Specifications

General

Display Size
12.1 inch High Density IPS

Display Resolution
1280 x 720 (WXGA)

Display Type
Multitouch with HydroTough rugged hydrophobic coating

Brightness
1,800 nits

Viewing Angle
88° Top, Bottom, Left, Right

Dimensions W x H x D (Excluding trunnion and cables)
12.36 x 8.54 x 3.0in

Mounting Options
Surface, Flush, Trunnion, (Front installation bracket available)

Waterproof Rating
IPX6 / IPX7

Operating Temperature Range
-25°C to +55°C (-13°F to +131°F)

Storage Temperature Range
-30°C to +70°C (-22°F to +158°F)

Power

Voltage
12V DC (8V to 16V DC)

Power Consumption (Full brightness)
15.48 Watts.

Sensors

GNSS / GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel
*Future software update required

Sonar Type (Built-in)
None

Sonar Connections
NA

Sonar Depth
NA

External Sonar Option
Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet

Radar
Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars

AIS
Yes - NMEA2000 compatible

Autopilot Control
Yes - Evolution Autopilot

Thermal Night Vision
Yes FLIR AX8, M232, M300 Series, M400, M500

Video / Camera
Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)

Weather
GRIB View - Free GRIB viewer and Theyr Ltd Subscription
SiriusXM - N. America Only

Audio
NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio

Digital Switching
Yes - Empirbus & C-Zone compatible

Remote Control
Yes Optional RMK-10 (A80438)

Networking

Ethernet
1 x 10/100 Mbit/s Network (RayNet)

NMEA0183
No

NMEA2000
NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter

SeaTalkNG
Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)

USB
1 x USB microAB

Wi-Fi
WiFi - 802.11 a/b/g/n

BlueTooth
Bluetooth v4.0

Navigation

Cartography
Lighthouse Charts, Navionics, and C-MAP compatible

Waypoint/Routes/Tracks (Wpts/Rts/Trk)
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

Memory

Internal Memory
16 GB Solid State

External Memory
1x MicroSD Card Slot

Languages
24

Conformances
NMEA 2000 certification
Europe: 1999/5/EC
Australia and New Zealand: C-Tick, Compliance Level 2
FCC 47CFR part 15
Industry Canada RSS210

What's in the Box:

• Multifunction Display
• Trunnion bracket
• Trunnion knobs x 2
• Suncover — Trunnion mount
• Panel mount gasket for surface/flush mounting
• M5x58 Threaded studs x 4
• M5 Thumb nuts x 4
• Documentation pack
• DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)
• Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
• Rear mounting brackets

Innovative Display Technology for Clear Navigation

The Raymarine Axiom+ 12 features a brilliant 12-inch touchscreen designed for optimal visibility in all lighting conditions. Its high-resolution display ensures sharp, crisp images that help captains navigate safely and confidently. The widescreen format provides an expansive view of charts and sonar, allowing for easier route planning and situational awareness. With touchscreen controls, the device offers intuitive operation, reducing the learning curve and making complex marine navigation effortless even for beginners.

Powerful Processing and Seamless Connectivity

This Raymarine chartplotter is powered by a quad-core processor that delivers fast and smooth performance without lag. It supports multiple connectivity options, including Wi-Fi, Bluetooth, and Ethernet, enabling integration with other marine electronics such as radar, sonar, and autopilot systems. This connectivity enhances the capability of the device, allowing you to receive real-time data, update charts wirelessly, and control multiple functions from a single interface, ensuring a streamlined boating experience.

Customizable and Expandable Navigation System

The Raymarine Axiom+ 12 is designed to grow with your needs. While it comes without preloaded charts, it supports various chart formats including Navionics and LightHouse maps. Users can easily update and customize their navigation system with charts that suit their waters and preferences. This chartplotter also supports additional modules for sonar and radar, making it a versatile hub for all your marine electronics. Whether you’re cruising or fishing, the Axiom+ 12 delivers the flexibility to upgrade your system effortlessly.
