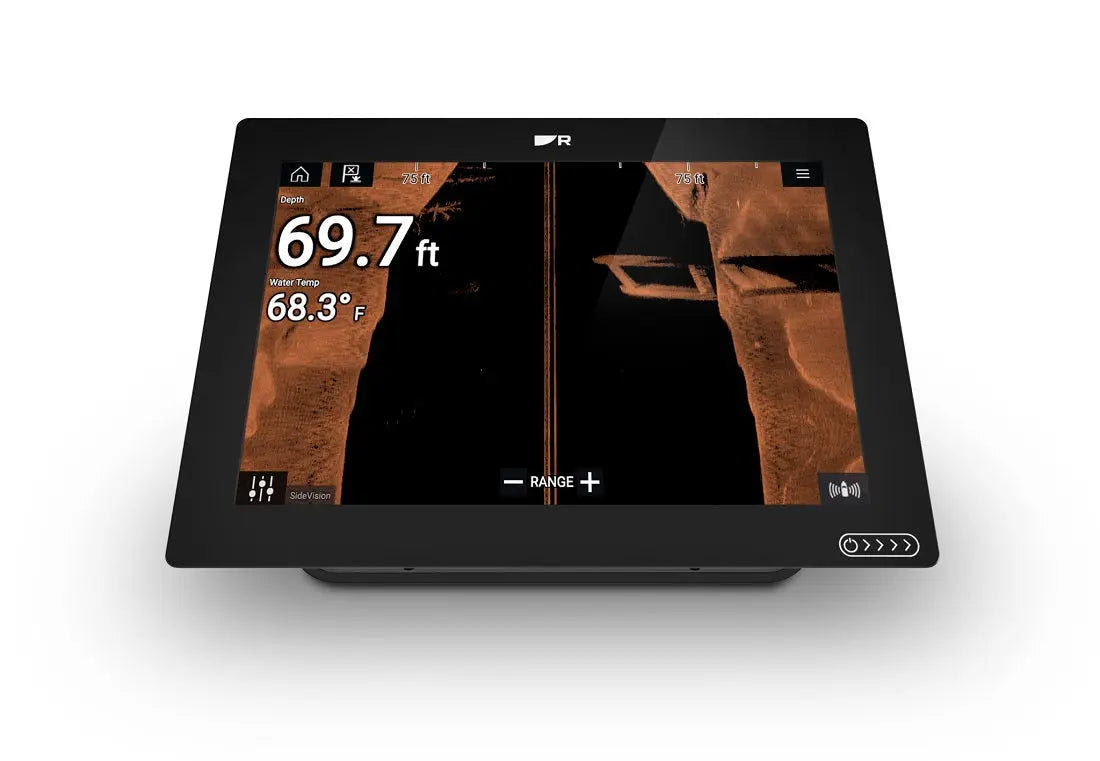

Raymarine Axiom+ 12RV 12in MFD No Transducer No Chart

Discover the Power of Raymarine Axiom+ 12RV 12in MFD

Raymarine Axiom+ 12RV 12in MFD No Transducer No Chart

Raymarine Axiom+ 12 12" Muilti-Function Display with RealVison Sonar, No Transducer

Model: E70639

• Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.
• Powerful quad-core processor, plus increased onboard storage for personal data and apps.
• Smart and intuitive LightHouse 3 OS makes navigating easy.
• ClearCruise Augmented Reality-capable for smarter navigation decisions.
• Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
• IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
• Network with multiple Axiom displays, radars, sonar, and more.
• Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.

The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision 3D sonar.

New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

Specifications

General

Display Size
12.1 inch High Density IPS

Display Resolution
1280 x 720 (WXGA)

Display Type
Multitouch with HydroTough rugged hydrophobic coating

Brightness
1,800 nits

Viewing Angle
88° Top, Bottom, Left, Right

Dimensions W x H x D (Excluding trunnion and cables)
12.36 x 8.54 x 3.0in

Mounting Options
Surface, Flush, Trunnion, (Front installation bracket available)

Waterproof Rating
IPX6 / IPX7

Operating Temperature Range
-25°C to +55°C (-13°F to +131°F)

Storage Temperature Range
-30°C to +70°C (-22°F to +158°F)

Power

Voltage
12V DC (8V to 16V DC)

Power Consumption (Full brightness)
19.96 Watts

Sensors

GNSS / GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel
*Future software update required

Sonar Type (Built-in)
RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D

Sonar Connections
25pin RealVision type connector

Sonar Depth
High CHIRP Sonar = 900 feet (274m)
DownVision = 600 feet (183m)
SideVision = 300 feet (91m)
RealVision 3D = 300 feet (91m)

External Sonar Option
Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet

Radar
Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars

AIS
Yes - NMEA2000 compatible

Autopilot Control
Yes - Evolution Autopilot

Thermal Night Vision
Yes FLIR AX8, M232, M300 Series, M400, M500

Video / Camera
Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)

Weather
GRIB View - Free GRIB viewer and Theyr Ltd Subscription
SiriusXM - N. America Only

Audio
NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio

Digital Switching
Yes - Empirbus & C-Zone compatible

Remote Control
Yes Optional RMK-10 (A80438)

Networking

Ethernet
1 x 10/100 Mbit/s Network (RayNet)

NMEA0183
No

NMEA2000
NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter

SeaTalkNG
Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)

USB
1 x USB microAB

Wi-Fi
WiFi - 802.11 a/b/g/n

BlueTooth
Bluetooth v4.0

Navigation

Cartography
Lighthouse Charts, Navionics, and C-MAP compatible

Waypoint/Routes/Tracks (Wpts/Rts/Trk)
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

Memory

Internal Memory
16 GB Solid State

External Memory
1x MicroSD Card Slot

Languages
24

Conformances
NMEA 2000 certification
Europe: 1999/5/EC
Australia and New Zealand: C-Tick, Compliance Level 2
FCC 47CFR part 15
Industry Canada RSS210

What's in the Box:

• Multifunction Display
• Trunnion bracket
• Trunnion knobs x 2
• Suncover — Trunnion mount
• Panel mount gasket for surface/flush mounting
• M5x58 Threaded studs x 4
• M5 Thumb nuts x 4
• Documentation pack
• DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)
• Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
• Rear mounting brackets

Innovative Display Technology for Marine Navigation

The Raymarine Axiom+ 12RV 12in MFD features a brilliant 12-inch touchscreen display that offers clear and vibrant visuals even under bright sunlight. Designed with advanced processing power, it ensures smooth operation and quick response to inputs, making navigation intuitive and hassle-free. The large size allows for easy viewing of charts and sensor data, enhancing situational awareness on the water. Without the transducer and chart, this display offers flexibility for custom installs or upgrades.

Seamless Integration and Expandability

This Raymarine display integrates effortlessly with other onboard marine electronics and sensors, giving boaters a customizable platform. Despite being sold without a transducer or chart, the Axiom+ 12RV supports a wide range of add-ons like radar, sonar modules, and autopilot controls. Its compatibility with Raymarine’s Lighthouse operating system ensures smooth connectivity, allowing users to build a tailored marine navigation system that evolves with their needs.

Durability and User-Friendly Design

Built to withstand harsh marine environments, the Raymarine Axiom+ 12RV 12in MFD is rugged and water-resistant, delivering reliable performance on any voyage. The user interface is designed with simplicity in mind, enabling quick access to important features without distraction. Lighting adjustments optimize screen visibility during night operations, and the compact design saves valuable cockpit space. This device is especially suited for serious boaters seeking a durable and adaptable multifunction display.
