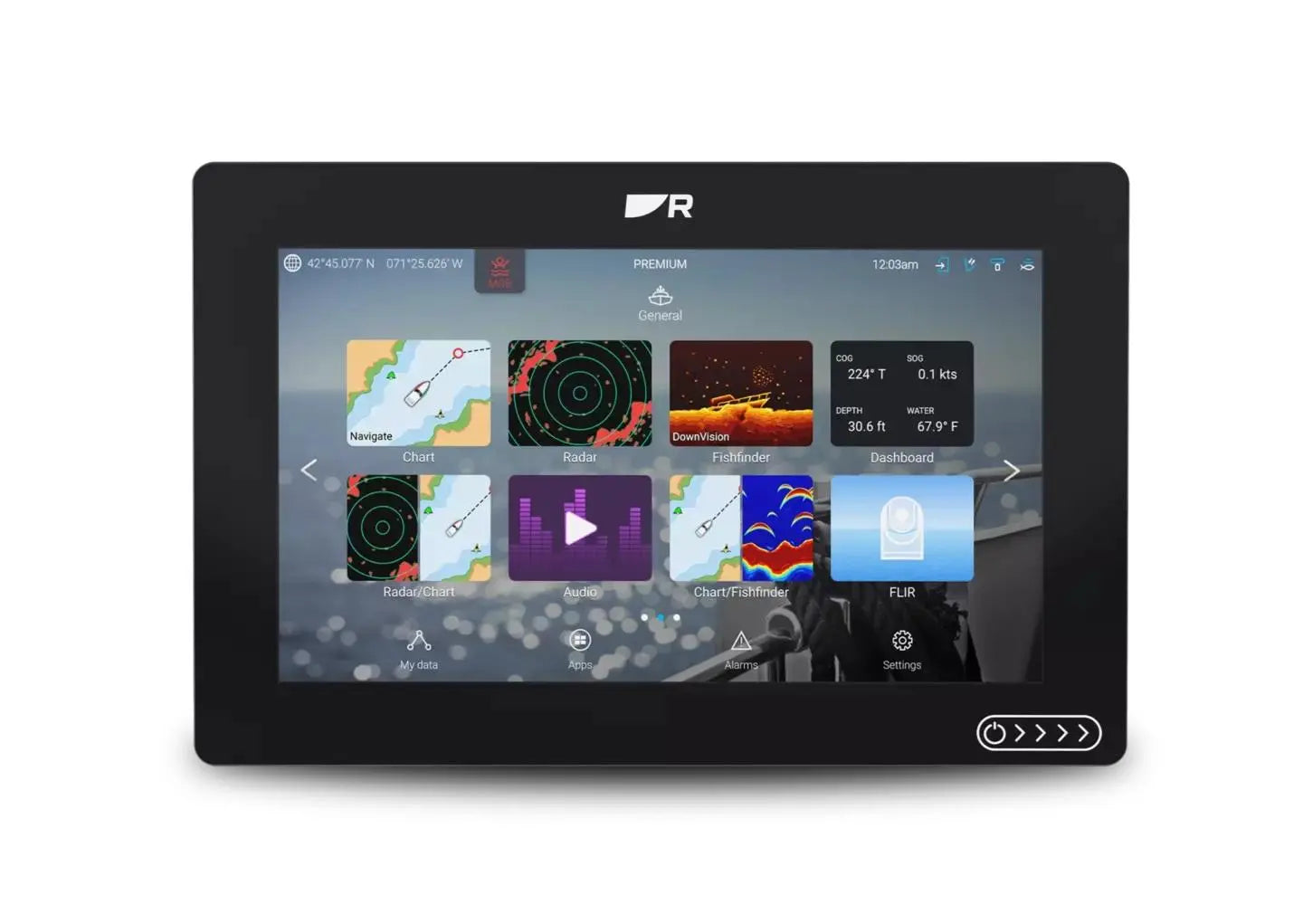

Raymarine Axiom 2 7-Inch Chartplotter with Built-In Sonar and Navigation Features (Part E70720)

The Raymarine Axiom 2 7-inch Chartplotter (Model E70720) offers a comprehensive marine navigation solution designed for both speed and expansion. Equipped with a powerful 6-core processor, this display renders charts up to 30% faster, providing smoother panning and faster redraws, especially when bundled with LightHouse Charts GEN 2 for enhanced coverage. Its integrated Wi-Fi and Bluetooth enable seamless sharing of routes via the Orca mobile app, allowing users to identify starting points and destinations with advanced navigational algorithms that optimize your vessel's path. The system’s Ethernet connectivity via RayNet ensures rapid data transfer between multiple displays and sensors, resulting in improved radar, sonar, and video performance across your network. This flexibility makes the Axiom 2 ideal for confident navigation and system integration in demanding marine environments.
The device features a rugged IPX6 waterproof and HydroTough oleophobic touchscreen display, designed to withstand harsh weather conditions while maintaining clear visibility with 1800 nits brightness and IPS panel technology. Its built-in GPS, compatible with GPS, GLONASS, and Beidou satellite systems, provides accurate positioning with a refresh rate of 10 Hz, ensuring real-time updates and reliable navigation data. Advanced sonar capabilities include built-in RealVision 3D, SideVision, and DownVision, with 600W CHIRP sonar for deep underwater imaging, enabling anglers and sailors to spot fish faster and understand underwater structures instantly. The system supports multiple chart formats, including Raymarine LightHouse Charts, Navionics, C-MAP, and others, with the capacity to store up to 10,000 waypoints and 250 routes, aiding in precise route planning and navigation.
Expand your vessel’s capabilities with integrated engine monitoring for leading engines such as Mercury, Yamaha, Suzuki, and more, allowing you to monitor performance, fuel levels, and propulsion data directly from the helm. The Axiom 2’s smart interface consolidates navigation, sonar, radar, video, and NMEA 2000 networks into a single, user-friendly display, simplifying operation and situational awareness. Its versatile mounting options include trunnion and surface/flush mounting, with accessories such as brackets, gaskets, and sun covers included for easy installation. With an internal 64 GB storage and external MicroSDXC slot, users can expand storage for charts and media. Designed for durability, the device operates efficiently within a temperature range of -25°C to +55°C and is rated IPx6/IPx7 for water resistance, making it suitable for all-weather use.
Whether you are navigating complex waterways, fishing, or sailing, the Raymarine Axiom 2 7-inch Chartplotter offers the features and performance needed for confident and efficient marine operation, now with enhanced connectivity, speed, and expandability for the future of boating technology.

Features:

• Gigabit RayNet Ethernet for faster networking between displays and sensors

• Engine Monitoring: Compatible with Mercury, Yamaha, Suzuki, and more

• Supports 30+ marine apps for lighting, audio, weather, and energy management

• All-Weather Performance: IPX6 waterproof construction and HydroTough display

• Route Planning with Orca Mobile App via Wi-Fi

• Advanced Sailing Tools: polar profiles, laylines, race timers, and tactical displays

• High Brightness IPS touchscreen with 1800 nits for visibility in all conditions

• Built-in GPS with WAAS, EGNOS, MSAS, GAGAN, QZSS support and 10 Hz update rate

• Integrated sonar including RealVision 3D, SideVision, DownVision, and 600W CHIRP

• Supports multiple chart formats and stores up to 10,000 waypoints and 250 routes

• Robust construction with comprehensive mounting options and accessories
