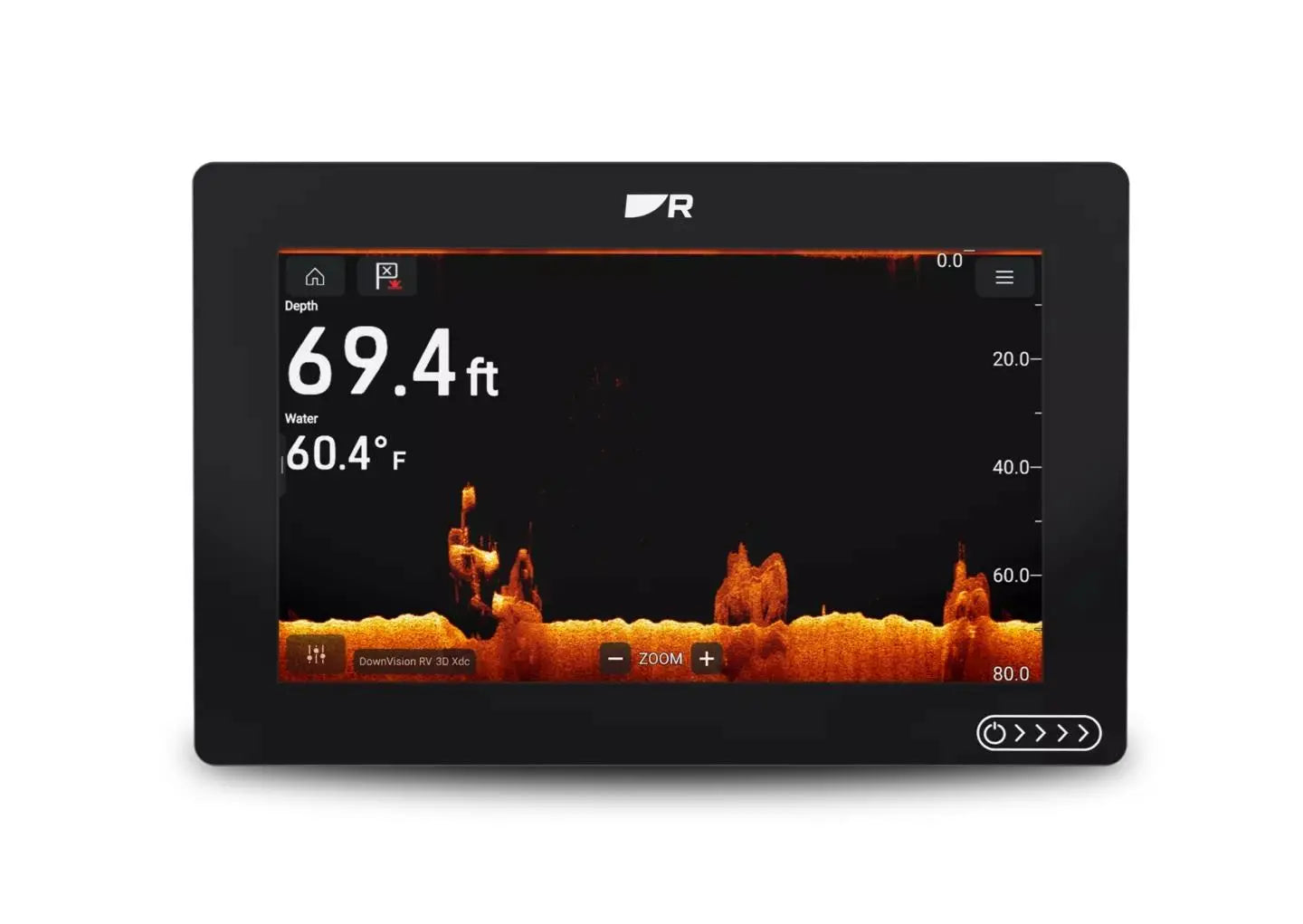

Raymarine Axiom 2 9RV 9-Inch Chartplotter with RealVision 3D Sonar - Model E70723

Raymarine Axiom 2 9 RV 9in Chartplotter with RealVision 3D Sonar

The Raymarine Axiom 2 9RV offers a powerful 9-inch display with integrated RealVision 3D sonar, providing detailed underwater imaging and navigation capabilities. Built with a rugged IPX6 waterproof design, this chartplotter ensures reliable operation in all weather conditions, making it ideal for serious marine enthusiasts. Its high-resolution widescreen HD display delivers bright visuals with 1500 nits, allowing easy viewing even in direct sunlight. The LightHouse operating system provides an intuitive interface for seamless control over navigation, sonar, radar, and multimedia features, simplifying complex tasks at the helm.
Connectivity is a key feature of the Axiom 2 9RV, with Gigabit RayNet Ethernet enabling faster data transfer between displays and sensors, ensuring smooth radar, sonar, and video performance. It supports extensive networking options, including Bluetooth V4.0, Wi-Fi 802.11/b/g/n, and NMEA 2000, facilitating integration with a wide range of marine systems. The device can connect to leading engines such as Mercury, Yamaha, and Suzuki, allowing you to monitor engine performance, fuel efficiency, and propulsion data directly from the helm.
This chartplotter offers versatile expansion capabilities, supporting over 30 marine apps for tasks including lighting control, audio management, energy monitoring, and weather updates. With built-in support for advanced sonar technologies like SideVision, DownVision, and 600W CHIRP sonar, users can scan wider areas, see deeper underwater structures, and identify fish faster. The system also includes features tailored for sailors, such as polar profiles, dynamic laylines, race timers, and tactical displays to optimize sailing performance.
Designed for durability and ease of installation, the Axiom 2 9RV can be surface or flush mounted, with accessory connections via USB Micro B, Ethernet, and MicroSDXC card slot for external storage. Its internal 64 GB storage supports extensive data and chart storage, while the internal ceramic GNSS antenna ensures precise positioning with WAAS, EGNOS, MSAS, and GAGAN support for accurate navigation worldwide. The device's advanced sonar, navigation, and multimedia capabilities make it a comprehensive solution for navigation, fishfinding, and system control on any vessel.
Included with the unit are a trunnion bracket, suncover, mounting hardware, documentation, and power/NMEA 2000 cables, providing everything needed for quick installation and setup. The Raymarine Axiom 2 9RV is the ultimate all-in-one marine chartplotter, combining speed, connectivity, and advanced features to enhance your boating experience.

Features:

• Built for Speed and Expansion: Gigabit RayNet Ethernet enables faster networking for smoother radar, sonar, and video performance.

• Engine Monitoring: Compatible with Mercury, Yamaha, Suzuki, and more for real-time engine performance and fuel data.

• Extensive Marine Apps: Access over 30 apps for lighting, audio, energy, and weather management, plus streaming entertainment options.

• All-Weather Durability: IPX6 waterproof rating and HydroTough display resist water and harsh conditions for reliable touchscreen control.

• Route Planning with Orca App: Share routes via Wi-Fi with the Orca mobile app, utilizing advanced navigational algorithms for optimal paths.

• Advanced Sailing Features: Polar profiles, dynamic laylines, race timers, and tactical displays to enhance sailing performance.

• Comprehensive Sonar Technology: Includes SideVision, DownVision, RealVision 3D, and 600W CHIRP sonar for detailed underwater imaging.

• High-Resolution Display: 9-inch widescreen HD with 1500 nits brightness ensures clear visibility in all lighting conditions.

• Versatile Connectivity: Supports Bluetooth, Wi-Fi, NMEA 2000, and external sensors for seamless system integration.

• Flexible Mounting Options: Surface or flush mount with accessories included for easy installation on various vessel types.
