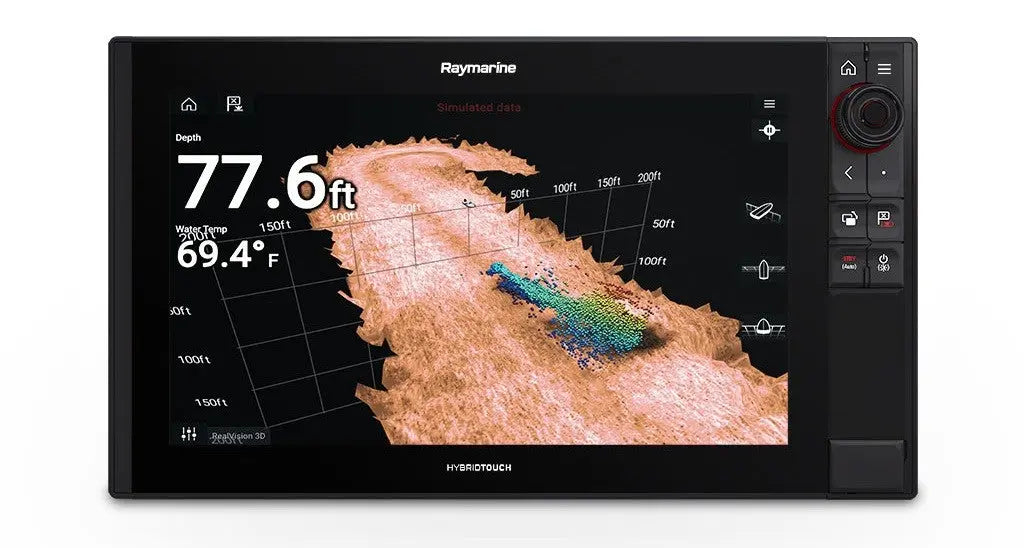

Raymarine Axiom Pro 16RVX MFD No Transducer No Chart

Raymarine Axiom Pro 16RVX: High-Performance Multifunction Display for Marine Navigation

Raymarine Axiom Pro 16RVX MFD No Transducer No Chart

Raymarine Axiom Pro 16RVX 15.6" MFD With RealVision 3D, 1kw CHIRP sonar No Chart

Model: E70373

• RealVision 3D, 1kw CHIRP sonar
• NMEA2000 & NMEA0183
• Sonar Scroll Back
• HybridTouch
• Quad Core Processor
• Optical Bonding Technology & IPS Displays
• IP & Analog Video
• Clear Cruise
• Quantum CHIRP, HD & SHD
• NMEA2000 & NMEA0183

Specifications

Display Size
15.6" IPS Optically Bonded LCD

Display Resolution
1920 x 1080 FHD

Display Type
Multitouch

Brightness
1,200 nits

Viewing Angle
Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)

Mounting
Top, Front, and optional RAM ball mount adapter

Waterproof Rating
IPX6 / IPX7

Operating Temp
minus 13deg F to 131deg F (-25deg C to +55deg C)

Storage Temp
minus 22deg F to 158deg F (-30deg C to +70deg C)

Sensors

Sonar Type - Built-in
RealVision 3D, 1kw CHIRP sonar

Sonar Connections
25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable.

Sonar Depth
CHIRP Sonar = 900 feet (974 m)
DownVision = 600 feet (183 m)

External Sonar
Yes - CP100, CP200, CP370, CP470, CP570 via RayNet

Radar
Yes - Quantum, Digital, HD Color and Super HD Color Radars

AIS
Yes - N2K compatible

GNSS / GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288)

Autopilot Control
Yes - Evolution Autopilot

Thermal Night Vision
Yes - IP or Analogue

Video / Camera
1 x Analogue input (BNC) Up to 10 IP Cameras

Weather
GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only

Audio
N2K / *Bluetooth / *SiriusXM Audio
[*Available in future Lighthouse 3 software update]

Digital Switching
Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update]

Remote Control
RMK-10 (A80438) & RCU-3 (E62351)

Networking

Ethernet
2 x 10/100/1000 Mbits/ Network (RayNet)

NMEA0183
1 Transmit / 2 Receive

NMEA2000
1 x NMEA2000 port (DeviceNet microC)

SeaTalkNG
Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box)

USB
1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)

Wi-Fi
WiFi - 802.11 a / b / g / n

BlueTooth
Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update]

Navigation

Cartography
Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software update]

Waypoint/Routes/Tracks (Wpts/Rts/Trk)
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

MEMORY

Internal
16GB Solid State

16GB Solid State
2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format
(microSD native format of exFAT must be reformatted to NTFS or FAT32)

Input Voltage
12V and 24V DC (8 V to 32 DC)

Input Draw
~45W

Dimensions
17.8" x 10.2" x2.72" (452 x 258 x 69 mm)

What's in the Box:

• Axiom Pro 16RVX
• Trim Kit
• Suncover
• Trunnion Kit
• PWR/VIDEO/NMEA0183 CBL, STRT 1.5M
• Mounting Hardware
• Mounting Template
• Quick Start Guide
• Warranty Card
• Raymarine window decal

Powerful Display and Intuitive Interface

The Raymarine Axiom Pro 16RVX offers a stunning 16-inch high-resolution touchscreen that provides sharp, vivid visuals even in bright marine environments. This advanced MFD enhances navigation and situational awareness with its intuitive interface and fast processing power. Its responsive touchscreen allows boaters quick access to key functions and menus, enabling easy control of charts, sonar imaging, radar overlays, and more. Whether you’re cruising or fishing, the Axiom Pro 16RVX’s brilliant display ensures you never miss critical data while on the water.

Seamless Integration Without Transducer or Chart

This version of the Raymarine Axiom Pro 16RVX is designed for users who prefer to use their own transducers or already have chart subscriptions. It comes equipped with powerful networking capabilities allowing seamless integration with Radars, autopilots, third-party sensors, and sonar modules. Despite lacking a transducer and chart pre-installed, it supports a wide range of external devices and mapping software. This flexibility makes the Axiom Pro 16RVX an excellent base device for custom marine electronics setups tailored to your specific boating needs.

Robust Performance for Serious Mariners

Built for professional and recreational boaters alike, the Raymarine Axiom Pro 16RVX delivers fast, reliable performance. Its quad-core processor enables smooth multitasking of navigation, radar, and sonar functions with minimal lag. The MFD incorporates LightHouse 3 operating system for simple updates and enhanced features. Designed to withstand harsh marine conditions, the unit features a waterproof, ruggedized casing with corrosion-resistant materials. This durable construction ensures consistent performance in varying weather, making the Axiom Pro 16RVX a trusted companion for extended marine adventures.
