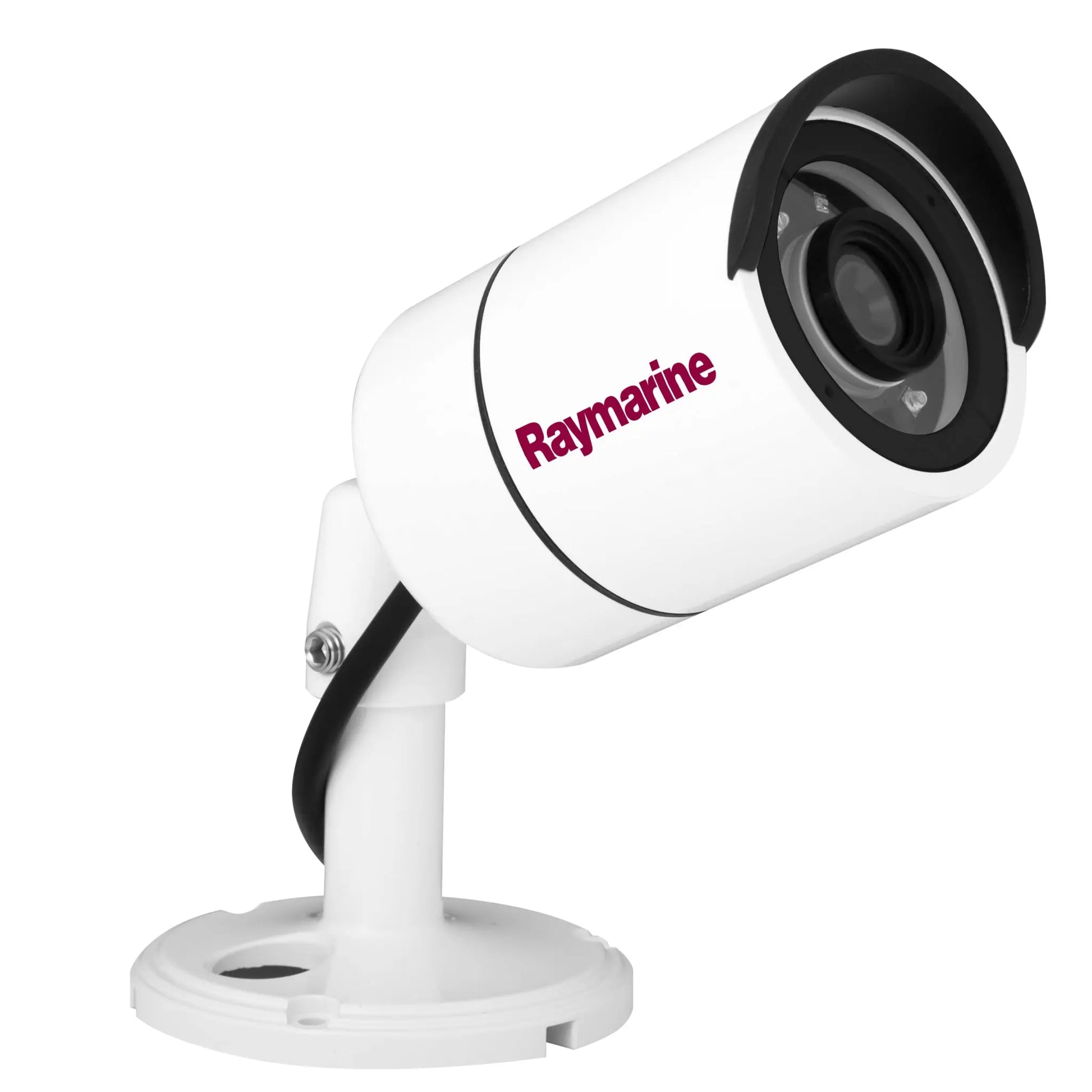

Raymarine CAM210 Day And Night IP Bullet Camera
Raymarine CAM210 Day and Night IP Bullet Camera
Model: E70346
UPC: 723193813263
- Plug and play integration with Raymarine MFD’s running Lighthouse II or later
- Power over Ethernet (PoE) or direct 12v DC power supply
- High bright IR LEDs for operation in total darkness
- Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)
- Intelligent IR technology for clear video images at night in all conditions
Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.
Specifications
System
CPU
32-bit ARM9 RISC CPU up to 432MHz
Flash/SDRAM
128MB / 128MB
Camera
Image sensor
2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor)
Total pixels
1952(H) x 1116(V) 2.18 Megapixel
Effective pixels
1944(H) x 1104(V) 2.15 Megapixel
S/N Ratio
More than 50dB
Minimum illumination
0Lux (IR On)
IR Distance
20 meters
Day 7 Night
ICR
Lens
6.0mm Megapixel Board Lens
Field of view
Diagonal = 63.6 deg +/- 3 deg
Horizontal = 53.3 deg +/- 3 deg
Vertical = 33.1 deg +/- 3 deg
Video
Video compression
H.264 High Profile@4.0, MJPEG —Image quality: 3 Steps
Recolution
Up to 1920 x 1080 (Full HD)
Frame rate
H.264 Up to 30fps with 1920x1080 , MJPEG Up to 30fps with VGA resolution
Video streaming
Support multi stream with H.264, MJPEG Adjustable frame rate CVBR/CBR in H.264
Pan/Tilt/Zoom
Digital Pan, Tilt and Zoom
Image Setting
Day & Night Auto White Balance Auto Exposure Privacy Mask Effects - Colour, Sharpness, Mirror / V-Flip
System integration
Security
Password protection, User access log, HTTPS encryption
Supported protocol
HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
Intelligent video
Motion detection up to 1920x1080 with 4x3 blocks
Physical
Power source
DC12V/1.5A, PoE(Power over Ethernet): 802.3af
Power consumption
Max. 3.3W, Max. 5.3W with IR
LED's
Power, Network Connection
Dimensions
83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
What's in the Box:
- CAM210 IP Camera Stand
- Waterproof Coupler
- CAM210 Hardware Kit
- CD (English)
- CAM210 Mounting Template
- Warranty Booklet
