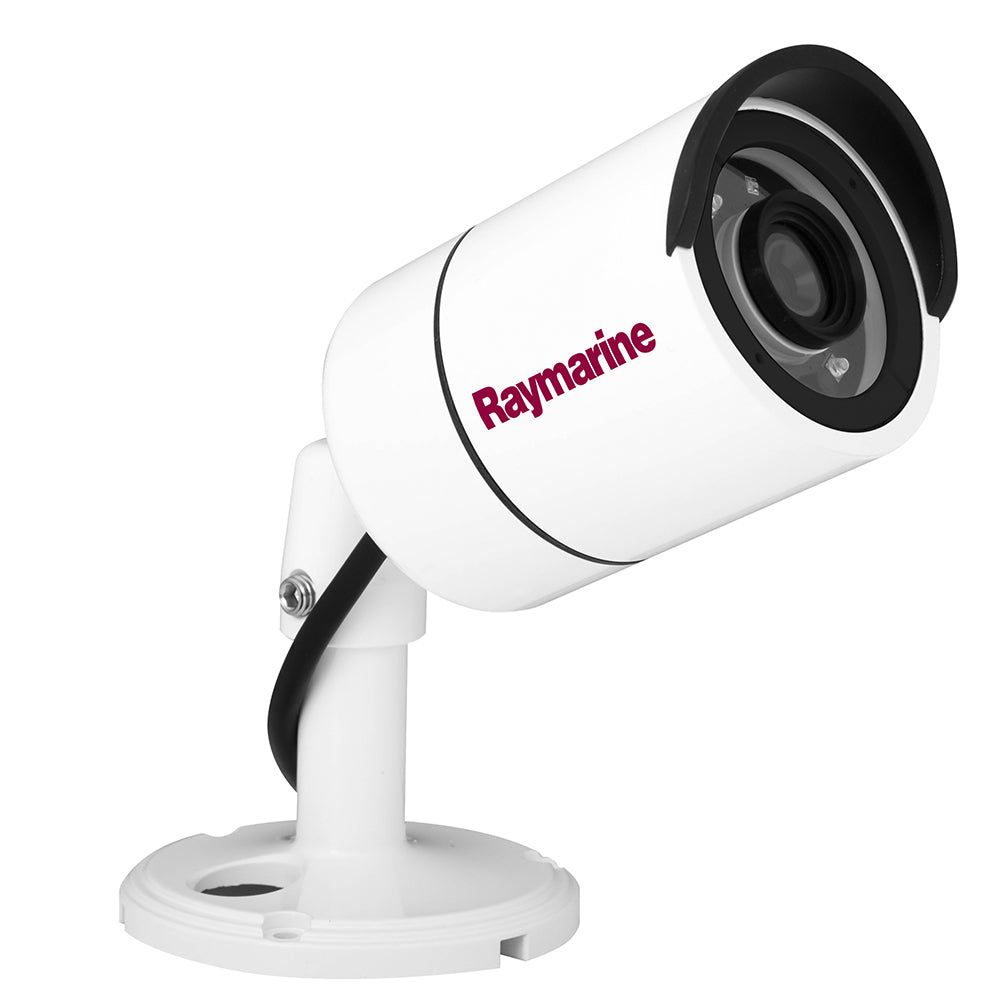

CAM210 Day Night IP Marine Bullet Camera
Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.
- Plug and play integration with Raymarine MFDs running Lighthouse II
- Power over Ethernet (PoE) or direct 12V DC power supply
- High bright IR LEDs for operation in total darkness
- Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)
- Intelligent IR technology for clear video images at night in all conditions
Specifications:
- CPU: 32-bit ARM9 RISC CPU up to 432MHz
- Flash / SDRAM: 128MB / 128MB
- Image Sensor: 2.0 Megapixel 1/2.8 SONY progressive scan CMOS(Exmor)
- Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel
- Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
- S/N Ratio: More than 50dB
- Minimum Illumination: 0Lux (IR On)
- IR Distance: 20M
- Day Night: ICR
- Lens: 6.0mm Megapixel Board Lens
- Field of View:
Diagonal = 63.6 +/- 3
Horizontal = 53.3 +/- 3
Vertical = 33.1 +/- 3
- Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps
- Resolution: Up to 1920 x 1080 (Full HD)
- Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution
- Video Streaming:
Support multi stream with H.264, MJPEG
Adjustable frame rate
CVBR/CBR in H.264
- Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom
- Image Setting:
Day Night
Auto White Balance
Auto Exposure
Privacy Mask
Effects - Color, Sharpness, Mirror / V-Flip
- Security: Password protection, User access log, HTTPS encryption
- Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
- Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks
- Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
- Power Consumption: Max. 3.3W, Max. 5.3W with IR
- Net Weight: 900g
- LEDs: Power, Network Connection
- Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
- General Operation Temperature: 040 Celsius(32F104F)
- Storage Temperature: -1050 Celsius(14F122F)
The Raymarine CAM210 Day and Night IP Marine Bullet Camera is a rugged, high-definition surveillance solution designed specifically for above-deck marine applications. Its compact design and integrated sun cover allow for easy installation on boats of various sizes, providing reliable security and monitoring in challenging weather conditions. This camera features a 2.0 Megapixel Sony progressive scan CMOS sensor, delivering crisp full HD video at up to 1920 x 1080 resolution with a frame rate of 30fps, ensuring clear and detailed images in real time. Equipped with powerful IR LEDs with a 20-meter range and intelligent IR technology, the CAM210 performs excellently in total darkness and low-light conditions, making it ideal for night-time surveillance onboard vessels.
Advanced digital defog processing enhances image clarity during foggy, smoky, or smoggy weather, ensuring consistent visibility regardless of environmental challenges. The camera supports both Power over Ethernet (PoE) and direct 12V DC power supply options, offering flexibility in installation and power management. Its plug-and-play compatibility with Raymarine MFDs running Lighthouse II simplifies integration into existing marine systems, providing seamless control and monitoring. The camera’s features include digital pan, tilt, and zoom, customizable image settings such as white balance, exposure, and privacy masking, along with security protocols like password protection and HTTPS encryption for secure operation.
Designed to withstand marine environments, the CAM210 operates within a temperature range of 32°F to 104°F, with storage capabilities down to 14°F. Its durable construction and weather resistance make it suitable for all above-deck applications. Additional features include multi-stream video support, motion detection, and support for various protocols such as RTSP, HTTP, and HTTPS, enabling versatile connectivity options. Weighing approximately 2 pounds, this camera is a reliable and versatile addition to any marine security system, ensuring clear visuals day and night with minimal maintenance and hassle.
Features:
- High-definition 2.0 Megapixel CMOS sensor for crisp Full HD video
- Day and night ICR function for 24/7 surveillance
- Power over Ethernet (PoE) and 12V DC power support for flexible installation
- Integrated sun cover for maximum visibility and protection from the elements
- IR LEDs with 20-meter range and intelligent IR technology for clear night vision
- Digital defog processing improves image clarity in poor weather conditions
- Support for multi-streaming with H.264 and MJPEG compression
- Digital pan, tilt, and zoom capabilities for customizable viewing angles
- Secure operation with password protection, user access logs, and HTTPS encryption
- Supports multiple protocols including RTSP, HTTP, HTTPS, FTP, and more
- Weather-resistant design suitable for all above-deck marine environments
- Compact size and lightweight design for easy installation
