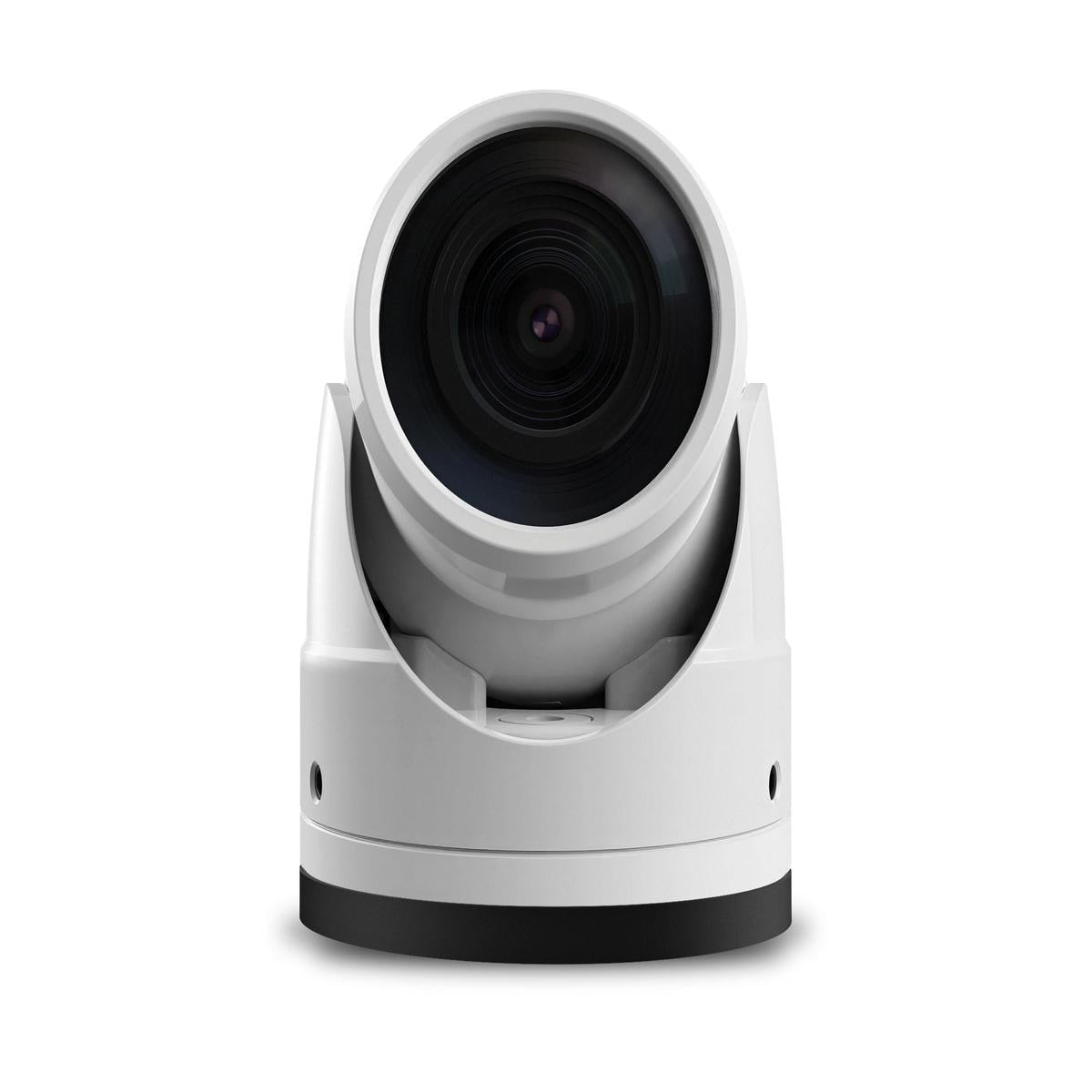

Raymarine CAM400 Marine Day/Night IP Camera, White – E70716

Raymarine CAM400 Marine Day/Night IP Camera White

Raymarine CAM400 Day/Night IP Camera – White, Part E70716

The Raymarine CAM400 is a compact marine IP camera designed to work with Raymarine Axiom chartplotters, providing wide-angle, high-definition video for navigation, docking, safety, and onboard monitoring. Its true day/night operation automatically switches between color imaging and infrared-assisted viewing, helping maintain visibility in bright sunlight, dusk, low light, and nighttime conditions. Integrated 850 nm infrared illumination supports visibility up to 33 feet in darkness.

When paired with an Axiom 2 chartplotter running LightHouse 5, the CAM400 can display configurable on-screen distance guide lines to assist with backing into slips, approaching docks, and maneuvering in tight quarters. Combine the camera with a Raymarine AR200 sensor and compatible Axiom system to enable ClearCruise® Augmented Reality, overlaying AIS targets, waypoints, navigation aids, and chart objects on the live video image.

Built for demanding marine environments, the CAM400 features a rugged IPX7-rated housing, gloss marine white finish, and flexible ball-up or ball-down mounting. The camera supports Power over Ethernet through an IEEE 802.3af Class 2 connection or direct 12 V DC power, making it suitable for new installations and refits above or below deck. Advanced image processing includes configurable wide dynamic range, noise reduction, image enhancement, automatic gain control, horizontal and vertical image flipping, and H.264 or MJPEG compression. Progressive scanning and frame rates up to 30 frames per second provide smooth, detailed video.

The camera includes the mounting hardware, gasket, bushings, silicone rings, washers, screws, hex wrench, documentation, and an integrated connection cable with PoE and direct-power connections. Raymarine Part E70716 is a practical choice for boat owners seeking dependable video awareness integrated into an Axiom navigation system.

Specifications

Video	True day/night operation, automatic infrared cut filter, color CMOS sensor, progressive scan, wide-angle 129.4° horizontal field of view, up to 30 fps, H.264 and MJPEG compression, ONVIF Profile S compliance
Infrared Illumination	Integrated 850 nm infrared emitter with viewing range up to 33 ft
Power	IEEE 802.3af PoE Class 2 or 12 V DC input; 10.8–15.6 V DC operating range
Marine Protection	IPX7 waterproof housing for marine installation
Operating Temperature	-4°F to 140°F
Weight	0.93 lb

What's in the Box: CAM400 camera with integrated connection cable, camera mount, camera base, mounting gasket, hex wrench, bushings, silicone rings, flat washers, mounting screws, and documentation.

Features:

• High-definition wide-angle video for navigation, docking, safety, and onboard monitoring

• True day/night operation with automatic infrared cut filter and infrared visibility up to 33 ft

• Compatible with Raymarine Axiom chartplotters running LightHouse 4 or LightHouse 5

• Supports ClearCruise Augmented Reality when paired with an AR200 sensor and compatible Axiom system

• Configurable on-screen distance guide lines with Axiom 2 and LightHouse 5

• Ball-up or ball-down mounting with simple angle adjustment

• Rugged IPX7-rated marine housing with gloss white finish

• Power options include IEEE 802.3af Power over Ethernet or direct 12 V DC

• Advanced image processing with configurable WDR, noise reduction, image enhancement, and image flipping

• ONVIF Profile S compliant with H.264 and MJPEG compression
