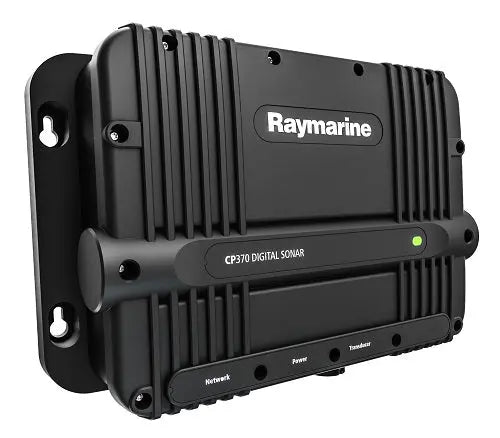

Raymarine CP370 Digital Sonar Module

Raymarine CP370 Digital Sonar Module

• Sharper Fish Targets
• Enhanced Automatic Sensitivity Control
• Better Noise Reduction
• Enhanced Bottom Tracking
• ClearPulse automatic noise filtering and auto sensitivity control
• Standard Zoom

Digital Sonar Module
The CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine’s next-generation ClearPulse digital sonar processing.

The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing.

ClearPulse signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar.

Sharper, Clutter Free Targets
Spend less time looking for fish and more time fishing

• Smarter target intensity controls reveal bait and game fish with exceptional clarity
• Enhanced digital filtering reveals fish targets through the entire water column
• Spend less time looking for fish, and more time fishing. CP370 takes the guesswork out of interpreting the sonar display.

Go Deeper
Next generation ClearPulse sonar

• Up to 1,000 watts of power to track the sea floor down to 5,000 feet (1,500m)
• High performance dual-frequency (50/200 kHz) sonar for coastal and offshore fishing

Accurate Bottom Tracking
New and improved bottom tracking

• Track the bottom in extreme conditions with advanced ClearPulse signal processing
• New and improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons.

Recommended for
Coastal fishing

Sonar type
Digital

Power
600W / 1000W Depending on transducer

Frequency & Channels
Fixed frequency 50KHz and 200KHz channels

Depth range
5000 feet

Waterproofing standard
IPX6

Compatibility
aSeries, cSeries, eSeries, gS Series, C-Widescreen, E-Classic, E-Widescreen

Connections
Power connection, Network connection (RayNet connector) 10/100 Mb/s, Transducer connection

Input Voltage
12/24 V DC

Input Draw
30.6 watts max

Dimensions
11.79" W x 7.9"D x 3.3" H

What's in the Box:

• CP370 Module
• 1.5m power cord
• #8 screws qty 4
• 2m Raynet Female to Female network cable
• Documentation pack
