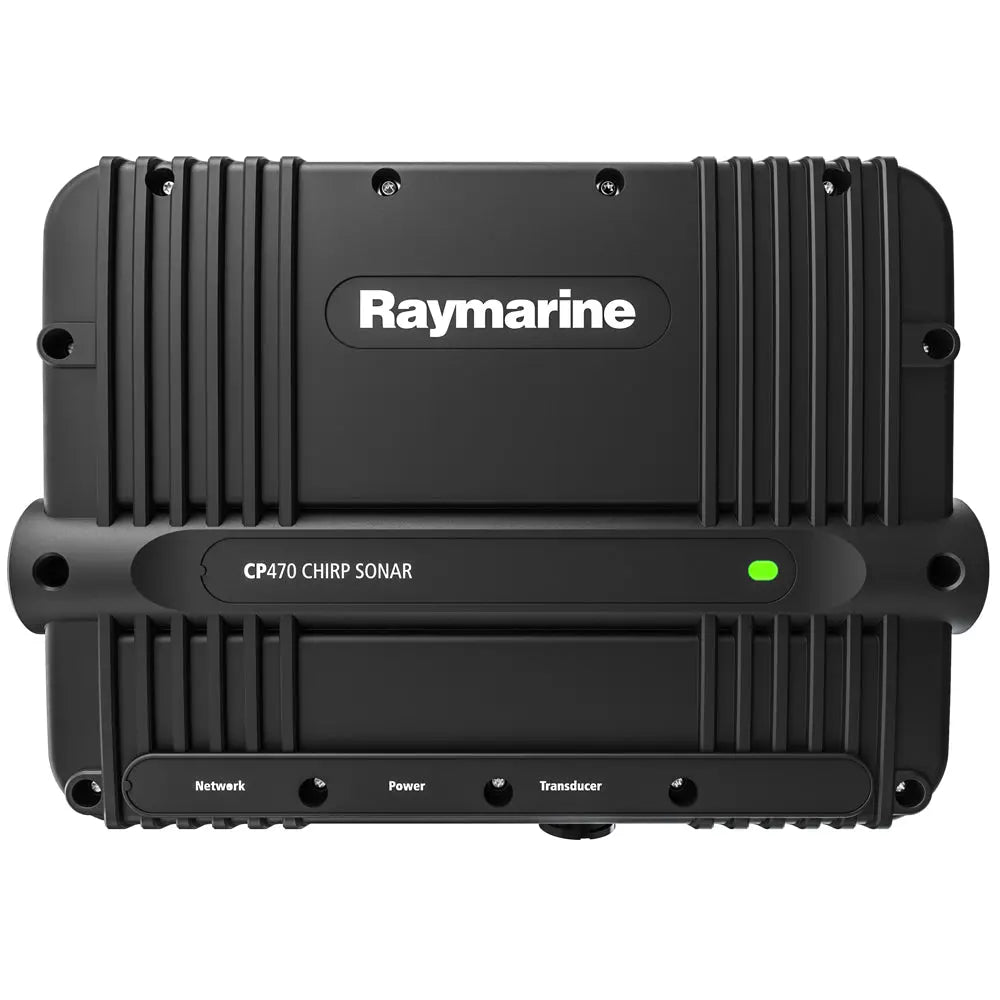

Raymarine CP470 CHIRP Sonar Module for Offshore and Coastal Fishing

CP470 CHIRP Sonar Module
High-Performance Sonar Module For Offshore and Coastal Fishing

CHIRP Sonar Module
Engineered for serious anglers, the CP470 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP470's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish.

Rated for offshore use and rough conditions, the CP470 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking.

Serious Offshore Sonar
Superior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology.

Target fish, identify bait, and track the sea floor down to 10,000' (3,000M) with two adjustable CHIRP sonar channels.

Stunning Detail magnification mode reveals extra target detail without any loss of resolution.

Easy To Customise
Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences.

The CP470 automatically recognizes connected transducers and adjust sonar parameters for optimized performance
View and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays.

Features

• TruZoomTruZoom provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar

• Automatic transducer identification with Airmar Xducer ID

• Airmar Wide Beam transducer compatible

• Waterproofing Standard:IPX6 waterproof rugged aluminum enclosure

• Compatibility:aSeries | cSeries | eSeries | gS Series

• Nominal Supply Voltage:12/24 V DC

• Power Consumption: 30.6W (Maximum)

• Connections:Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection

Sonar Performance

• Sonar Type: Wide Spectrum CHIRP

• Power:1kW / 2kW depending on transducer

• Frequency & Channels:Dual independent CHIRP channels from 25 to 250kHz

• Depth Range:10,000' (3,000M)

The Raymarine CP470 CHIRP Sonar Module is designed for serious anglers seeking high-performance sonar capabilities. Engineered to deliver outstanding target separation and high-resolution imagery, the CP470 integrates seamlessly with Raymarine multifunction displays, providing comprehensive underwater insights. Utilizing advanced wide spectrum CHIRP transceivers, this module can effectively penetrate dense baitfish schools, identify thermoclines, and target specific game fish simultaneously. Its robust design is rated for offshore conditions, intelligently filtering out noise to produce clearer images of fish targets and reliable bottom tracking even in turbulent waters.

Ideal for offshore adventures, the CP470 offers superior target definition and heightened sensitivity through Raymarine's exclusive CHIRP technology. Its ability to track the sea floor down to 10,000 feet, coupled with two adjustable CHIRP channels, allows for precise depth and fish detection. The stunning detail magnification mode reveals additional target information without sacrificing resolution, enabling anglers to make well-informed decisions. The module features automatic transducer recognition via Airmar Xducer ID and supports optional low, medium, and high-frequency transducers, including wide-beam options, to customize your fishing setup.

The CP470's user-friendly interface allows independent control of each CHIRP channel and the creation of customized split or full-screen sonar views on Raymarine's LightHouse II systems. Its TruZoom feature magnifies fish, bait, and bottom structures without resolution loss, providing a clearer underwater picture. The system's waterproof aluminum enclosure (IPX6 rated) ensures durability in harsh marine environments. Compatible with aSeries, cSeries, eSeries, and gS Series displays, the CP470 operates on 12/24 V DC power and consumes up to 30.6W. Its versatile connectivity options include power, network (RayNet), and transducer connections, making installation straightforward.

Powerful and versatile, the Raymarine CP470 CHIRP Sonar Module enhances offshore fishing with detailed imaging, adjustable channels, and advanced filtering. Whether tracking the seabed or locating bait and game fish, this module is an essential tool for anglers demanding reliable and high-resolution sonar performance in demanding marine environments.

Features:

• TruZoom magnification mode for detailed underwater views without resolution loss

• Automatic transducer identification with Airmar Xducer ID

• Compatible with Airmar Wide Beam transducers

• IPX6 waterproof rugged aluminum enclosure for durability in harsh conditions

• Supports Raymarine aSeries, cSeries, eSeries, and gS Series multifunction displays

• Operates on 12/24 V DC power with a maximum power consumption of 30.6W

• Dual independent CHIRP channels with frequency range from 25 to 250kHz

• Depth range capable of reaching 10,000 feet (3,000 meters)

• Selectable low, medium, and high CHIRP frequency transducers for customization

• Easy-to-use interface for viewing and controlling each CHIRP channel independently
