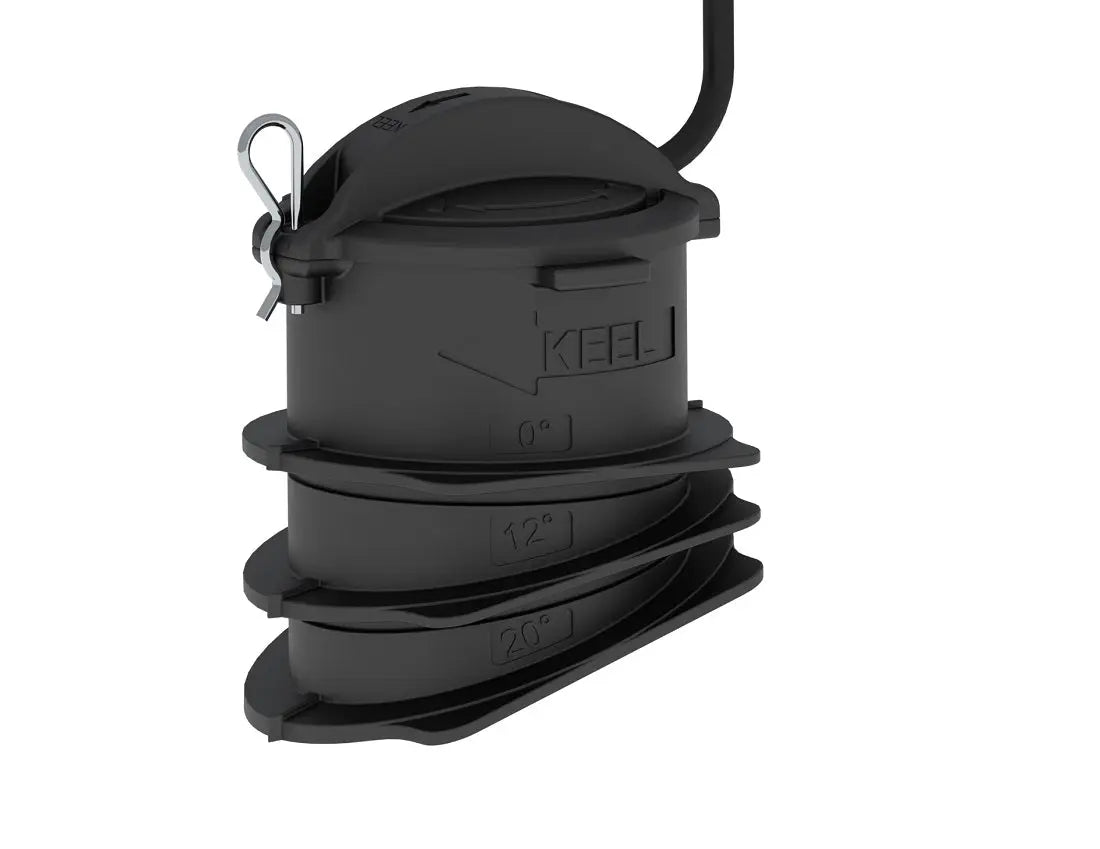

Raymarine CPT-S In-Hull Chirp Transducer 170-230 kHz
Raymarine CPT-S In-Hull Transducer
Model: A80691
The CPT-S In-hull transducer provides a simple-to-install depth only transducer solution for non-cored fiberglass hulls. Ideal for sailing, cruising, and small powerboat applications, the CPTS-S In-hull transducer supports CHIRP operation centered on 200kHz. The CPT-S in-hull directly connects to Element S and connects to Axiom RV, Axiom Pro, and Element HV using the A80490 or A80559 adapters, respectively. An innovative transducer tube housing design allows the CPT-S In-Hull to mount in hulls ranging from 0 to 25 degrees deadrise.
The CPT-S In-hull is designed for glue-in installation on vessels with non-cored fiberglass hulls. A cut-to-fit transducer housing allows the transducer to readily adapt to hulls with deadrise angles between 0 deg and 25 deg.
The CPT-S In-Hull transmits in the High CHIRP band for reliable depth recording, fish targeting, and bottom density. Pair the CPT-S In-hull with a Raymarine MFD for general navigation and scouting anchoring locations.
In-hull transducers offer reliable depth performance at cruising-speeds. The CPT-S In-hull accommodates RIBS, trailer boats, and applications where drilling through the hull or mounting to the transom is not practical.
Specifications
Sonar TypeCHIRP
Frequency
High CHIRP 170 - 230 kHz
Hull compatibility
Solid, non-cored fiberglass hull
Deadrise Adjustments
0 deg, 12 deg or 20 deg
Depth Range
Up to 600 feet
Cone Angle
25 deg
Cable length
6 meters
MFD COMPATIBILITY
Axiom, Axiom+
Direct connection to Axiom 7 DV. Use the A80490 adaptor for connection to Axiom RV and Axiom+ RV
Axiom Pro
Use the A80490 adaptor for connection to Axiom Pro S, Axiom Pro RVX and the RVX1000
Element
Direct connection to Element S. Compatible with Element HV using the A80559 adaptor
Other/legacy
Direct connection to DownVision variants of aSeries, eS Series, and CP100 Sonar modules
What's in the Box:
The Raymarine CPT-S In-Hull Chirp Transducer operates within a frequency range of 170-230 kHz, providing crystal-clear sonar imaging. Its CHIRP technology sends a continuous sweep of frequencies, enabling it to detect objects, fish, and underwater terrain with remarkable precision. Designed specifically for in-hull mounting, this transducer works seamlessly with Raymarine systems to deliver reliable and accurate data. Whether you're fishing, navigating, or exploring, the CPT-S ensures exceptional underwater visibility, making it indispensable for serious anglers and boaters.
Constructed to withstand harsh marine environments, the Raymarine CPT-S transducer features a durable housing that protects its sensitive internal components. Its compact and sleek design allows for simple in-hull mounting without compromising vessel integrity. Installation is straightforward with no need for hull penetration, reducing the risk of leaks and damage. Compatibility with multiple Raymarine displays makes it a versatile choice for upgrading or replacing existing sonar equipment. Overall, this transducer balances durability and practicality for hassle-free marine performance.
Specifically engineered to integrate smoothly with Raymarine’s multifunction displays and sonar modules, the CPT-S In-Hull Chirp Transducer enhances the overall fishing and navigation experience. The transducer supports high-definition sonar returns, allowing users to distinguish fish and structures clearly. It also delivers consistent performance in various water conditions, including freshwater and saltwater. By optimizing signal clarity and reducing noise interference, this Raymarine product ensures that users get the most accurate and actionable underwater information available.
