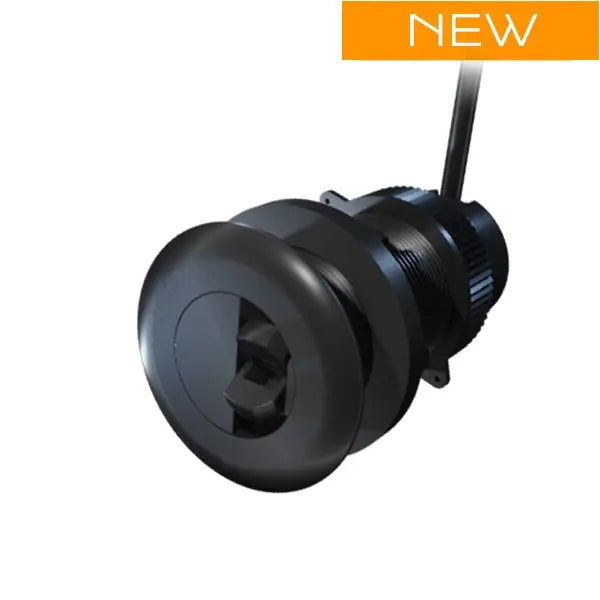

Raymarine E70667 DST810 Gen2 Airmar Smart Transducer Plastic Thru Hull

Raymarine E70667 DST810 Gen2 Airmar Smart Transducer Plastic Thru Hull

Raymarine DST810 Gen2 Thru-Hull Depth/Speed/Temperature

The DST810 Gen2 is a SmartTM Multisensor through-hull transducer that offers depth, speed, and temperature functions in one compact thru-hull fitting. The low-profile, retractable sensor computes accurate depth, speed, and temperature data and communicates on a single NMEA200 data cable. The DST810 Gen2 also features an integrated vessel attitude sensor and Bluetooth technology that allows boaters a simple way to calibrate speed-through-water using Airmar's CAST mobile app. The Gen2 paddle wheel design delivers improved speed accuracy from 0.3 to 45 knots. The DST810 Gen2 features and SeaTalkng connector for networking with Raymarine instruments and multifunction displays.

Max Depth (Ft)
330 (100m)

Frequency (KHz)
235 kHz

Records
Depth, Speed Temperature, Heel, Trim

Hull Material
Fibreglass / Aluminum

Cable Length (Ft/M)
20 / 6

Deadrise Angles
Up to 22 deg
