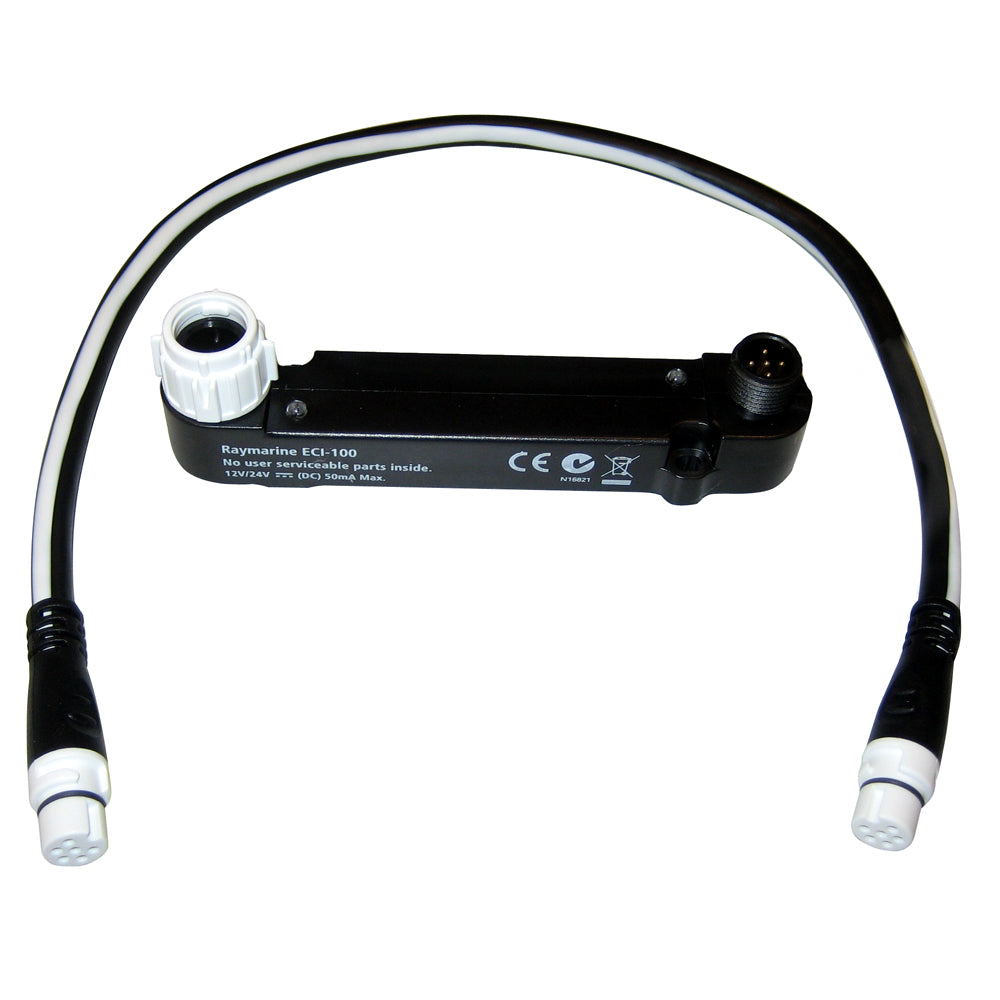

ECI-100 Universal Engine & Control InterfaceThe ECI-100 Universal Engine and Control Interface is an innovative and affordable solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems. A simple isolated CAN Bus solution, the ECI-100 offers reliable integration with Raymarine's latest generation of multifunction displays and also delivers a seamless autopilot steering interface to Raymarine's Evolution EV-2 Drive By Wire autopilot system.
Benefits:
- A simple, single point of connection for engine data and drive-by-wire autopilot control
- Affordable and uncomplicated solution eliminates the need for multiple engine and autopilot gateways
- Brings Raymarine's Evolution 9-axis sensor and adaptive autopilot control to drive-by-wire propulsion without the need for a proprietary autopilot gateway
- View engine data displays and enjoy full autopilot control alongside Raymarine's industry-leading radar, sonar and navigation technologies using a single touch screen display.
- From our space saving aSeries, to our flagship big screen gS Series, engine information displays and autopilot control are available on any display running LightHouse v8 or later
- Access easy to customize displays to show engine performance data, fuel consumption, alarms, and much more
- View engine information displays on your smart phone or tablet with Raymarine mobile apps
- Simple to install ECI-100 makes engine and navigation integration a reality for virtually any size vessel
ECI-100 Engine Data ParametersThe ECI-100 Universal Engine and Control Interface identifies the following parameters:
- Engine speed
- Engine oil temperature
- Engine temperature
- Engine oil pressure
- Engine coolant pressure
- Engine fuel rate
- Boost pressure
- Battery potential
- Transmission oil pressure
- Transmission oil temperature
- Total engine hours
- Fuel tank level
- Trip fuel used (calculated by ECI-100)
- Alternator potential
- Engine torque
- Engine percent load
- Transmission gear
- VIN (not shown on the display)
- Software number (not shown on the display)
Simple Integration, Powerful PerformanceThe ultra-compact ECI-100 connects directly to the industry-standard NMEA2000 or SAE* J1939 Engine Data Bus used by major marine engine manufacturers including:
- Volvo Penta
- Yamaha Marine (Command Link Plus only)
- Caterpillar
- Yanmar Marine
Raymarine is committed to delivering seamless integration with leading marine engines. Visit www.raymarine.com for the latest engine compatibility information.
An industry standard DeviceNet port connects the ECI-100 to manufacturerspecific CAN bus cabling. The ECI-100 then connects to NMEA2000 networks using the SeaTalk
ng cabling system. Each of the ECI-100's isolated ports is powered independently ensuring reliable, worry-free performance from both navigation electronics and engine systems.
* SAE - Society of Automotive Engineers standard
The Raymarine ECI-100 Universal Engine & Control Interface provides a streamlined and cost-effective solution for integrating engine data and drive-by-wire autopilot control on your vessel. Designed for ease of installation, this compact device connects directly to industry-standard NMEA2000 or SAE J1939 engine data buses, supporting major marine engine brands such as Volvo Penta, Yamaha Marine (Command Link Plus), Caterpillar, and Yanmar Marine. Its isolated CAN bus ports ensure reliable communication between navigation electronics and engine systems, enabling seamless operation in diverse marine environments. The ECI-100 simplifies vessel management by consolidating engine monitoring and autopilot control into a single, user-friendly interface that works with Raymarine's multifunction displays and navigation systems.
The device displays vital engine parameters including speed, oil and coolant temperatures, oil and transmission pressures, fuel rate, boost pressure, battery voltage, engine torque, load percentage, transmission gear, and total engine hours. It also provides fuel tank level readings, trip fuel consumption, alternator potential, and VIN details, all accessible through Raymarine’s customizable display interfaces. The ECI-100 supports viewing engine information on any compatible display running LightHouse v8 or later, from compact aSeries units to large gS Series screens, as well as on smartphones and tablets via Raymarine mobile apps, enabling flexible data access and control.
Designed for broad compatibility, the ECI-100 connects directly to engine manufacturers' data buses, supporting Volvo Penta, Yamaha Marine, Caterpillar, and Yanmar Marine engines. It simplifies integration by eliminating the need for multiple gateways, making it suitable for vessels of all sizes. Its industry-standard DeviceNet port allows for straightforward connection to manufacturer-specific CAN bus cabling, while the SeaTalkng system ensures smooth communication with Raymarine navigation electronics. With its compact size and independent power supply, the ECI-100 provides reliable, worry-free performance, enhancing vessel automation and engine monitoring with minimal setup effort.
Features:
- Universal compatibility with industry-standard NMEA2000 and SAE J1939 engine data buses
- Supports major marine engine brands including Volvo Penta, Yamaha Marine (Command Link Plus), Caterpillar, and Yanmar Marine
- Displays comprehensive engine parameters such as speed, temperatures, pressures, fuel rate, torque, and hours
- Provides fuel tank level, trip fuel, battery potential, alternator voltage, and VIN information
- Seamless integration with Raymarine multifunction displays and navigation systems
- Supports viewing engine data on smartphones and tablets via Raymarine mobile apps
- Simple, single-point connection for engine data and autopilot control
- Compact design with industry-standard DeviceNet port for easy installation
- Reliable, isolated CAN bus ports ensure stable communication between systems
- Compatible with Raymarine LightHouse v8 and later software, suitable for a wide range of vessel sizes
