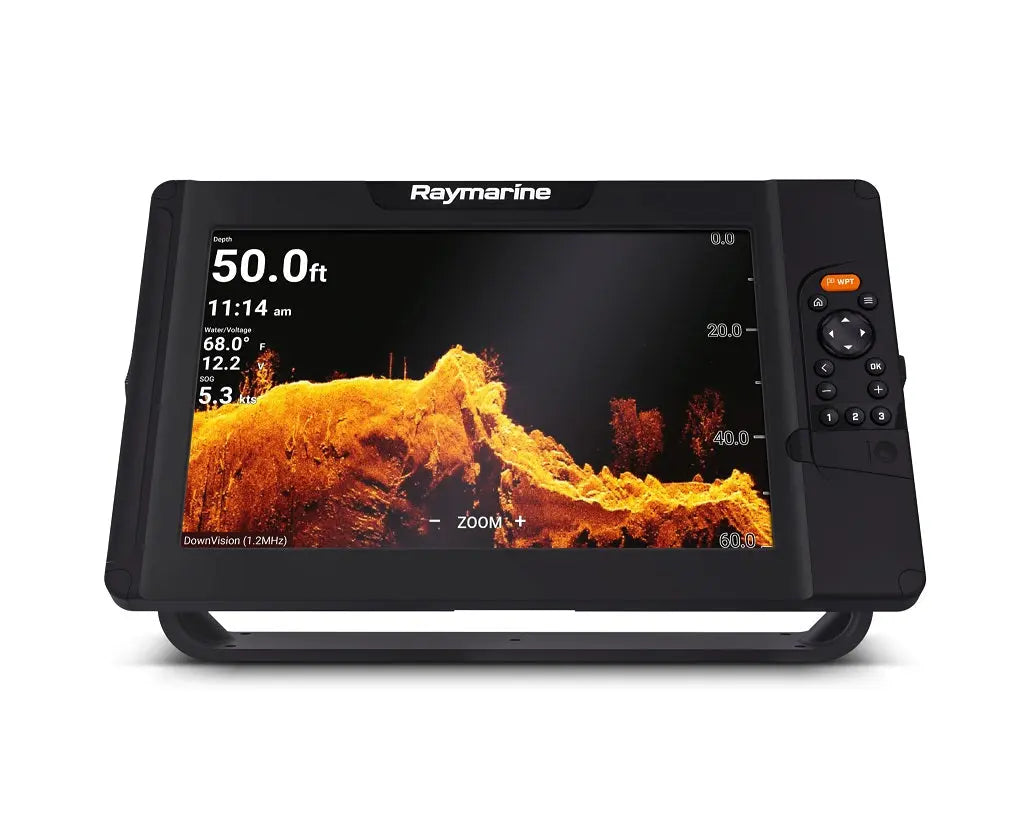

Raymarine Element 12HV HV100 Transom Transducer Lighthouse North America Chart

Explore the Advanced Features of Raymarine Element 12HV with HV100 Transom Transducer

Raymarine Element 12HV HV100 Transom Transducer Lighthouse North America Chart

Raymarine 12HV Element Combo w/HV-100 Transducer & LNC3 US Chart w/Fishing Hot Spots

Model: E70536-05-102

• High-visibility sunlight viewable 12 in display
• Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100 feet while 350kHz Down and SideVision delivers photo-like imaging up to 600 feet
• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
• Raymarine RealBathyTM personal sonar mapping and Navionics SonarCharts Live support
• User-programmable keys allow quick access to most-used configurations
• Comes with Raymarine LightHouse NC2 with Fishing Hot Spots Chart.
• Supports Navionics, C-MAP and other regional charting options
• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration

Knowledge is power-and the ElementTM CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVisionTM 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesn't stop there-an onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fish-not the helm. An oversized waypoint key puts you on your favorite spots, and Element's RealBathyTM personal depth map generator lets you make your own high definition bathymetric maps on the fly.

Specifications

Display Size12.0 Optically Bonded LCD

Display Resolution
1280 x 800 WXGA

Display Type
Non-Touch

Brightness
1

The Raymarine Element 12HV combines powerful sonar technology with an intuitive interface, making it an essential tool for both avid anglers and boaters. This device integrates the HV100 transom transducer for high-definition CHIRP sonar and DownVision™ imaging, providing crystal-clear underwater views. Designed with Lighthouse North America charts, it offers detailed mapping that enhances navigation and fishing experiences. Its 12-inch display delivers bright, sunlight-readable visuals, making it easy to read in any light conditions. Whether exploring new waters or pinpointing fish locations, the Element 12HV is engineered for reliability and precision using trusted Raymarine technology.

High-Performance HV100 Transom Transducer Technology

The HV100 transom transducer included with the Raymarine Element 12HV delivers advanced sonar capabilities for superior underwater imaging. It supports CHIRP sonar, which uses a range of frequencies to produce detailed, clutter-free images of fish and structures beneath the boat. Additionally, the DownVision sonar feature generates photo-like images of the underwater environment, giving users a comprehensive view of the seabed and fish habitats. This transducer's design ensures accurate depth readings and high sensitivity, even in challenging water conditions. Its compatibility with transom mounting makes installation simple and convenient on various boat types.

Lighthouse North America Chart for Precise Navigation

The included Lighthouse North America chart adds significant value to the Raymarine Element 12HV by providing detailed marine mapping for coastal and inland waters. These charts feature up-to-date depth contours, navigational aids, and points of interest, improving route planning and safety. The chart’s integration with the device’s GPS offers real-time positioning, making navigation intuitive and reliable. Mariners can easily identify fishing hotspots, hazards, and protected areas. This comprehensive mapping solution enhances situational awareness on the water, making it easier to explore unfamiliar regions with confidence and precision.

User-Friendly Interface and Durable Design

Raymarine has equipped the Element 12HV with a user-friendly touchscreen interface that is both responsive and easy to navigate. This interface simplifies access to sonar views, chart plotting, and settings, allowing users to customize their experience without hassle. The device features rugged construction with waterproof housing, designed to withstand harsh marine environments and ensure long-lasting performance. Its bright, anti-glare display guarantees visibility in direct sunlight, providing clear viewing during all daylight hours. With quick startup and seamless integration between hardware and software, the Element 12HV is optimized for efficiency and usability on any fishing or boating trip.
