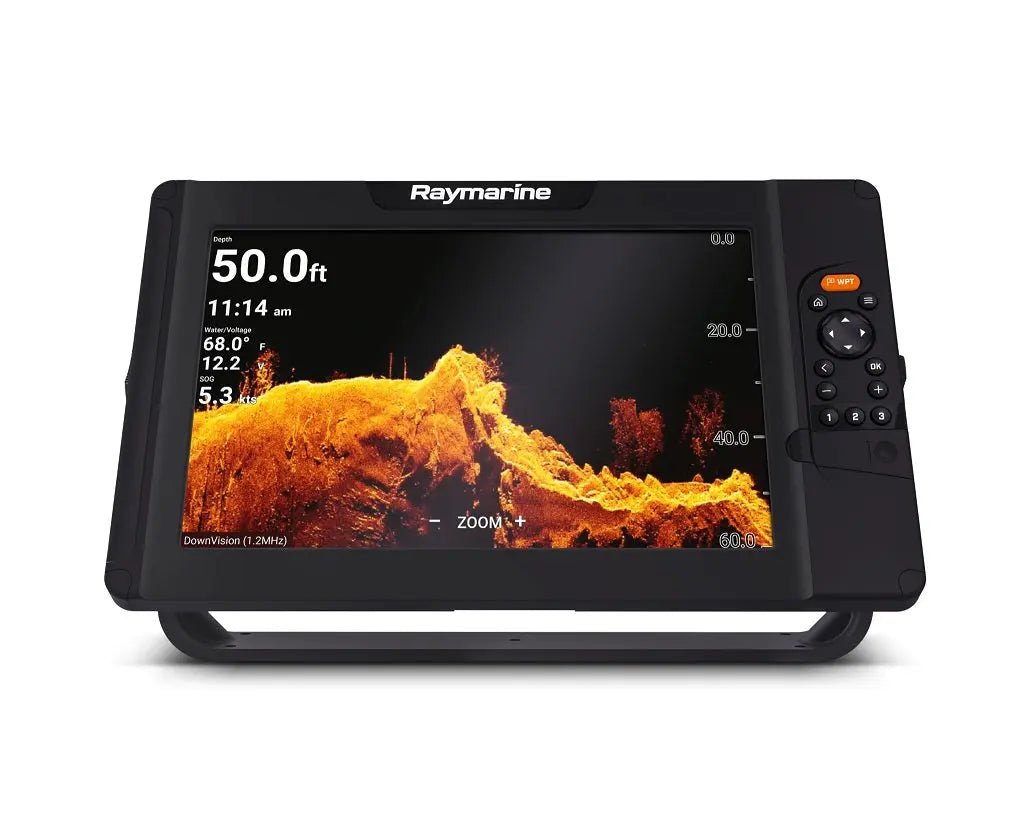

Raymarine Element 12HV No Transducer Lighthouse North America Chart

Experience Unmatched Marine Navigation with Raymarine Element 12HV

Raymarine Element 12HV No Transducer Lighthouse North America Chart

Raymarine Element 12 HV Combo w/LNC3 US Chart w/Fishing Hot Spots

Model: E70536-00-102

• High-visibility sunlight viewable 12 in display
• Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100 feet while 350kHz Down and SideVision delivers photo-like imaging up to 600 feet
• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
• Raymarine RealBathyTM personal sonar mapping and Navionics SonarCharts Live support
• User-programmable keys allow quick access to most-used configurations
• Comes with Raymarine LightHouse NC2 with Fishing Hot Spots Chart.
• Supports Navionics, C-MAP and other regional charting options
• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration

Knowledge is power-and the ElementTM CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVisionTM 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesn't stop there-an onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fish-not the helm. An oversized waypoint key puts you on your favorite spots, and Element's RealBathyTM personal depth map generator lets you make your own high definition bathymetric maps on the fly.

Specifications

Display Size12.0 Optically Bonded LCD

Resolution
1280 x 800 WXGA

Display type
Non-Touch

Brightness
1

Advanced Fishfinding Technology

The Raymarine Element 12HV delivers precise and clear fishfinding capabilities without the need for an external transducer, making it a convenient choice for anglers and boaters alike. Its HyperVision 1.2 Megahertz CHIRP sonar technology produces detailed underwater images up to 60 meters deep. With this enhanced clarity, users can easily identify fish, underwater structures, and terrain. The combination of advanced sonar and high-resolution screen ensures you don’t miss any detail while navigating or fishing.

Integrated Lighthouse North America Chart

Equipped with the Lighthouse North America chart, the Raymarine Element 12HV offers extensive mapping and navigation features tailored for North American waters. This preloaded chart supports seamless route planning, depth contours, and tide data, helping you make safer and more informed decisions on the water. Its compatibility with Lighthouse II allows for easy updates and additional mapping features, ensuring your charts stay current and accurate throughout every trip.

User-Friendly Interface and Durability

This model features an intuitive touchscreen interface designed for fast operation and easy access to key functions, even in rough marine conditions. The 12-inch high-resolution display provides excellent visibility in bright sunlight. Built to withstand the harsh marine environment, the Raymarine Element 12HV is waterproof and rugged, offering reliability and durability essential for every boating adventure. Combining performance with convenience, it is engineered to enhance your on-water experience.
