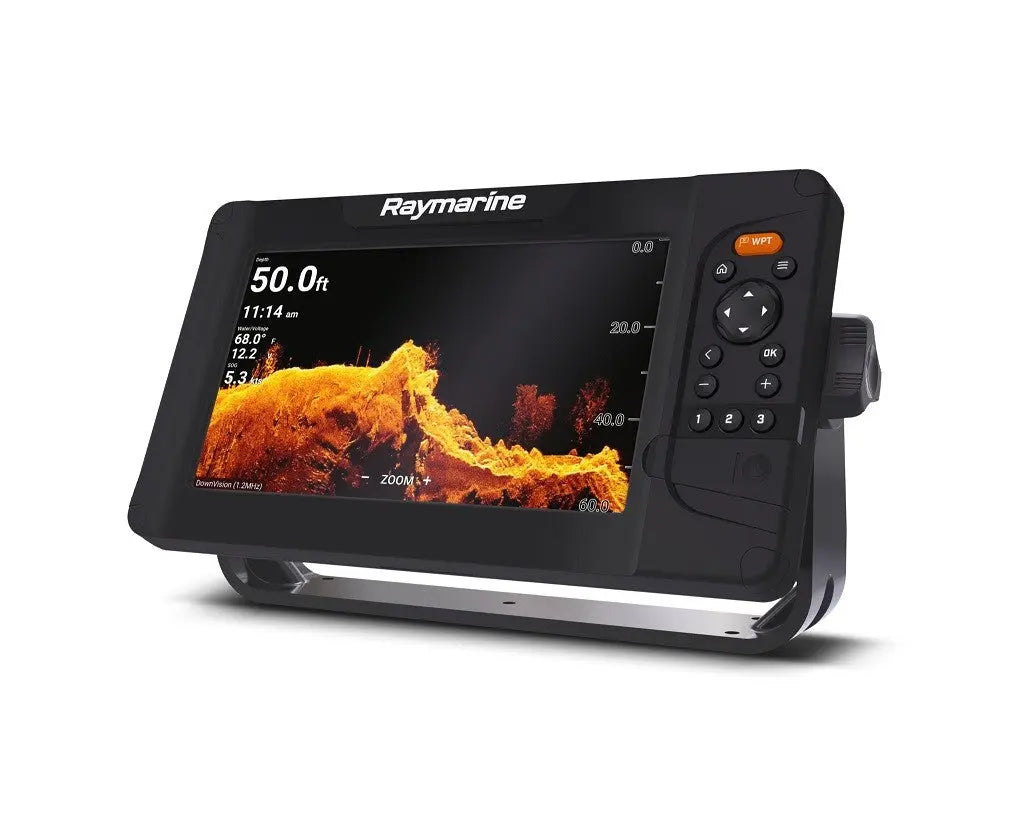

Raymarine Element 9 HV Combo w/HV-100 Transducer, No Chart

Model: E70534-05

• High-visibility sunlight viewable 9" display


• Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars


• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes


• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.


• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’


• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness


• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spotsDedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots


• Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live support


• User-programmable keys allow quick access to most-used configurations


• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration


• Supports Navionics, C-MAP and other regional charting options

Knowledge is power—and the Element CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesn’t stop there—an onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fish—not the helm. An oversized waypoint key puts you on your favorite spots, and Element’s RealBathy personal depth map generator lets you make your own high definition bathymetric maps on the fly.

Specifications

GENERAL SPECIFICATIONS

Display Size
9.0" Optically Bonded LCD

Display Resolution
800 x 480 WVGA

Display Type
Non-Touch

Brightness
1,500 nits

Viewing Angle
Top 50° / Bottom 60° / Left 70° / Right 70°

PHYSICAL

Overall Dimensions
287 x 161 x 62mm

W x H x D
(11.3 x 6.3 x 2.4 inches)

Product Weight (lbs)
5.0

Water Ingress Protection
IPx6 and IPx7

Operating Temperature Range
-25°C to + 55°C (-13°F to 131°F)

Storage temperature range
-30°C to +70°C (-22°F to 158°F)

POWER

Voltage
12V DC (8V to 16V DC)

Power Consumption (max 12V DC)
20 Watts

SENSORS

GNSS / GPS
Built-in GNSS Receiver: GPS/GLONASS

Sonar Type (Built-in)
Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision 3D (Standard and Hyper)

Sonar Connection
15 pin HyperVision type connector

NETWORKING

Ethernet
N/A

NMEA0183
N/A

NMEA2000
1 x NMEA2000 port (DeviceNet microC)

Supported NMEA2000 Networking
INPUT: NMEA2000 Compatible Engines (Max 2) - NMEA2000 Compatible Tank Sensors (Max 4) - Heading Sensor (for Chart Stabilization) OUTPUT: GPS (for VHF Distress and DSC)

SeaTalkng
Requires A06045 DeviceNet female (F) adapter cable - 400mm

USB
N/A

Wi-Fi
WiFi - 802.11 b / g / n

BlueTooth
Bluetooth 4.0 + Low Energy + Power Class 1.5

OTHER SPECIFICATIONS

Cartography
Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.

Tides & Currents
Requires LightHouse LNC2, Navionics or C-MAP

Waypoint / Routes / Tracks
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

Internal Memory
8GB Solid State

External Memory
1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

What's in the Box:

• Element 9 HV


• Flush mount kit with mounting hardware


• Sun cover


• Power / NMEA2000 1.5m cable


• Documentation pack


• Trunnion bracket with mounting hardware


• HV-100 Transducer with 6m cable


• Transom bracket with mounting hardware


• P-clips with mounting hardware (x5)
