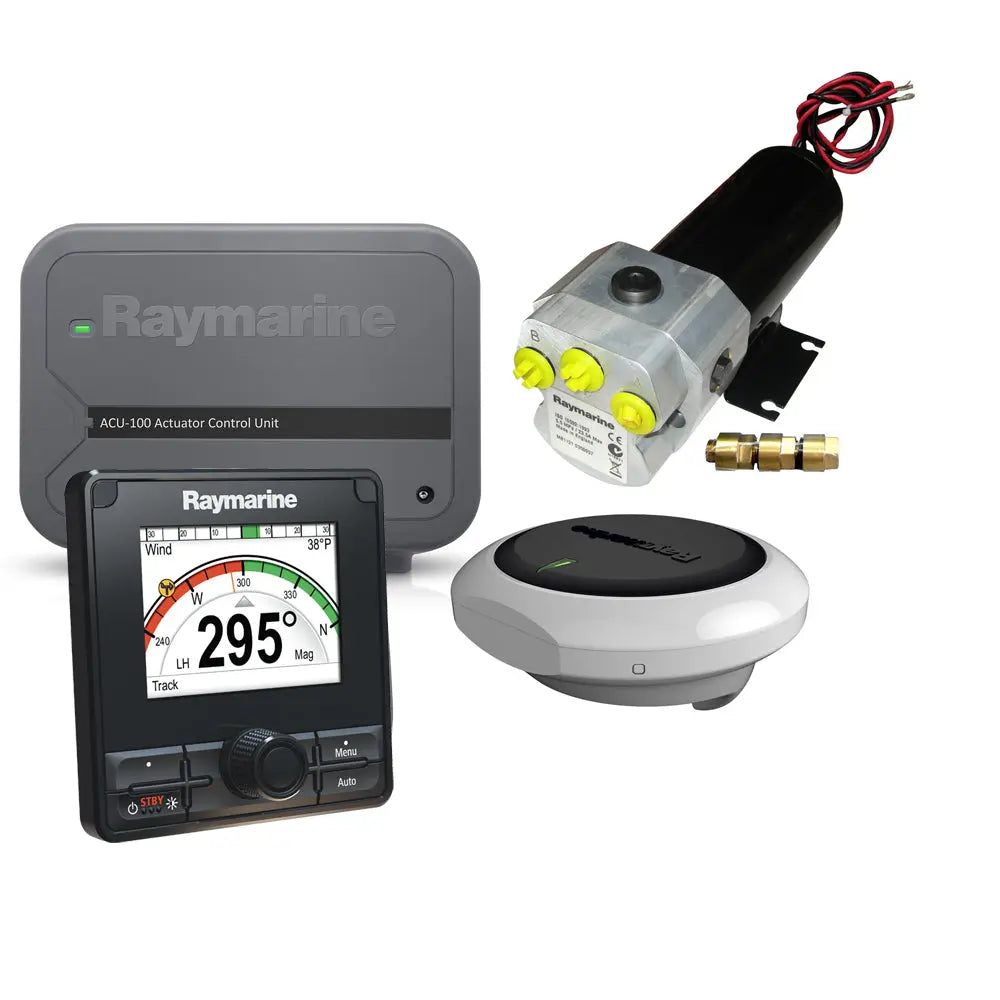

Raymarine EV-100 Power Evolution Autopilot System with p70Rs Control Head and Hydraulic Pump

EV-100 Power Evolution Autopilot

Features:

• A complete autopilot-in-a-box
• Type 0.5 Hydraulic Pump included
• Evolution Ai for superior performance
• No calibration required
• Ideal for small, hydraulically steered powerboats
• Built-in trolling patterns
• For 12V DC power systems
• Includes p70Rs Autopilot Controller

Includes:

• EV-1 Sensor Core
• p70Rs Autopilot Control Head
• ACU-100 Actuator Control Unit
• Type 0.5 Hydraulic Pump 12V
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
• Flexible installation options
• Mount above or below deck
• Simple SeaTalk^ng connectivity to the control head and ACU
• Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

P70Rs Autopilot Control Head

The p70RS has a convenient rotary control knob and support for multiple autopilot modes including Auto, standby, trolling patterns, and track mode from your GPS or chartplotter.

Features:

• LightHouse user interface is simple and quick to use
• Wide 160 viewing angles
• Start up wizard helps you configure the pilot quickly and easily
• Anti-reflective coating for improved visibility in bright sunlight
• Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Simple system and group dimming/illumination
• Support for multiple data sources
• SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-100 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Support Drive Units

Type 0.5 Hydraulic Pump included-3.1" to 6.7" cu in ram

Evolution Cabling Kit

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connector
• 2 x SeaTalk^ng Terminator

The Raymarine EV-100 Power Evolution Autopilot system offers advanced navigation automation for small, hydraulically steered powerboats. Designed for seamless integration, this complete autopilot-in-a-box includes the EV-1 Sensor Core, p70Rs Autopilot Control Head, ACU-100 Actuator Control Unit, and a Type 0.5 Hydraulic Pump, all optimized for 12V DC power systems. The system's intelligent EV sensor core features a 9-axis solid-state sensor that precisely monitors vessel heading, pitch, roll, and yaw, ensuring optimal autopilot performance even in dynamic sea conditions. With waterproofing standards of IPX6 and IPX7, the sensor core can be mounted above or below decks, providing flexible installation options. The system utilizes SeaTalkng networking, allowing a single cable connection for power and data, simplifying setup while delivering high accuracy within 2 degrees under all conditions. This setup ensures reliable heading data for MARPA, radar overlay, and other critical navigation modes on Raymarine multifunction displays. The included p70Rs control head features a user-friendly interface with a rotary control knob, a wide viewing angle, and support for various autopilot modes such as Auto, Standby, Trolling Patterns, and Track Mode, making navigation intuitive and straightforward. Additionally, the control head's anti-reflective coating enhances visibility in bright sunlight, while its low power consumption reduces overall energy use, making it ideal for extended use onboard. The rugged ACU-100 provides dependable drive power for the hydraulic pump and supports the SeaTalkng bus, ensuring smooth steering operation. The Evolution Cabling Kit simplifies installation with pre-measured cables, connectors, and terminators, facilitating a clean and efficient setup. Whether upgrading an existing system or installing a new autopilot, the Raymarine EV-100 system provides precise, reliable, and easy-to-use autonomous steering for small powerboats, elevating safety and confidence at sea.

Features:

• Complete autopilot system with integrated sensor, control head, and hydraulic pump

• Includes Type 0.5 hydraulic pump for smooth steering operation

• Evolution Ai for superior autopilot performance in changing sea conditions

• No calibration required for quick setup and operation

• Designed for small, hydraulically steered powerboats

• Built-in trolling patterns for versatile fishing and cruising

• Compatible with 12V DC power systems

• Includes p70Rs autopilot control head with intuitive interface

• 9-axis EV sensor core monitors vessel motion in all three dimensions

• Rugged, waterproof housing with IPX6/IPX7 standards, suitable for above or below deck installation

• SeaTalkng networking enables simple, single-cable connections for power and data

• High dynamic accuracy within 2 degrees in all sea conditions

• Supports multiple autopilot modes including Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer

• Reliable heading data for MARPA, radar overlay, and multifunction displays

• ACU-100 provides dependable drive power and supports SeaTalkng bus

• Comprehensive cabling kit with all necessary connectors and terminators for straightforward installation
