Raymarine EV-100 Tiller Evolution Autopilot System for Sailboats up to 13,200 lbs

EV-100 Tiller Evolution Autopilot

Features:

• A complete autopilot-in-a-box
• Evolution Ai for superior performance
• No calibration required
• Quick and easy installation
• Powerful tiller drive is compact and unobtrusive
• Used by the world's top single-handed sailors
• For tiller steered boats up to 13,200 lbs (6,000 kg)
• For 12V DC power systems
• Includes p70s Autopilot Controller

Includes:

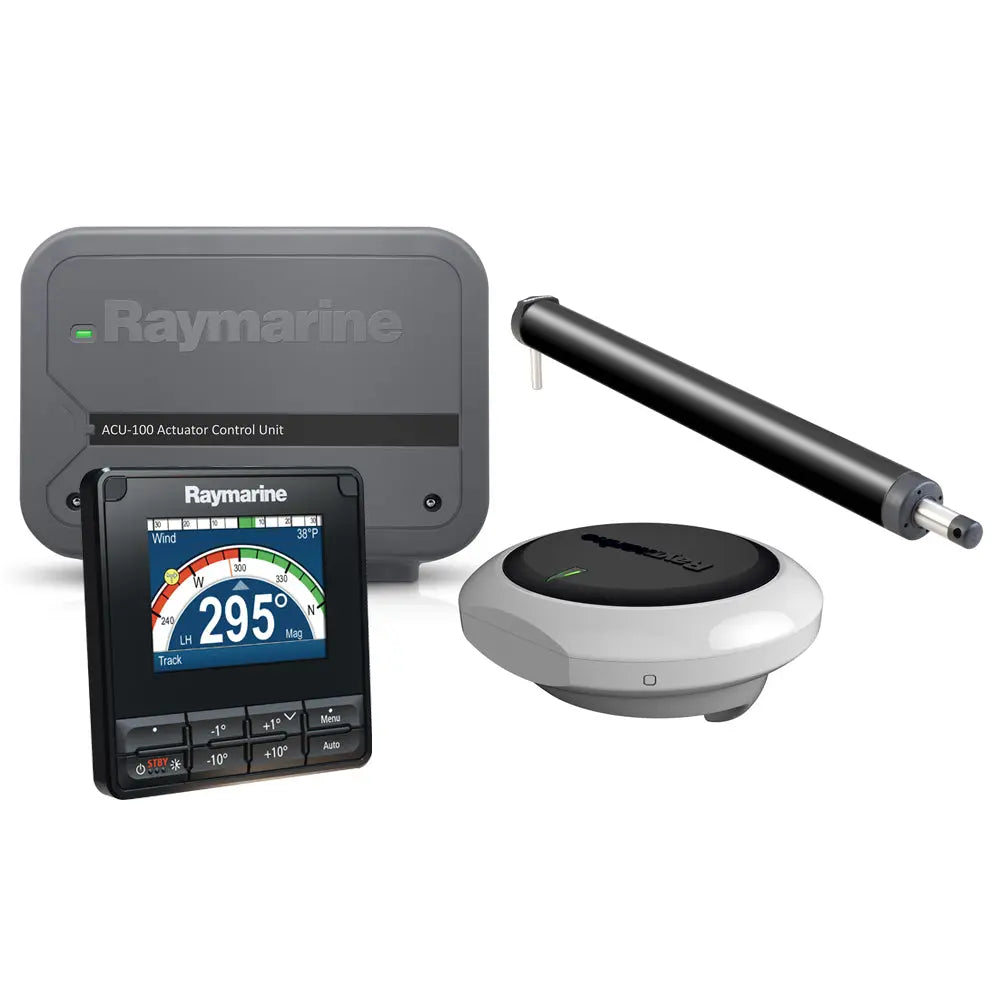

• EV-1 Sensor Core
• p70s Autopilot Control Head
• ACU-100 Actuator Control Unit
• Tiller Drive
• Tiller Pin (sold in packages of 5)
• Mounting Socket (sold in packages of 5)
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the =autopilot to evolve instantly as sea conditions and vessel dynamics change
• Flexible installation options
• Mount above or below deck
• Simple SeaTalk^ng connectivity to the control head and ACU
• Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70 Autopilot Control Head

The p70 is a push-button operation controller designed primarily for sailboats.

Features:

• LightHouse user interface is simple and quick to use
• Wide 160 viewing angles
• Start up wizard helps you configure the pilot quickly and easily
• Anti-reflective coating for improved visibility in bright sunlight
• Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Simple system and group dimming/illumination
• Support for multiple data sources
• SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-100 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Evolution Cabling Kit

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connector
• 2 x SeaTalk^ng Terminator

The Raymarine EV-100 Tiller Evolution Autopilot System offers advanced navigation capabilities designed for sailboats weighing up to 13,200 lbs. Featuring the innovative EV sensor core, this system provides precise monitoring of heading, pitch, roll, and yaw, ensuring the autopilot adapts instantly to changing sea conditions and vessel dynamics. The sensor core's solid-state technology delivers dynamic accuracy within 2 degrees, and its rugged, waterproof enclosure allows for flexible installation above or below deck, making it suitable for a variety of boat configurations.
Designed for seamless integration, the EV-1 sensor core connects via SeaTalk^ng networking, enabling a single cable to supply power and data to the autopilot components. This setup simplifies installation and enhances reliability. The system includes the powerful ACU-100 Actuator Control Unit, which supplies drive power for the tiller drive and interfaces with the control head and sensor. The compact tiller drive is unobtrusive yet powerful, making it ideal for single-handed sailors who demand precise, hands-free navigation.
The package comes with the p70s Autopilot Control Head, featuring a user-friendly interface with a wide viewing angle and anti-reflective coating for optimal visibility in bright sunlight. The control head supports multiple autopilot modes, including Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer, allowing for versatile operation. Additionally, the system includes a comprehensive cabling kit, mounting accessories, and EV unit O-Rings, ensuring an easy and secure setup.
Overall, the Raymarine EV-100 Tiller Evolution Autopilot System is a reliable, high-performance solution for sailors seeking effortless navigation and precise control. Its robust design, advanced sensor technology, and straightforward installation make it a preferred choice among single-handed sailors and experienced boaters alike.

Features:

• Complete autopilot-in-a-box with integrated components for easy setup

• Evolution Ai technology ensures superior autopilot performance and responsiveness

• No calibration required, enabling quick installation and start-up

• Powerful yet compact tiller drive reduces clutter and fits seamlessly on smaller vessels

• Suitable for sailboats up to 13,200 lbs (6,000 kg) with 12V DC power systems

• Includes the p70s Autopilot Control Head with intuitive user interface

• EV-1 Sensor Core with 9-axis monitoring for precise vessel motion tracking

• Flexible installation options—mount above or below deck

• Solid-state sensors deliver dynamic accuracy within 2 degrees

• Supports SeaTalk^ng and NMEA2000 networks for streamlined data and power connections
