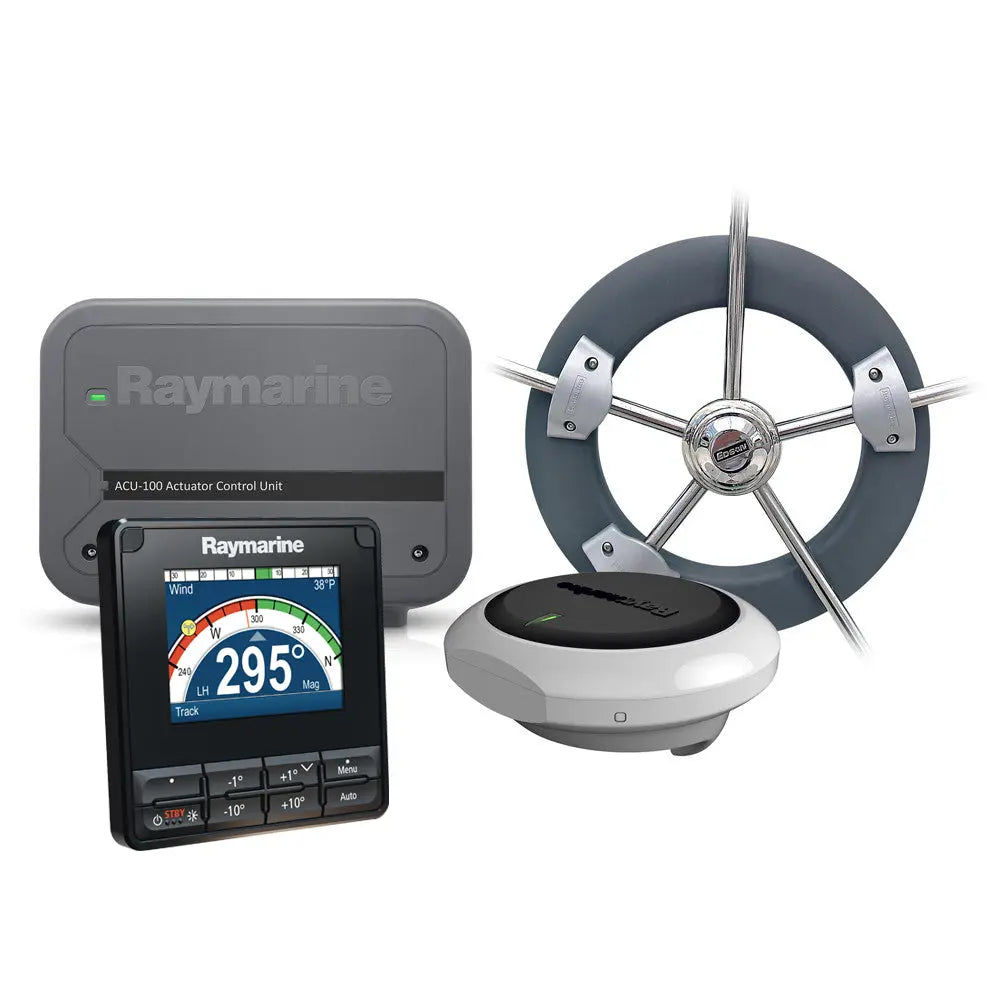

Raymarine EV-100 Wheel Evolution Autopilot System for Sailboats

EV-100 Wheel Evolution Autopilot

Features:

• A complete autopilot-in-a-box
• Evolution Ai for superior performance
• No calibration required
• Quick and easy installation
• Fits most types of sailboat wheels
• Simple, robust clutch engagement
• For boats up to 16,500 lbs (7,500 kg)
• For 12V DC power systems
• Includes p70s Autopilot Controller

Includes:

• EV-1 Sensor Core
• p70s Autopilot Control Head
• ACU-100 Actuator Control Unit
• Wheel Drive
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
• Flexible installation options. Mount above or below deck
• Simple SeaTalk^ng connectivity to the control head and ACU
• Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70s Autopilot Control Head

The p70s is a push-button operation controller designed primarily for sailboats.

Features:

• LightHouse user interface is simple and quick to use
• Wide 160 viewing angles
• Start up wizard helps you configure the pilot quickly and easily
• Anti-reflective coating for improved visibility in bright sunlight
• Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Simple system and group dimming/illumination
• Support for multiple data sources
• SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-100 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Evolution Cabling Kit

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connector
• 2 x SeaTalk^ng Terminator

The Raymarine EV-100 Wheel Evolution Autopilot is a comprehensive autopilot system designed for sailboats up to 16,500 pounds. It features the innovative EV sensor core, a 9-axis sensor that provides precise monitoring of vessel heading, pitch, roll, and yaw, ensuring the autopilot adapts instantly to changing sea conditions and vessel dynamics. The sensor's rugged, waterproof enclosure is suitable for both above and below deck installation, offering flexibility and durability in demanding marine environments.

The system includes the p70s Autopilot Control Head, featuring a user-friendly interface with a wide viewing angle, anti-reflective coating for sunlight visibility, and support for multiple autopilot modes such as Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer. The ACU-100 Actuator Control Unit provides reliable drive power and power to the SeaTalkng bus, ensuring seamless integration with your steering system. The package also includes the EV-1 Sensor Core, Evolution cabling kit, and mounting accessories for straightforward installation.

Designed for ease of use and robust performance, the EV-100 system employs Evolution AI for superior autopilot performance without the need for calibration. Its quick installation process, combined with simple SeaTalkng connectivity, allows for a clean and efficient setup. The system supports high-accuracy heading data essential for MARPA, radar overlay, and heading modes on Raymarine multifunction displays, making it suitable for serious sailors seeking reliable navigation assistance. Whether you are cruising or racing, this autopilot system offers advanced features and durable construction to enhance your sailing experience.

Features:

• Complete autopilot-in-a-box system for sailboats up to 16,500 lbs

• Evolution AI technology for superior autopilot performance

• No calibration required for quick setup

• Easy installation with flexible mounting options above or below deck

• Compatible with most sailboat wheel types and steering systems

• Robust clutch engagement mechanism for reliable control

• Includes EV-1 Sensor Core with 9-axis motion monitoring

• Simple SeaTalkng connectivity for power and data transfer

• High-precision solid-state sensors deliver dynamic accuracy within 2 degrees

• Supports multiple autopilot modes for versatile navigation

• p70s Autopilot Control Head with wide viewing angles and user-friendly interface

• ACU-100 Actuator Control Unit for reliable drive power

• Comprehensive cabling kit for streamlined setup

• Rugged waterproof enclosure for sensor durability in marine environments
