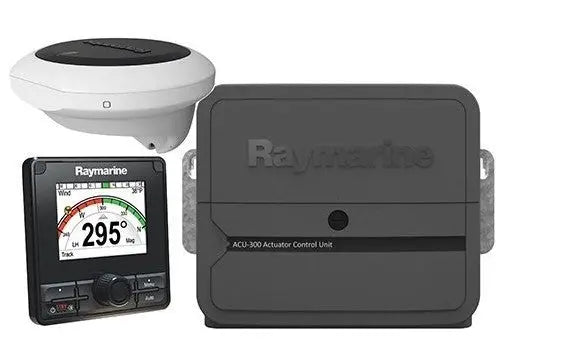

Raymarine EV300 Solenoid Autopilot

Raymarine EV300 Solenoid Autopilot

Raymarine EV300 Solenoid

Autopilot

Model: T70160

• For vessels with solenoid controlled hydraulic steering


• Evolution Ai for superior performance


• No calibration required


• SeaTalkNG Network Compatible


• ACU-300 auxiliary power to SeaTalkNG network

Evolution EV-300 Solenoid Autopilot Kit without Drive for Power Vessels by Raymarine®. No fuss, easy to install and robust - the Evolution autopilot combines Raymarine's autopilot expertise, FLIR Systems' R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.

Specifications

ACU Nominal Power supply
12 V or 24 V

ACU Operating voltage range
10.8 V to 31.2 V dc

ACU Power consumption (standby) — main power supply
300 mA (12 / 24 V)

ACU Power consumption(standby) — SeaTalkng power supply
20 mA (12 V)

ACU SeaTalkng LEN (Load Equivalency Number)
1

ACU SeaTalkng LEN (Load Equivalency Number)
3 A at 12 V (fuse protected at 3 A)

ACU Data connections
SeaTalkng

ACU Waterproofing rating
drip resistant

ACU Operating temperature
-20°C to +55°C (-4°F to +131°F)

ACU Relative Humidity
max 93%

ACU Weight
2.2 kg (4.84 lbs)

EV Sensor Nominal Power supply
12 V (powered by SeaTalkng system)

EV Sensor Operating voltage range
10.8 V to 15.6 V dc

EV Sensor Power consumption
30 mA

EV Sensor SeaTalkng LEN (Load Equivalency Number)
1

EV Sensor Waterproofing rating
IPX 6

EV Sensor Operating temperature
-20°C to +55°C (-4°F to +131°F)

EV Sensor Relative Humidity
max 93%

EV Sensor Sensors
3-axis digital accelerometer; 3-axis digital compass and 3-axis gyro digital angular rate sensor

EV Sensor Weight
0.29 kg (0.64 lbs)

What's in the Box:

• EV-1 Sensor Core


• P70RS Autopilot Control Head


• ACU-300 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference)


• Evolution Cabling Kit


• EV Unit O-Ring Pack (set of 2)


• Wall Mounting Bracket
