Raymarine HV-100.02 HyperVisio Transom Mount Transducer

Raymarine HV-100.02 HyperVisio Transom Mount Transducer

Raymarine HV-100.02 HyperVision Transom Mount Transducer

Model: E70643

• Transom Mount


• Deadrise Angles: 0 - 90°

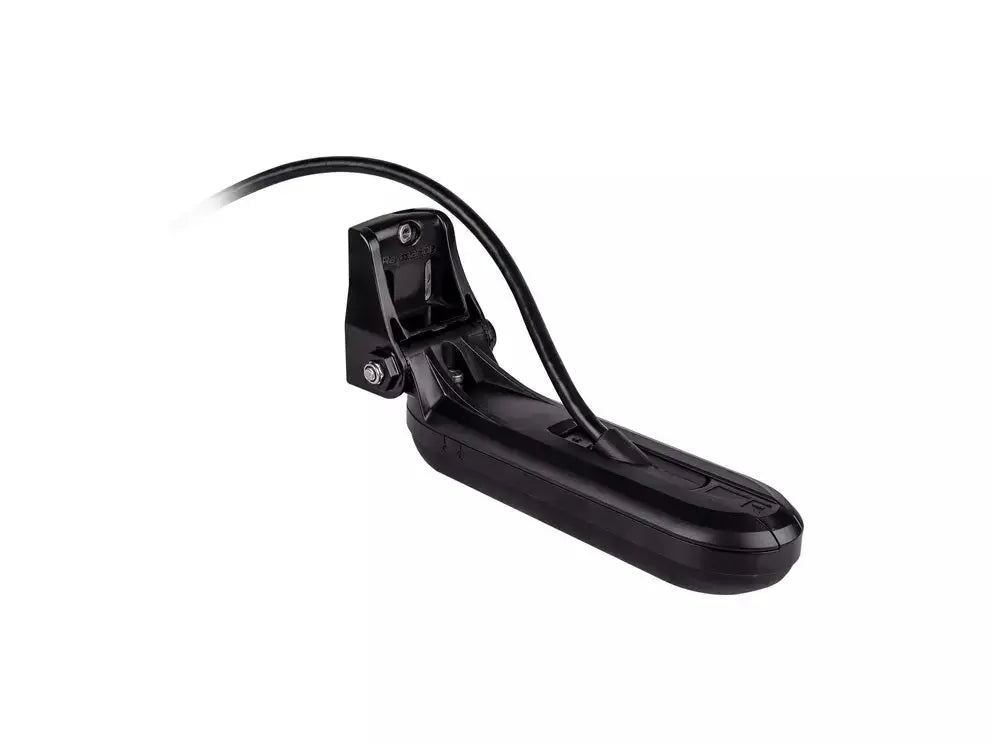

The HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision and Conical High Frequency CHIRP, this is the only shallow-to-medium depth transducer you'll ever need.

1.2MHz HyperVision DownVision and SideVision frequencies offer the utmost in clarity and lifelike sonar imaging.

Material
Plastic

Max Depth
3D: 300 / Down: 600 / Port: 300 / Starboard: 300 / Conical: 900

Frequency
1.2 MHz CHIRP / 350 kHz CHIRP / 200 kHz High CHIRP

Beam Width
3D: 180° / Down: 60° / Conical: 25°

Records
Depth / Temperature

Hull Material
Fiberglass / Metal

Cable Length
19 Ft. / 6 M.

Dimensions
Length: 224.99 mm (8.86 in), Height: 112.69 mm (4.44 in), Width: 76.00 mm (2.99 in)

What's in the Box:

• E70643 HyperVision 3D transducer with 6 m (19.69 ft) fitted cable


• Transom bracket


• Bracket fixing screws (4.2x19 mm A4 stainless steel) x3


• M5x10 hex bolt (A4 stainless steel)


• M5 washer (A4 stainless steel)


• Hanger bracket


• Escutcheon plate (used when routing cable through transom or a bulkhead)


• Adjustment slot washers x2


• Escutcheon plate fixings (#8x13 SUS316) x4


• Cable clips x3


• M6x70 hex bolt (A4 stainless steel)


• M6 washer (A4 stainless steel)


• M6 locking nut


• Documentation
