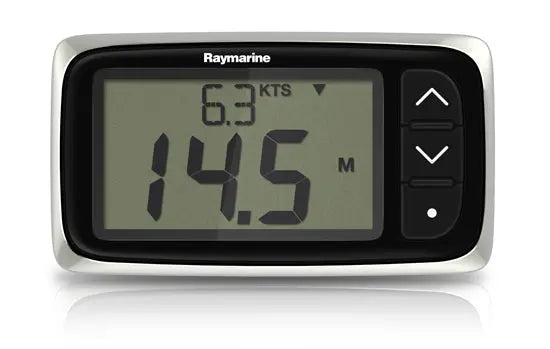

Raymarine i40 Bidata Display

Raymarine i40 Bidata Display

Compact Digital Displays



Big displays for smaller powerboats, yachts and RIBs, these compact yet powerful SeaTalk instrument displays offer full integration with Raymarine autopilots and navigation equipment and can be surface or trunnion mounted.



Extra large (28mm max) digits and razor sharp LCDs - easy to use Raymarine i40 instrument displays have outstanding visibility in all lighting conditions.



Key features:

• Red backlighting for improved visibility
• Large controls for ease of use at sea
• Low power consumption for increased battery life.
• SeaTalk interface (SeaTalk^ng when used with SeaTalk converter)
• Built-in transducer interface
• Same footprint as the older Raymarine ST40 instrumentation

Available Raymarine i40 Instrument Displays





i40 Depth

• Crystal clear depth readout
• Shallow and deep anchor alarms
• Minimum depth display

i40 Speed

• Shows current, maximum and average boat speed, log trip and sea temperature





i40 Bidata

• Speed, depth, log and sea temperature.
• Two sets of data at once in large or small digits

i40 Wind

• Apparent wind speed and direction and true wind speed and direction.
• Talks to your autopilot to steer your boat to a selected apparent wind angle.



Models Available Speed Depth Wind Bidata Display only part numbers: E70063 E70064 E70065 E70066 Dimensions 5.04" x 2.83" x 1.37" Nominal voltage 12V DC Operating voltage range 10 - 16V DC Current consumptions (12V supply) typical Speed and Wind: 25mA Depth: 30mA Bidata: 35mA Current consumptions (12V supply) maximum 100 mA Operating temperature -20°C to +55°C Storage temperature 88mm segmented LCD Relative humidity 93% Water proofing IPX6 Connections SeaTalk, Speed transducer connections, Depth transducer connections Conformance Europe 2004/108/EC
