Raymarine i50 Tridata Display – Marine Instrument with Speed and Depth Functions

i50 SeaTalk^ng Instruments - Tridata

The i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalk^ng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.

For the ultimate in flexibility the i50 Instruments support SeaTalk^ng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalk^ng smart transducer data: the choice is yours.

The ultra-sleek design of i50 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.

i50 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.

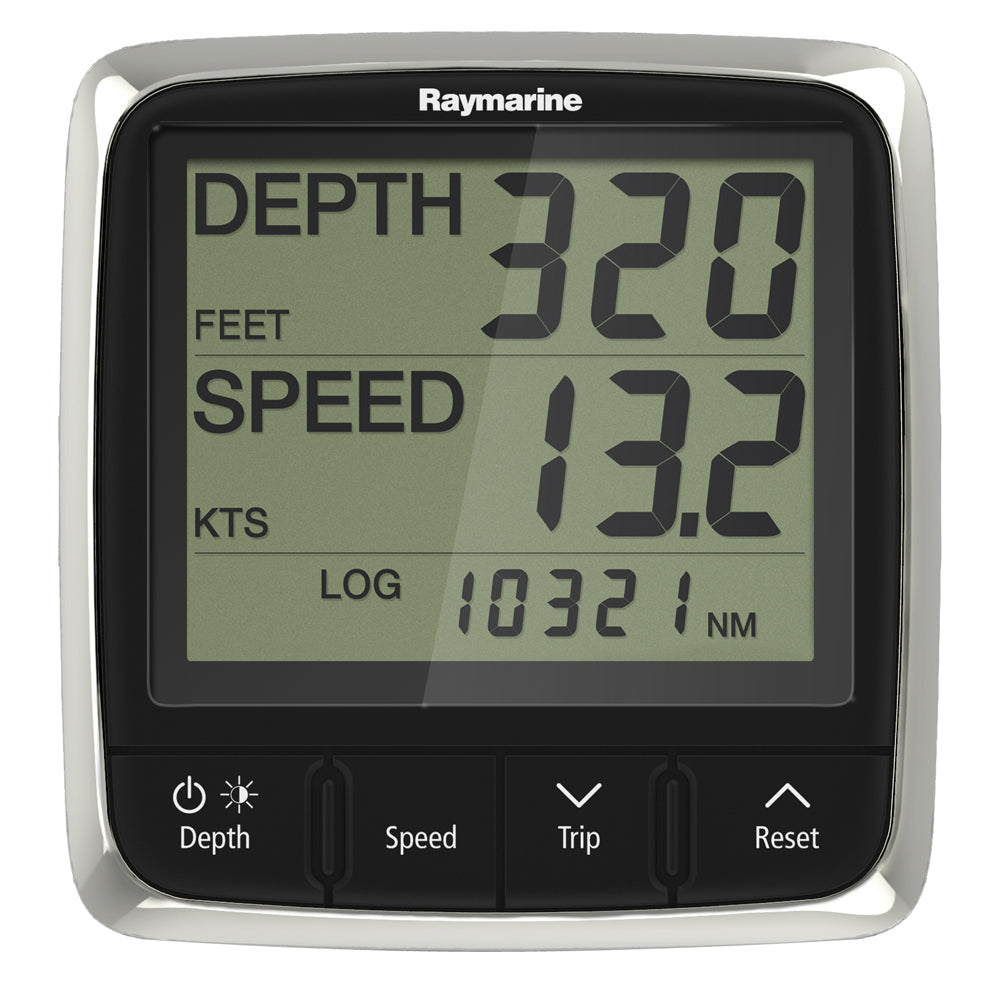

i50 Tridata Instrument
The i50 Tridata is a convenient 3-line instrument that combines the functions of the Speed and Depth Instruments into one display. This makes the i50 Tridata ideal for installations on helms where space is a premium, or as a depth and speed repeater solution for other locations on the boat.

• Red backlighting for outstanding night-time visibility.

• SeaTalk^ng and SeaTalk-1 connectivity for maximum flexibility

• Use a primary display or as repeater of i50 depth and speed instruments

• Built-in depth and speed transducer connections

The i50 Tridata's 3-line LCD display can show current depth, current speed, distance log, trip log and water temperature. Additional display modes include maximum speed, average speed, and VMG to windward. For racers, Tridats has a count-up timer, and 2 race start timers. Tridata's robust alarm functions include a shallow depth alarm, deep depth alarm, shallow anchor alarm and deep anchor alarm.

i50 Key Features

• Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems.

• Large, crisp LCD displays with high contrast for excellent visibility.

• Red backlighting for outstanding night-time visibility.

• SeaTalk^ng and SeaTalk-1 Networking for maximum flexibility.

• Fully compatible with i70, p70 and p70R Color Instruments and Autopilots.

• 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy

The Raymarine i50 Tridata Display offers boaters a compact yet highly functional instrument solution designed to enhance navigation and vessel monitoring. Featuring a sleek, ultra-modern design, this 3-line LCD instrument combines speed and depth measurement functionalities in one compact unit, making it ideal for space-constrained helm stations or as a dedicated repeater for other locations on your boat. The large, high-contrast LCD display with red backlighting ensures clear visibility in all lighting conditions, including nighttime operations, providing essential data at a glance.

Built with flexibility in mind, the i50 Tridata supports both SeaTalk^ng and SeaTalk-1 networking protocols, allowing seamless integration with existing Raymarine systems and easy upgrades from older instruments. It features built-in connections for water depth and speed transducers, enabling direct measurement and display of vital vessel data. The instrument can operate as a primary display or as a repeater, displaying current depth, speed, water temperature, trip and distance logs, as well as maximum and average speeds. For competitive sailors, it includes race timers and VMG to windward calculations, while onboard safety is enhanced with alarms for shallow or deep water and anchor alarms.

Designed to complement Raymarine's full line of multifunction displays and autopilots, the i50 Tridata boasts a modern aesthetic that matches Raymarine’s a-Series, c-Series, and e-Series systems. It comes with a low-profile surface mounting kit and a silicone rubber sun cover for protection against harsh marine environments. The instrument operates efficiently on 12V DC power, drawing less than 2.5W when hosting transducers or under normal operation, and is rated waterproof to IPX6 standards. Raymarine provides a 2-year warranty on the i50 Tridata, with an optional upgrade to 3 years available at no additional charge by registering online within 90 days of purchase.

Whether used as a standalone instrument or integrated into a larger Raymarine system, the i50 Tridata display delivers reliable, easy-to-read data crucial for safe and efficient vessel operation. Its compatibility with Raymarine's multifunction displays, autopilots, and other instruments makes it a versatile choice for recreational boaters and professional mariners alike, ensuring you stay informed and in control at all times.

Features:

• Large, high-contrast LCD display with red backlighting for excellent night visibility

• Supports SeaTalk^ng and SeaTalk-1 networking for flexible system integration

• Built-in connections for depth and speed transducers for direct measurement

• Can operate as a primary display or as a repeater of i50 depth and speed instruments

• Displays current depth, speed, water temperature, trip and distance logs, maximum and average speeds

• Includes race timers, VMG to windward calculations, and multiple alarm functions for safety

• Modern, sleek design complements Raymarine's a-Series, c-Series, and e-Series multifunction displays

• Low-profile surface mounting kit included; optional bracket mount available

• Operates efficiently on 12V DC power, drawing less than 2.5W during hosting

• Waterproof to IPX6 standards for durability in harsh marine environments
