Raymarine i60 Instrument Displays

Stylish displays for sailboaters!

The new i60 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunctional displays. Designed specifically for sailboaters, these stylish, dedicated-function instruments cover wind and close-hauled wind options in analogue and digital formats.

Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.

Features

• Large analogue dials
• Red backlighting for improved visibility
• SeaTalk and SeaTalk^ng interfaces
• NMEA2000 (compatible) interface
• Built-in transducer interface
• 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation
• Large controls for ease of use at sea
• Low power consumption
• Multiple data source support eliminates potential data conflicts
• Front mounted design for simple installation

Raymarine i60 Instrument Displays

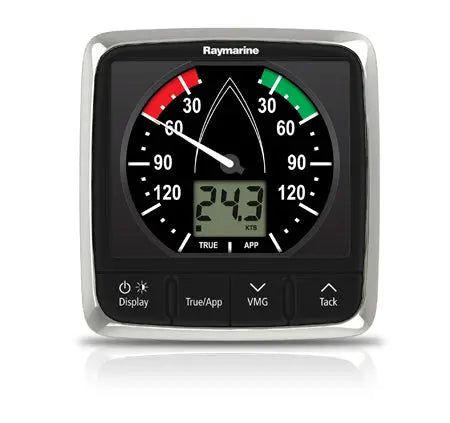

  Raymarine i60 Wind Instrument Display

• Analogue and digital data
• Calculates apparent (relative) and true wind speed/angle (true wind requires SeaTalk speed through water data)

Raymarine i60 Close Hauled Wind Instrument Display

• Magnified 20° - 60° display
• The perfect instrument when a single degree can make all the difference

Models:

i60 Wind

i60 Close Haul Wind

E70061

E70062

Nominal Voltage

12V DC Operating Voltage

Range

10 - 16V DC Power Consumption

typically <1W (display only) and 2.4W maximum with transducer connected Current Consumption

45 to 65mA (display only) and 200mA maximum with transducer connected Operating Temperature Range

-20°C to +55°C Storage Temperature

-30°C to +70°C Relative Humidity

up to 93% Waterproofing Standard

IPX6 Connections

2 x SeaTalk^ng and transducers Conformance

Europe 2004/108/EC
