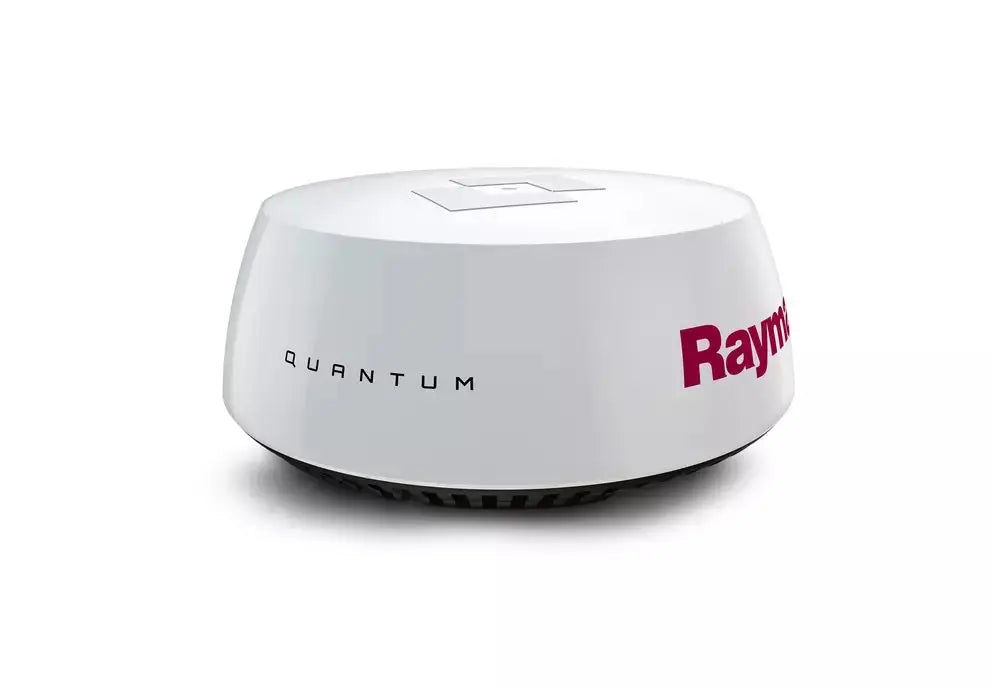

Raymarine Quantum Q24C 18in Wifi Dome With 15M Cables

Raymarine Quantum Q24C 18in Wifi Dome With 15M Cables

Raymarine Quantum Q24C 18" CHIRP Radar, WiFi and Cabled capable W/15m cable

Model: T70266
UPC: 723193783931

Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.

Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

Superior Radar Imaging
FLIR’s exclusive ATX advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality

CHIRP Pulse Compression
Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges

Small Target Detection
Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.

Immediate Awareness
Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.

Simplified Installation
Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. Quantum’s small diameter power cable is easy to route through tight spaces. Easy to upgrade — Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables

Energy Efficient and Lightweight Design
Weighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum’s low power solid state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). Extended vessel battery life when under sail

Specifications

Input voltage
12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)

Networking
Wi-Fi or wired Ethernet (RayNet)

Antenna type
Patch Array

Power consumption
Transmit mode 17W; standby mode 7W; sleep mode 2W

Range
Scales From 1/16 to 24 nautical miles

transmit frequency
9354 to 9446 MHz

Peak power output
20w

Duplexer
Circulator

Pulse Widths
40 ns to 14.7 s

CHIRP Lengths
400 ns to 20 s

CHIRP Bandwidth
Up to 32 MHz

IF Bandwidth
26 MHz

Noise
Less than 4 dB

Max. Range Scale
from 1/16 to 24 nautical miles

Beamwidth (nominal)
4.9 horizontal and 20 vertical

Polarisation
Horizontal

Waterproofing
IPX6

Weight
5.6 kg (12.3 lb)

What's in the Box:

• Quantum radome


• 15m power cable


• 4 - M8 bolts with flat and spring washers


• Documentation pack


• 15 M Data Cable
