SKU:84305

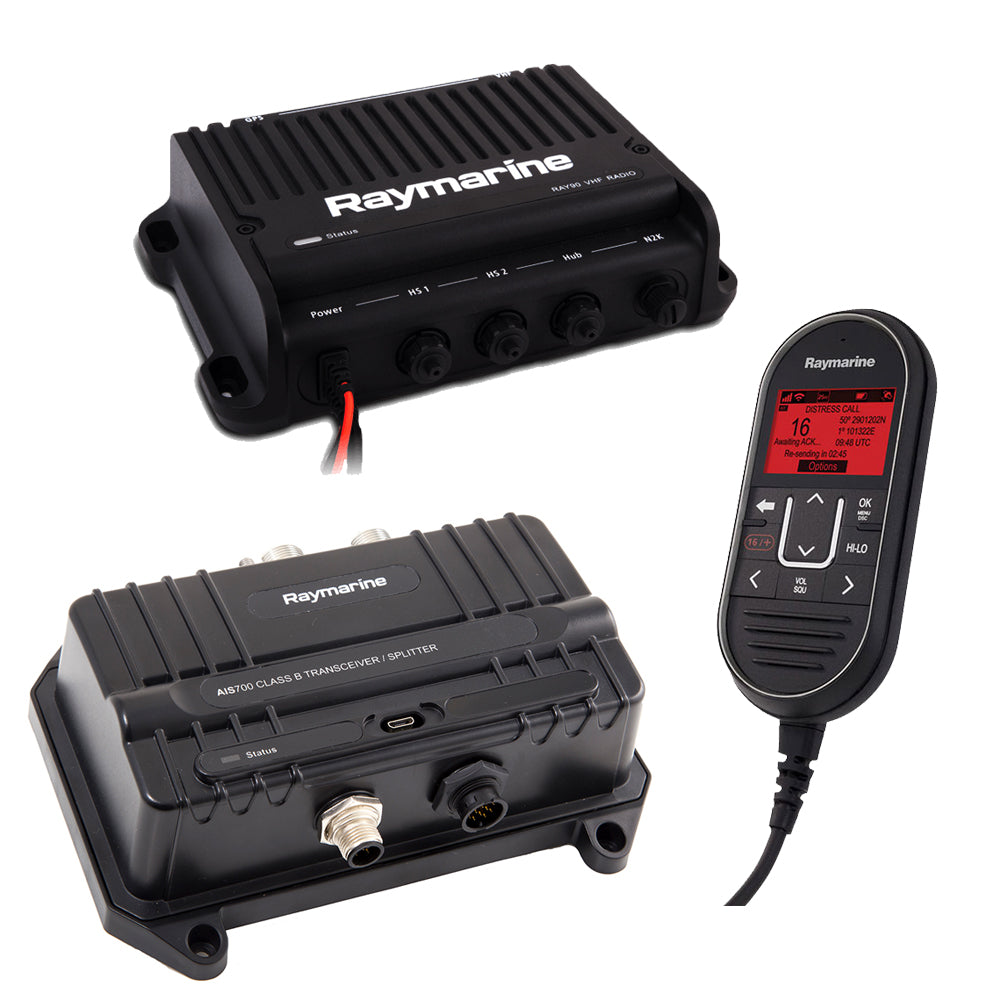

Ray90 VHF Radio AIS700 Bundle
Ray90 VHF Radio
Raymarines fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.
Features:
Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessels MMSI number during setup and youre ready to go. For GPS operation the optional GA150 passive GPS antenna is required.
Position Tracking
Use Ray90s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.
Loudhailer
Ray90s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.
Waterproof Ruggedized
Ray90s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.
Expand Your System
The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.
In the Box:
AIS700 Class B AIS Transceiver with Antenna Splitter
**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**
The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. AIS is an international marine navigation safety system that allows participating vessels to silently exchange key navigation information including vessel name, identification, course, speed and more. AIS contacts can be displayed on Raymarine multifunction displays, chartplotters, radar displays and select instruments. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boats information too helping you to be seen on other vessels systems.
The AIS700 is engineered using the very latest SO-TDMA (Self Organized Time Division Multiple Access) networking technology which allows it to perform faster and at longer ranges than d speed over previous generation AIS products. For ease-of-installation, the AIS700 has a built in VHF-band antenna splitter which allows it to share a single antenna with your current VHF radio. AIS700 also has its own internal, dedicated 72-channel GPS receiver with external antenna as required by international standards.
AIS700 also supports both hardware and software-enabled Silent Mode. This allows you to temporarily restrict broadcasting your vessels own data, while continuing to receive updates from surrounding traffic. Silent Mode can be particularly useful when transiting waters where extra security is a concern, or even in competitive tournament scenarios when you might want to prevent other from finding out the location of the hot bite. Normal AIS safety broadcasts can be easily reinstated with a few simple touches of the AIS controls in your Raymarine MFD, or with the flip of a switch for hardware-silenced systems.
The AIS700 is super-compact for easy mounting inside your helm, in a service locker, or other out-of-the-way location. It can connect to your other onboard electronics using the latest NMEA2000 networking. AIS700 also has a built-in NMEA0183 multiplexer to assist in connecting it to older MFDs and VHF radio systems. AIS700 also has a built-in USB 2.0 connection that can be used to tie the transceiver into a computer or laptop running AIS compatible navigation software. AIS700 has a Secure Digital (SD) memory slot that can be fitted with an owner-suppled flash memory card for continuous recording of the AIS data stream.
Features:
In the Box:
The Raymarine Ray90 VHF Marine Radio with AIS700 Class B AIS Transceiver Bundle offers advanced communication and navigation safety features for recreational and commercial vessels. The Ray90 VHF radio features a sleek black-box design with a powerful 25-watt transmitter, ensuring reliable two-way communication across your vessel and with nearby boats. Its modular setup allows for multi-station capabilities, supporting wireless handsets and active speakers for seamless control throughout your boat. The included wired handset and passive speaker facilitate immediate operation, while the expandable system accommodates up to two handsets for larger vessels or crew needs. Built-in features like channel scanning, dual-watch, tri-watch, and weather alerts enhance situational awareness during your voyage. The radio’s Class D Digital Selective Calling (DSC) and integrated GPS make emergency communication and vessel identification straightforward, especially when you input your MMSI number during setup. An optional external GPS antenna (GA150) is available to improve positioning accuracy and navigation safety. The Ray90’s robust construction, with a cast aluminum transceiver, ensures durability against shock, vibration, and harsh marine environments. Its super-bright backlit RayMic handset and oversized keys guarantee ease of use in all lighting conditions, including inclement weather or nighttime. The system supports simple NMEA2000 and NMEA0183 networking, allowing integration with other onboard electronics for comprehensive vessel monitoring. The built-in loudhailer with 30-watt output and two-way talkback enhances onboard communication and safety, enabling clear announcements and fog signals. The loudhailer can be programmed to automatically sound fog signals for vessels underway or at anchor, ensuring compliance with maritime safety protocols. The Ray90 system includes essential accessories such as a RayMic wired handset, passive speaker, mounting hardware, and a device network adaptor, with options to expand with additional handsets and remote speakers. The AIS700 Class B transceiver complements the system by providing real-time vessel tracking and collision avoidance data. Equipped with the latest SO-TDMA technology, the AIS700 delivers longer-range, faster data exchange, and features a built-in antenna splitter that simplifies installation by sharing a single VHF antenna with your radio. It also incorporates a dedicated GPS receiver, supporting both hardware and software Silent Mode for secure operation when needed. Its compact design allows discreet mounting in tight spaces, while multiple connectivity options—including NMEA2000, NMEA0183, USB, and SeaTalkng—facilitate integration with existing marine electronics. The AIS700 also supports data logging via a SD card, enabling continuous recording of AIS traffic. This bundle provides everything necessary for enhanced safety, reliable communication, and vessel tracking, making it ideal for serious boaters seeking professional-grade marine electronics. Whether for coastal cruising, fishing, or safety monitoring, the Raymarine Ray90 and AIS700 combination ensures comprehensive onboard connectivity and situational awareness.
Features:
