SKU:72773

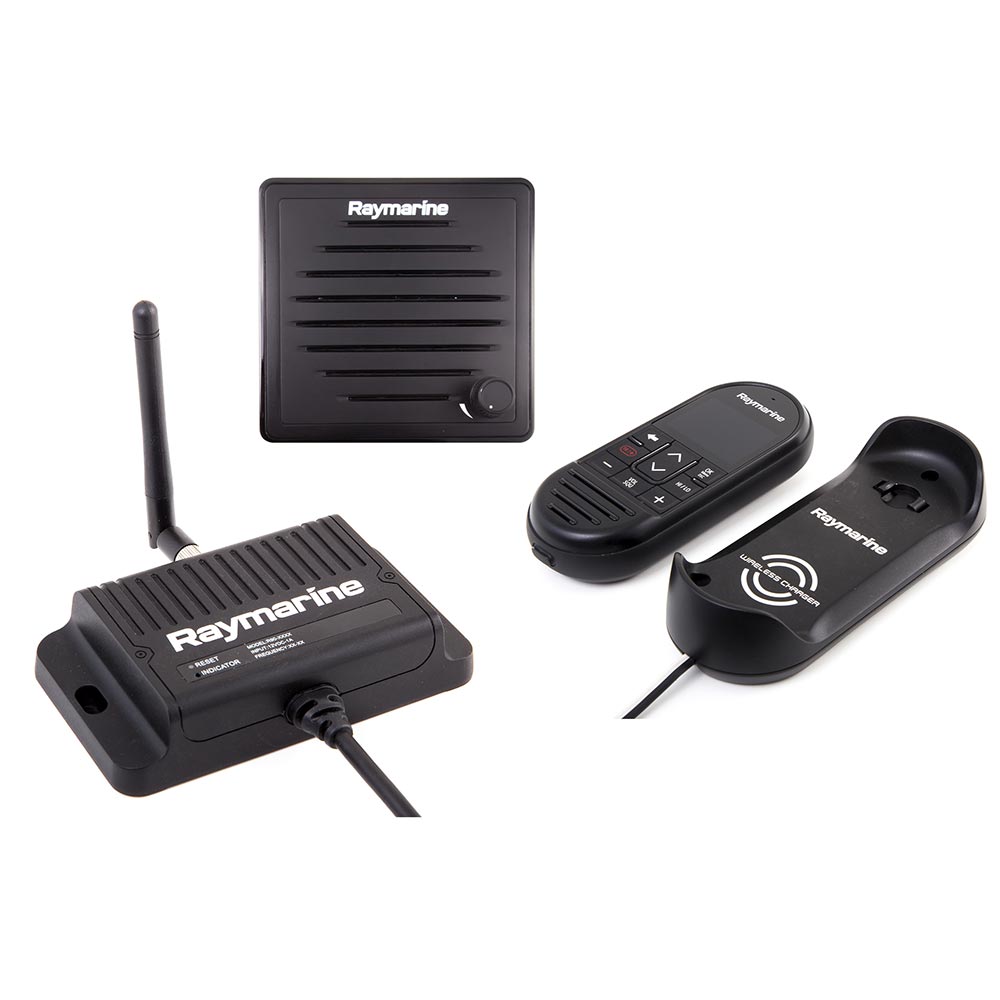

Ray90 Wireless First Station Kit with Passive Speaker, Wireless Handset Wireless Hub
Modular Dual-Station VHF Radio System
Raymarines fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.
Features:
Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessels MMSI number during setup and youre ready to go. For GPS operation the optional GA150 passive GPS antenna is required.
Position Tracking
Use Ray90s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.
Loudhailer
Ray90s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.
Waterproof Ruggedized
Ray90s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.
Expand Your System
The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.
The Raymarine Ray90 Wireless First Station Kit offers a versatile and powerful communication solution for boats of all sizes. This modular VHF radio system features a black box transceiver that provides a sleek, space-saving design while supporting multiple stations. The kit includes a wireless handset, passive speaker, and wireless hub, enabling seamless communication across your vessel with crystal-clear audio. Its expandable architecture allows for up to two handsets, making it suitable for both small and large boats. The Ray90’s commercial-grade electronics deliver reliable performance with a 25-watt transmitter, supporting essential functions such as channel scanning, dual-watch, tri-watch, and weather alerts for safe navigation. Built-in safety features like Class D Digital Selective Calling (DSC) and integrated GPS (via optional antenna) facilitate quick distress signaling and position sharing, enhancing safety during your voyage. The system also supports NMEA2000 and NMEA0183 networking, enabling integration with other marine electronics for comprehensive vessel management. The Ray90’s position tracking capability allows monitoring of up to five nearby DSC-equipped vessels, with automatic position sharing through Raymarine MFDs, suitable for cruising, fleet management, or inland waterways in Europe that utilize the ATIS system. The built-in loudhailer provides 30-watt audio output for onboard communication and emergency signaling, with optional hailing horn and automatic fog signal capabilities for enhanced safety in adverse conditions. Its rugged construction, with a cast aluminum transceiver housing, ensures durability against shock, vibration, and harsh marine environments. The RayMic handsets feature bright backlit displays and oversized keys for easy operation in low-light conditions or rough seas. Expandability is straightforward with optional additional handsets and remote speakers, including active options for noisy environments. Overall, the Raymarine Ray90 Wireless First Station Kit combines advanced communication features, robust design, and flexible expansion options to meet the demanding needs of recreational and commercial mariners alike.
Features:
