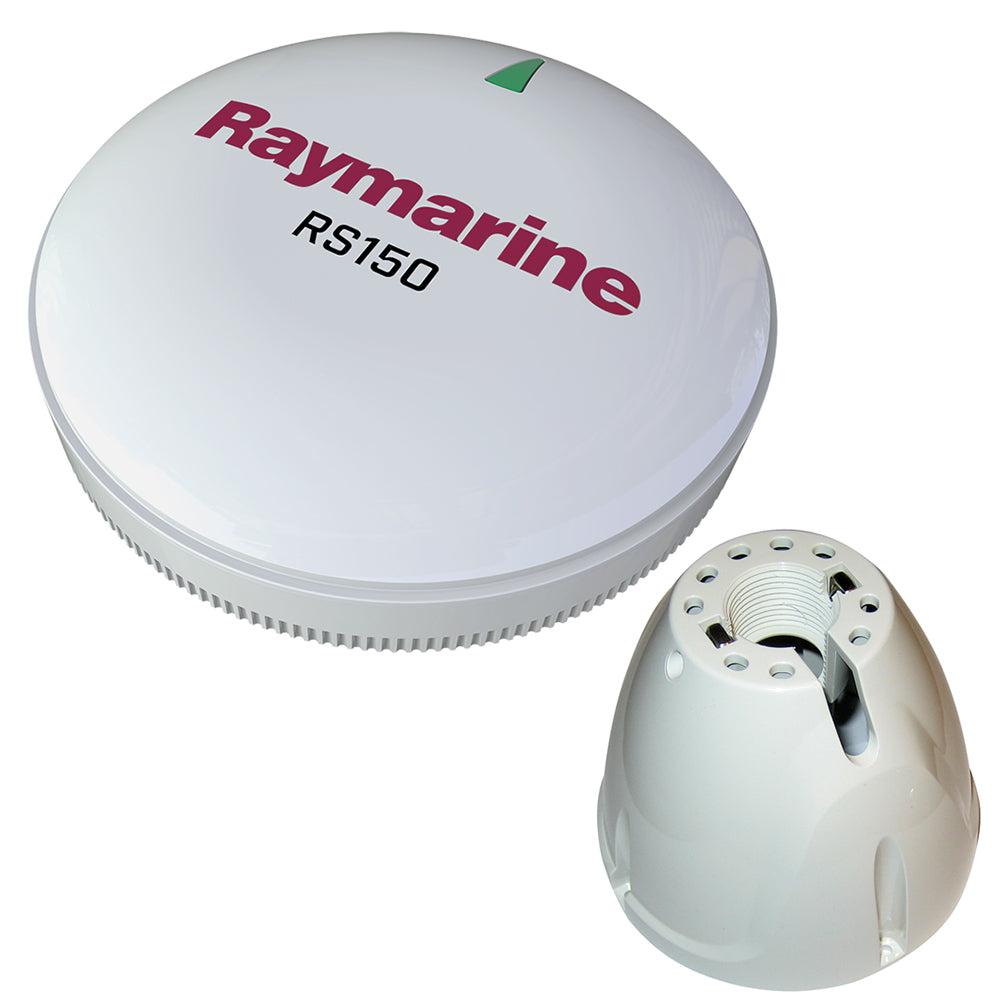

Raymarine RayStar 150 GPS Sensor with Pole Mount - High-Performance 72-Channel GNSS Receiver

RayStar 150 GPS Sensor w/Pole Mount

RS150 GPS Sensor

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

Features:

• 72-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
• A GNSS receiver with GLONASS compatibility
• Low power consumption: 30mA (1 LEN)
• SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
• Designed for low profile surface mounting or optional pole mounting

Specifications:

• Nominal supply voltage: 12V D.C. Powered by N2K bus
• Operating voltage range: 8 - 32V DC
• Power consumption: 30 mA max (NMEA LEN = 1)
• Operating temperature: -13F to 131F (-25C to +55C)
• Relative humidity: max 93%
• Waterproof: IPx6/7
• Supported connection protocols: SeaTalk^ng: NMEA 2000 (certified) (via DeviceNet adaptor)
• Sensitivity: High sensitivity - acquisition down to -163dBm
• No. of channels: 72
• Positioning System: GPS GLONASS
• Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
• Differential acquisition: Automatic
• Position accuracy (95%): lt;15M
• Position accuracy with SDGPS (95%): lt;5M
• Speed accuracy (95%): lt;0.3kt
• Time to first fix from cold start: lt;2 minutes (lt; 45 seconds typical)
• Time to first fix from hot start: lt; 8 seconds -72 hour hold up battery allows for hot start
• Geodetic Datum: WGS84

Pole Mount for RS150 GPS Antenna

Raymarines Pole Mount specifically for the RS150 GPS Antenna. The RS150 has 72 channels and offers faster 10Hz performance and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

The Raymarine RayStar 150 GPS Sensor with Pole Mount is a reliable and precise navigation accessory designed for marine applications. Featuring a high-performance 72-channel GPS and GLONASS receiver, this sensor provides quick and accurate positioning updates at a rate of 10Hz, ensuring your navigation remains smooth and responsive. Its compatibility with SeaTalkng and NMEA2000 protocols via a device net adapter cable allows seamless integration with Raymarine navigation systems. The RS150 supports satellite differential GPS with SBAS enhancements like WASS, EGNOS, MSAS, and GAGAN, enabling superior accuracy with a typical position error of less than 15 meters, and less than 5 meters when using SDGPS. Designed for low power consumption at just 30mA, the sensor is suitable for extended use without draining your vessel's power supply. It is built for harsh marine environments with an IPx6/IPx7 waterproof rating and can operate within temperatures ranging from -13°F to 131°F, making it suitable for diverse conditions. The sensor’s high sensitivity allows acquisition down to -163dBm, ensuring reliable signal reception even in challenging environments. The pole mount option provides flexible installation for surface mounting or elevated positioning, optimizing signal quality and ease of setup. The RayStar 150 GPS Sensor is an essential component for any marine navigation system requiring precise, fast updates and robust satellite compatibility, supporting the latest GNSS features for safe and accurate navigation at sea.

Features:

• 72-channel GPS receiver for high accuracy and reliability

• Fast 10Hz position updates for responsive navigation

• Supports satellite differential GPS with SBAS (WASS, EGNOS, MSAS, GAGAN)

• Compatibility with GLONASS satellite system for enhanced coverage

• Low power consumption at only 30mA for efficient operation

• Seamless integration with SeaTalkng and NMEA2000 networks via adapter cable

• Designed for low profile surface mounting or pole mounting for flexible installation

• Waterproof IPx6/IPx7 rating for durability in marine environments

• High sensitivity receiver with acquisition down to -163dBm

• Supports automatic differential acquisition for improved accuracy
