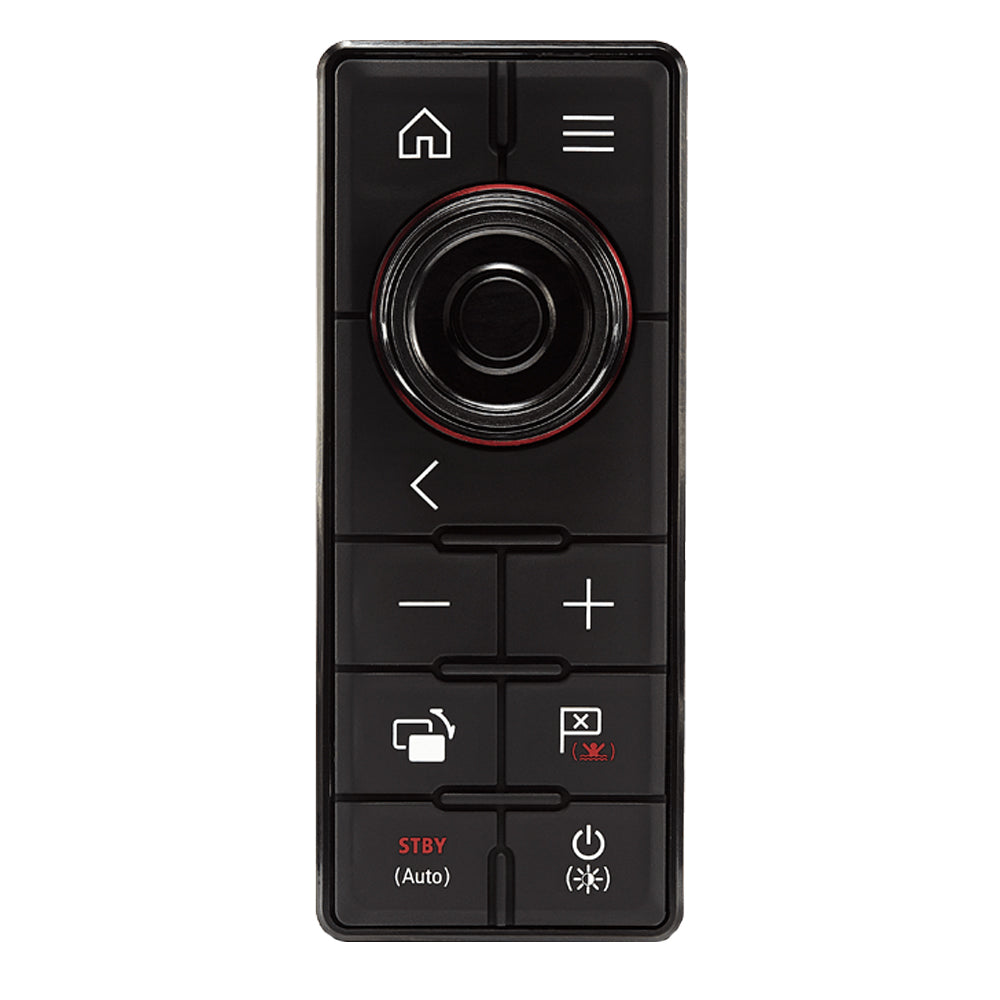

RMK-10 System Remote Control Portrait KeypadRemote Keypad is an ultra-compact wired keypad accessory that provides full control of aSeries, cSeries, eSeries, eS Series and gS Series Multifunction Displays (MFDs) from any mounting location.
The fully backlit RMK-10 includes dedicated keys for home, menu, zoom in/out, window control, waypoint management, power/brightness, as well as Evolution autopilot control.
RMK-10 also features the same multifunction rotary controller with the integrated cursor pad found on eS Series multifunction displays
The RMK-10 can be surface-mounted or flush-mounted, and is available with key mats for horizontal or vertical installation. This gives you the flexibility to install the RMK-10 just about anywhere.
Utilising Raymarines RayNet high speed networking, the RMK-10 can be setup to control a single multifunction display, or multiple displays mounted at the same location. When controlling multiple displays on the same helm, the RMK-10 provides seamless control across all of the displays.
When used with aSeries or gS Series Multitouch displays, the RMK-10 brings full HybridTouch control capability to these products. The RMK-10 integrates seamlessly with the LightHouse II user interface and allows the navigation system to be operated solely by touch, by keypad, or any variation between.
Mounting OptionsThe RMK-10 is the perfect solution for controlling MFDs mounted beyond arms reach, or in overhead electronics boxes. Instead of reaching for the MFD, the RMK-10 brings the systems controls to you.
For the ultimate in convenience, mount the RMK-10 in the arm of your favorite helm chair. Now its easy to sit back, relax and enjoy the ride on autopilot, while still being able to interact with your navigation system.
RMK-10 is also great for bringing remote system control to secondary monitors and onboard LCD TV sets connected to the VGA or HDMI output of select e-Series, eS-Series and gS-Series displays. Now you can see and control your Raymarine navigation system from a below-deck navigation table, salon or stateroom.
Specifications:
- PoE classClass 1
- Nominal supply voltage12 / 24 V dc
- Operating voltage range10.8V dc to 31.2V dc
- Power consumption3.84W
Environmental:
- Operating temperature-25C to +55C (-13F to 131F)
- Storage temperature-30C to +70C (-22F to 158F)
- Relative humidityMaximum 75%
- Waterproof ratingIPX6
Wired Connections:
- Network / power1 x RayNet connector | (gS Series - 1000 Mb/s plus PoE) | (aSeries , cSeries, eSeries - 100 Mb/s)
- Alternate power1 x power connector
The Raymarine RMK-10 System Remote Control Portrait Keypad is an ultra-compact, wired accessory designed to provide comprehensive control of Raymarine multifunction displays (MFDs) across a variety of series including aSeries, cSeries, eSeries, eS Series, and gS Series. Its ergonomic design features full backlit keys for effortless navigation and operation in low-light conditions, with dedicated controls for home, menu, zoom functions, window management, waypoint handling, and system power and brightness adjustments. Additionally, the RMK-10 includes an integrated multifunction rotary controller with a cursor pad, similar to that found on eS Series displays, enabling intuitive and precise control. The keypad's versatile mounting options, including surface and flush-mount configurations, along with optional key mats for horizontal or vertical installation, allow seamless integration into any helm setup or electronics enclosure. Utilizing Raymarine’s RayNet high-speed networking, the RMK-10 can control one or multiple MFDs, ensuring unified and synchronized operation across your vessel’s navigation system. When paired with aSeries or gS Series Multitouch displays, the RMK-10 unlocks full HybridTouch capabilities, combining touch and keypad control for flexible operation. Its compatibility with Raymarine’s LightHouse II interface ensures straightforward integration, allowing users to operate their navigation systems via touch, keypad, or a combination of both. The device's robust construction includes an IPX6 waterproof rating, making it suitable for demanding marine environments, while its operating temperature range ensures reliable performance from cold to hot conditions. The RMK-10 connects via RayNet or power-only connectors, with support for PoE Class 1 power delivery, and can be conveniently mounted in various locations, including helm chairs for optimal accessibility. Its compact size makes it ideal for controlling MFDs located beyond arm’s reach, in overhead compartments, or at secondary displays, providing marine operators with easy, remote access to critical navigation functions, autopilot controls, and system management. Whether used in a professional or recreational vessel, the Raymarine RMK-10 enhances operational efficiency and user experience with its versatile, reliable design and seamless integration with Raymarine’s advanced navigation systems.
Features:
- Full control of Raymarine multifunction displays including aSeries, cSeries, eSeries, eS Series, and gS Series
- Backlit keys for easy operation in low-light conditions
- Dedicated controls for home, menu, zoom, window management, waypoint handling, and system brightness
- Integrated multifunction rotary controller with cursor pad for intuitive navigation
- Multiple mounting options including surface and flush-mount with optional key mats for horizontal or vertical installation
- Supports RayNet high-speed networking for controlling multiple displays
- Enables full HybridTouch control when used with aSeries or gS Series Multitouch displays
- Compatible with Raymarine LightHouse II user interface for flexible operation modes
- IPX6 waterproof rating suitable for marine environments
- Supports Power over Ethernet (PoE) Class 1 for simplified wiring
- Operates reliably across a wide temperature range from -13°F to 131°F
- Compact design ideal for remote, overhead, or secondary display control
