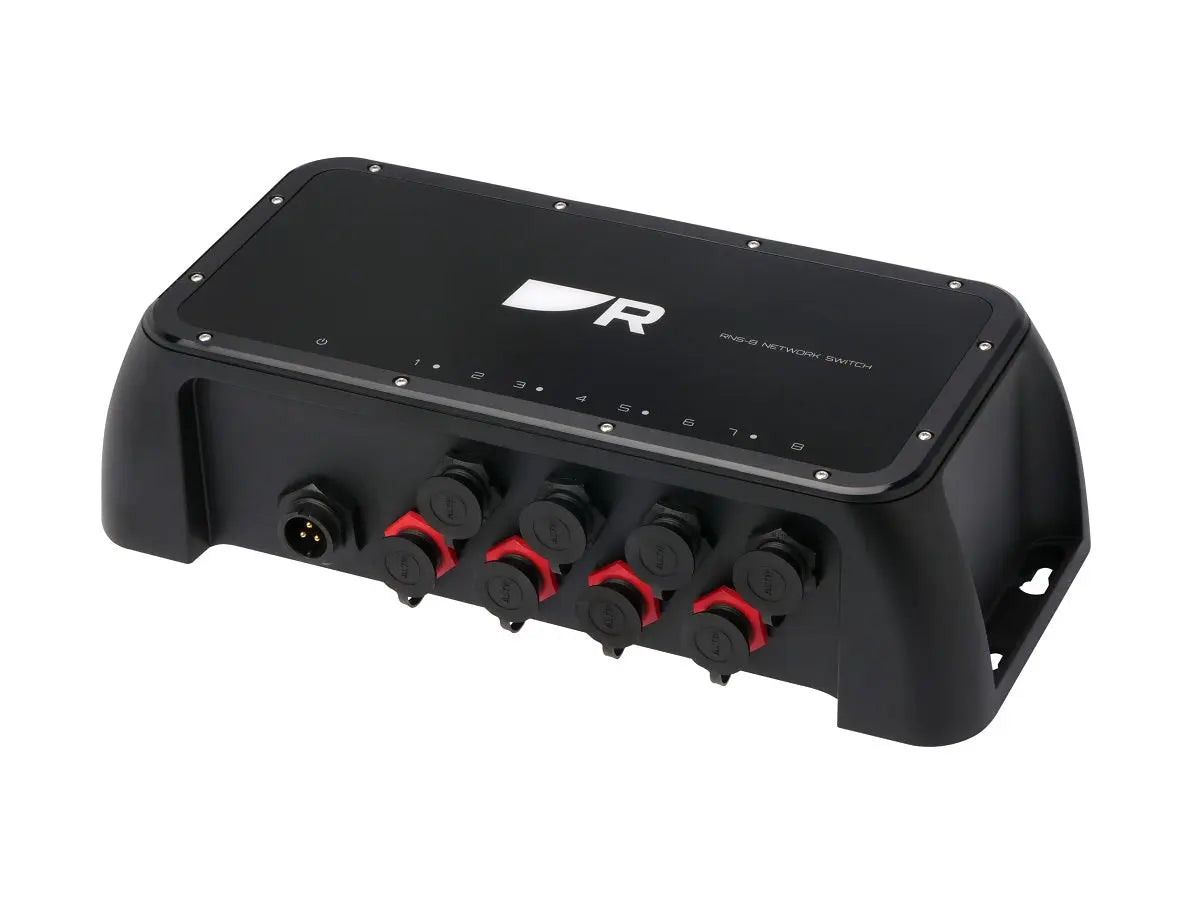

Raymarine RNS-8 8-Port Gigabit Network Switch

Raymarine RNS-8 8-Port Gigabit Network Switch

• 8 RayNet Ethernet gigabit ports for fast and reliable connectivity


• 4 dedicated Power-Over-Ethernet (POE) ports for powering cameras and remotes


• Rugged IPX6/IPX7 construction


• Reliable, waterproof RayNet connector Ethernet cable ports


• Designed for simple bulkhead mounting


• LED power and network port status indicators


• Unmanaged- simply plug and play with Raymarine devices.


• Remote diagnostics and performance monitoring via web browser


• For extended networks, up to 8 RNS-8 switches can be daisy-chained together

The RNS-8 network switch is a premium network switch for integrated Raymarine chartplotter systems. Use the RNS-8 to integrate Axiom displays with radars, sonar modules, and FLIR thermal cameras. The RNS-8 features 4 dedicated Power-Over-Ethernet (POE) ports for integrating and powering POE-compatible devices like CAM300 marine IP cameras and RMK-10 remote keypads. The RNS-8 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Multiple RNS-8 switches can be daisy-chained together for larger systems. The RNS-8 is simple to install and requires no complicated setup.

Nominal supply voltage
12 or 24 V dc

Operating voltage range
9 to 32 V dc

Power Consumption
160 W (Maximum) @ 12 V dc

Connectivity
3-pin male connector common with RNS-5 (1.5m power cable included)

ENVIRONMENTAL SPECIFICATION

Operating temperature range
-25°C (-13°F) to + 55°C (131°F)

Storage temperature range
-30°C (—22°F) to + 70°C (158°F)

Humidity
up to 93% @ 40°C (104°F)

Water ingress protection
IPx6 and IPX7

PHYSICAL SPECIFICATION

Dimensions (l x h x d)
Length: 287.63 mm (11.32 in).Height: 125.5 mm (4.94 in). Depth: 78 mm (3.07 in).

Weight
0.96 Kg (2.12 lbs)

NETWORKING

Protocols
RayNet Ethernet. Legacy SeaTalkHS using an adaptor cable

Connection Speed
1 Gigabit

Number of Ports
8 x10 pin RayNet Connector’

POE (Power over Ethernet)
Yes. 4 POE ports support (lower, red nuts) PoE Classes 0 to 4, with 30 W maximum power available for each port
