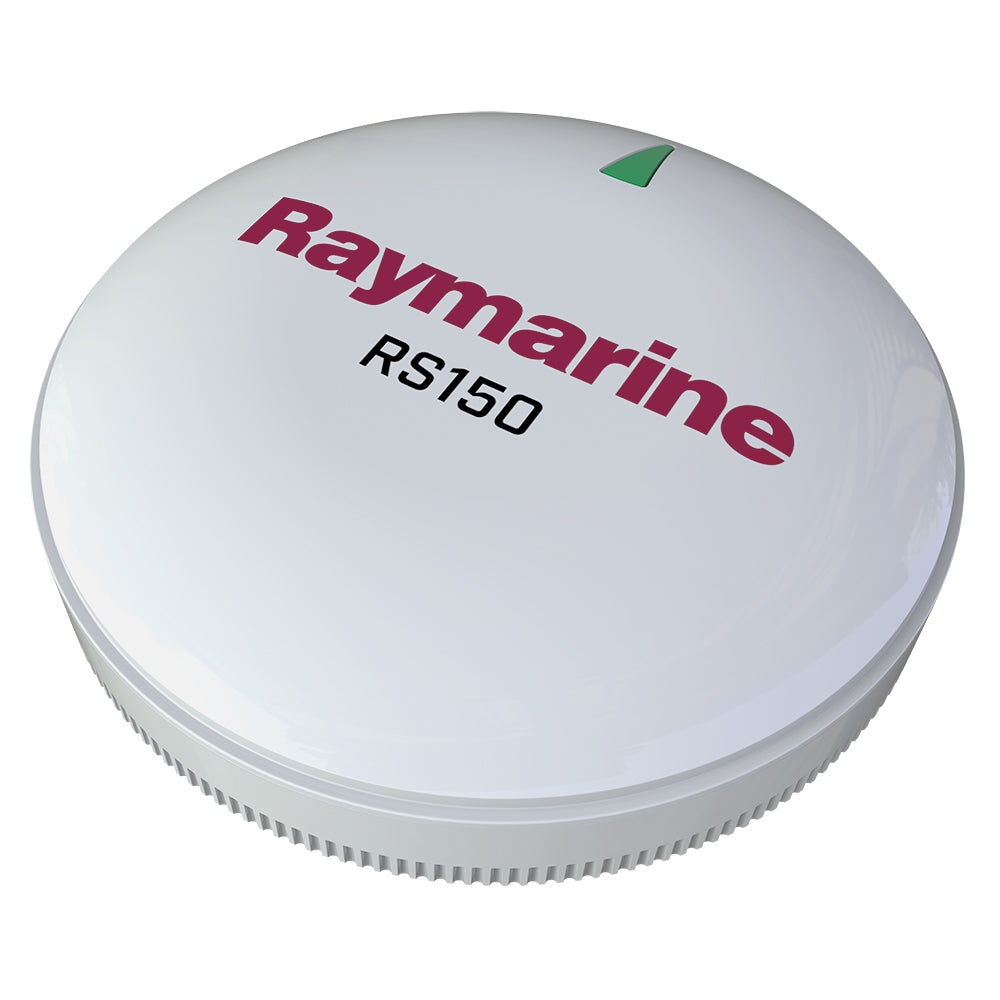

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.
Features:
72-channel GPS receiver
Fast 10Hz position updates
Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
A GNSS receiver with GLONASS compatibility
Low power consumption: 30mA (1 LEN)
SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
Designed for low profile surface mounting or optional pole mounting
Specifications:
Nominal supply voltage: 12V D.C. Powered by N2K bus
Operating voltage range: 8 - 32V DC
Power consumption: 30 mA max (NMEA LEN = 1)
Operating temperature: -13F to 131F (-25C to +55C)
Time to first fix from cold start: <2 minutes (< 45 seconds typical)
Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
Geodetic Datum: WGS84
The Raymarine RS150 GPS Sensor provides high-performance navigation capabilities for marine and outdoor applications. Featuring a 72-channel GPS and GLONASS receiver, it ensures fast and precise positioning with 10Hz update rate, ideal for dynamic navigation scenarios. The RS150 supports satellite differential GPS and is compatible with SBAS systems like WASS, EGNOS, MSAS, and GAGAN, enhancing accuracy for critical navigation tasks. Its high sensitivity acquisition down to -163dBm allows for reliable signal reception even in challenging environments, with positioning accuracy typically better than 15 meters and under 5 meters with SDGPS. The sensor's low power consumption of 30mA makes it suitable for extended operation, while its IPx6/IPx7 waterproof rating ensures durability in harsh marine conditions. Designed for surface mounting or optional pole mounting, the RS150 integrates seamlessly with Raymarine navigation systems via SeaTalkng and NMEA2000 protocols using a device net adapter cable. With a nominal 12V DC power supply and an operating voltage range of 8-32V DC, it is versatile for various vessel configurations. The GPS sensor's quick time to first fix—less than 2 minutes from cold start and approximately 8 seconds from hot start—helps maintain continuous navigation without delays. Its robust design, supported by a 72-channel GNSS system, makes the Raymarine RS150 an essential component for precise, reliable marine navigation and tracking.
Features:
72-channel GPS and GLONASS receiver for comprehensive satellite coverage
Fast 10Hz position update rate for real-time navigation
Satellite differential GPS-compatible with SBAS support including WASS, EGNOS, MSAS, and GAGAN
High sensitivity acquisition down to -163dBm for reliable signal reception
Low power consumption of 30mA, suitable for extended use
Waterproof IPx6/IPx7 rated housing for durability in marine environments
Supports SeaTalkng and NMEA2000 protocols for seamless system integration
Designed for low profile surface mounting or optional pole mounting
