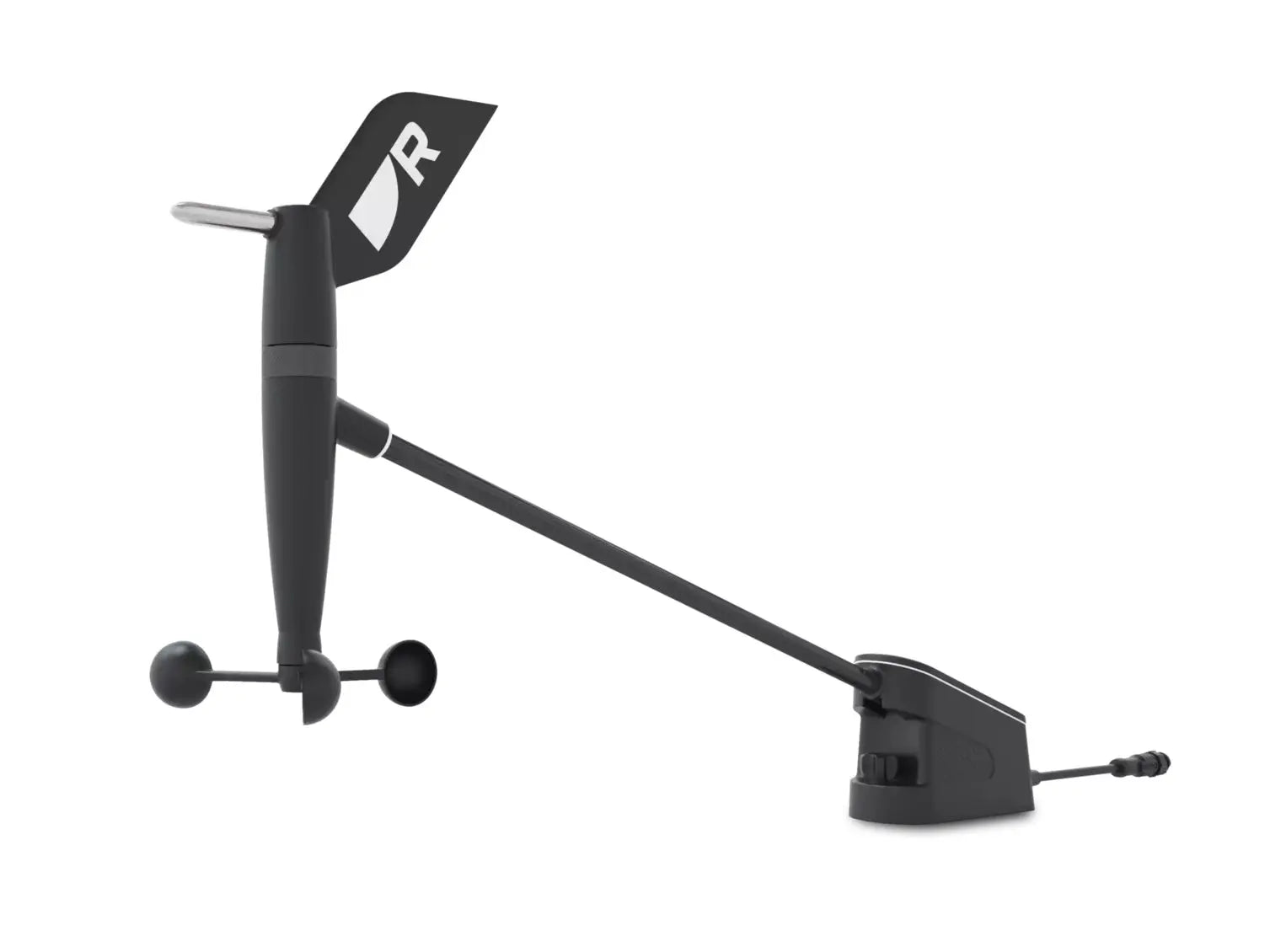

Raymarine RSW Smart Wind Transducer Short Arm 30m Cable

Raymarine RSW Smart Wind Transducer Short Arm 30m Cable

Raymarine RSW Wired, Smart Wind transducer with 30m Cable

• Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up.


• Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.


• Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.

The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.

Length
Wind transducer (including cable): 657.762 mm (25.90 in)

Width
Wind transducer: 46.96 mm (1.85 in)

Height
Wind transducer: 305.86 mm (12.04 in)

Power

Nominal supply voltage
12 V dc (via SeaTalk NG)

Operating voltage range
9 V to 16 V dc

Power Consumption
< 100 mW

Fuse rating
Ensure that the SeaTalk NG backbone is protected by a 5 A fuse

NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating:
1

Environmental

Operating temperature range
-25°C to +55°C (-13°F to +131°F)

Storage temperature range
-30°C to +70°C (-22°F to +158°F)

Relative humidity
Masthead: 100%

Waterproof rating
Wind transducer: IPx6/IPx7

Wind
115 mph (185 kph)

Vibration
EN 60945:2002 (exposed)

What's in the Box:

• No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)


• No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)


• 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)


• Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)


• Mast cable, 30 m (98.43 ft) reel


• Documentation


• Wind transducer


• Smart wind wired gateway


• SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)
