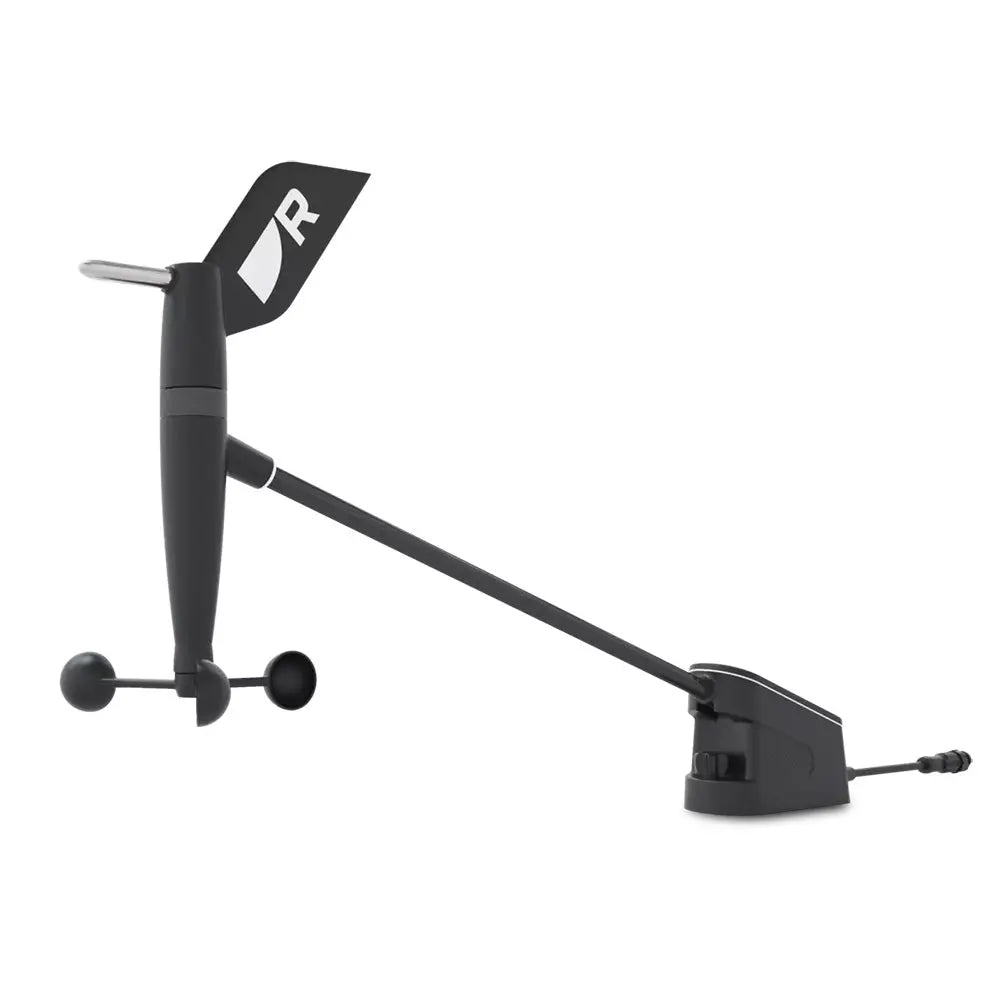

Raymarine RSW Wired Smart Performance Wind Transducer with 30M Cable

RSW Wired - Smart Performance Wind Transducer - Short Arm with 30M Cable

The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30-meter Smart Wind mast cable as standard.

Install Go!

Raymarine Smart Wind technology delivers expert-level accuracy without the need for additional, expensive processors or extensive calibration and set-up.

Finely Tuned

Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the masthead is accurate and consistent.

Sail Smarter

Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.

Specifications:

Length

• Wind transducer (including cable): 657.762 mm (25.90 in)
• Wind transducer (excluding cable): 540.712 mm (21.29 in)
• Wired gateway: 155.61 mm (6.13 in)

Width

• Wind transducer: 46.96 mm (1.85 in)
• Wired gateway: 47.38 mm (1.88 in)

Height

• Wind transducer: 305.86 mm (12.04 in)
• Wired gateway: 30.61 mm (1.21 in)

Power

• Nominal supply voltage: 12 V dc (via SeaTalk NG)
• Operating voltage range: 9 V to 16 V dc
• Power Consumption: < 100 mW
• Fuse rating: Ensure that the SeaTalk NG backbone is protected by a 5 A fuse
• NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1

Environmental

• Operating temperature range: -25C to +55C (-13F to +131F)
• Storage temperature range: -30C to +70C (-22F to +158F)
• Relative humidity: Masthead: 100%/Below deck: up to 93% @ 40C
• Waterproof rating: Wind transducer: IPx6/IPx7/Wired gateway: IPx3
• Wind: 115 mph (185 kph)
• Vibration: EN 60945:2002 (exposed)

What's In The Box

• No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)
• No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)
• 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
• Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
• Mast cable, 30 m (98.43 ft) reel
• Documentation
• Wind transducer
• Smart wind-wired gateway
• SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)

The Raymarine RSW Wired Smart Performance Wind Transducer offers professional-grade accuracy in measuring wind speed and direction, making it an essential tool for serious sailors and marine professionals. Equipped with Raymarine's advanced Smart Wind technology, this transducer provides calibrated wind data instantly, eliminating the need for additional processors or complex calibration procedures. Its design ensures straightforward installation and reliable performance even in harsh marine environments, backed by rigorous wind tunnel testing for precision and consistency. The transducer is supplied with a 30-meter cable, enabling flexible mounting options on your vessel's mast or rigging. With its compact size and robust waterproof ratings, the RSW Wired Wind Transducer can withstand wind speeds up to 115 mph and operate across a wide temperature range from -25°C to +55°C, ensuring durability and dependable operation in diverse conditions. It integrates seamlessly with Raymarine's Alpha Performance Displays and Axiom Chartplotters, delivering trusted True Wind data to optimize sailing performance and decision-making. The package includes mounting hardware, a mast cable, and necessary accessories for easy setup. Designed with safety in mind, the transducer features IPx6/IPx7 waterproof ratings for the wind sensor and IPx3 for the gateway, safeguarding against water ingress during rough seas. Its low power consumption makes it suitable for long-term use without draining vessel batteries, with a nominal 12V DC supply via SeaTalk NG. This wind transducer is a reliable, high-performance solution for sailors seeking precise wind data with minimal setup and maintenance, enhancing navigation, racing, and cruising experiences alike. Whether you’re upgrading your existing system or installing a new setup, the Raymarine RSW Wired Wind Transducer provides the accuracy and durability needed for confident sailing in all conditions.

Features:

• Smart Wind technology: Delivers expert-level calibrated wind speed and direction data without additional processing

• Cable length: 30 meters (98.43 feet) for flexible mounting options

• Compact dimensions: Designed for easy installation on mast or rigging

• Waterproof ratings: IPx6/IPx7 for wind sensor, IPx3 for gateway, suitable for harsh marine environments

• High wind resistance: Capable of measuring winds up to 115 mph (185 kph)

• Power: Operates on 12V DC via SeaTalk NG with low power consumption (<100mW)

• Environmental resilience: Operates in temperatures from -25°C to +55°C, with high humidity tolerance

• Built for durability: Vibration tested to EN 60945:2002 standards, ensuring longevity in demanding conditions

• Complete package: Includes mounting hardware, mast cable, grounding accessories, and documentation
