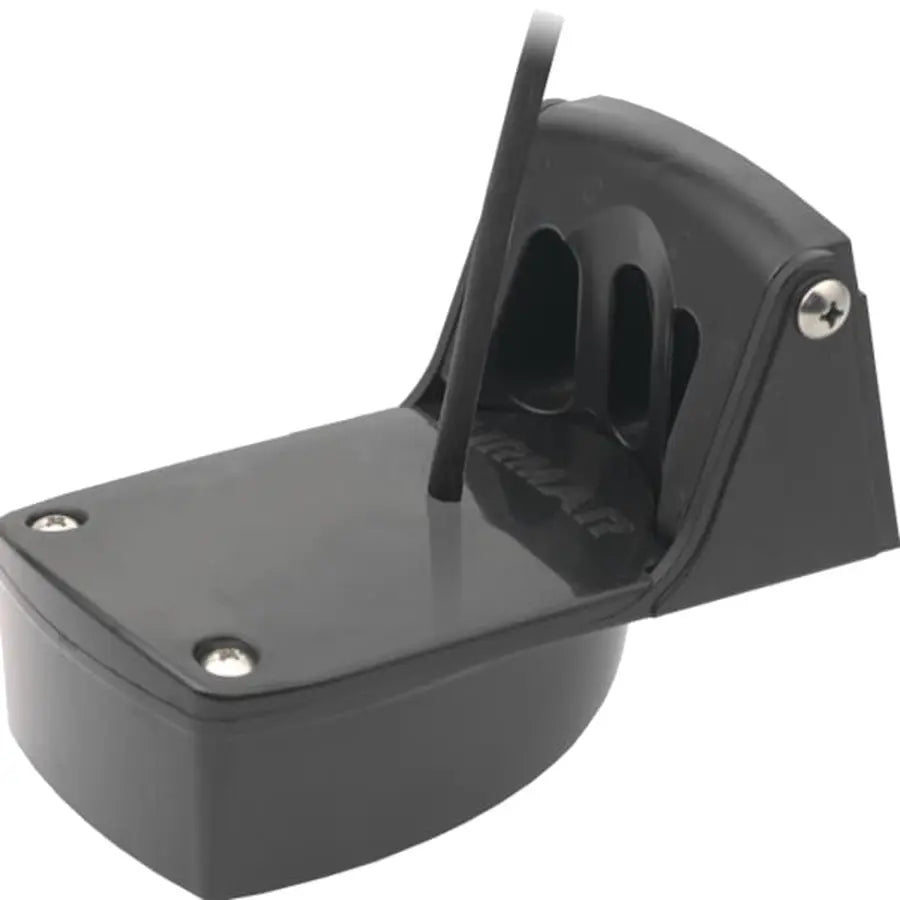

Raymarine TM1150M 1Kw Depth and Temperature CHIRP Transom Mount

Raymarine TM1150M 1Kw Depth and Temperature CHIRP Transom Mount

Raymarine TM1150M 1Kw Depth and Temperature Depth and Temperature

• Depth and fast-response water-temperature sensing


• 300 W of power with a maximum depth of 183 m (600')


• Medium frequency: 95 to 155 kHz - 26° to 17° beamwidth put more energy on targets for great target separation


• 60 kHz of total bandwidth from one transducer ideal for inshore or coastal fishing


• Plastic release bracket protects housing from frontal impact


• Recommended for outboard or inboard/outboard powered boats


• Recommended for planing hulls


• Also available as a thru-hull (B150M) mount


• Patented Xducer ID® technology

Airmar’s TM150M delivers a great combination of shallow and mid-depth performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths down to 183 m (600') with ultra-clear target resolution. Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish—ideal for freshwater, inshore, or coastal fishing in shallow to medium depths. The TM150M is an excellent choice for freshwater and saltwater boats up to 8 m (25').

Power Rating
300 W

Transom Angle
3° to 20°

Functions
Depth, Temperature

Max Vessel LOA
Up to 8 m (26')

Common Use
Leisure/Yachting, Fishing

Housing
Urethane

Max Depth
183 m (600')

Medium Frequency
95-155 kHz

Medium Frequency Beamwidth
26°-17°

Mounting Style
Transom

Retractable housing
No

Single or Dual Frequency
CHIRP-Ready Single-Band

Tilted Element
No

Weight
0.45 kg (1.0 lb.)
