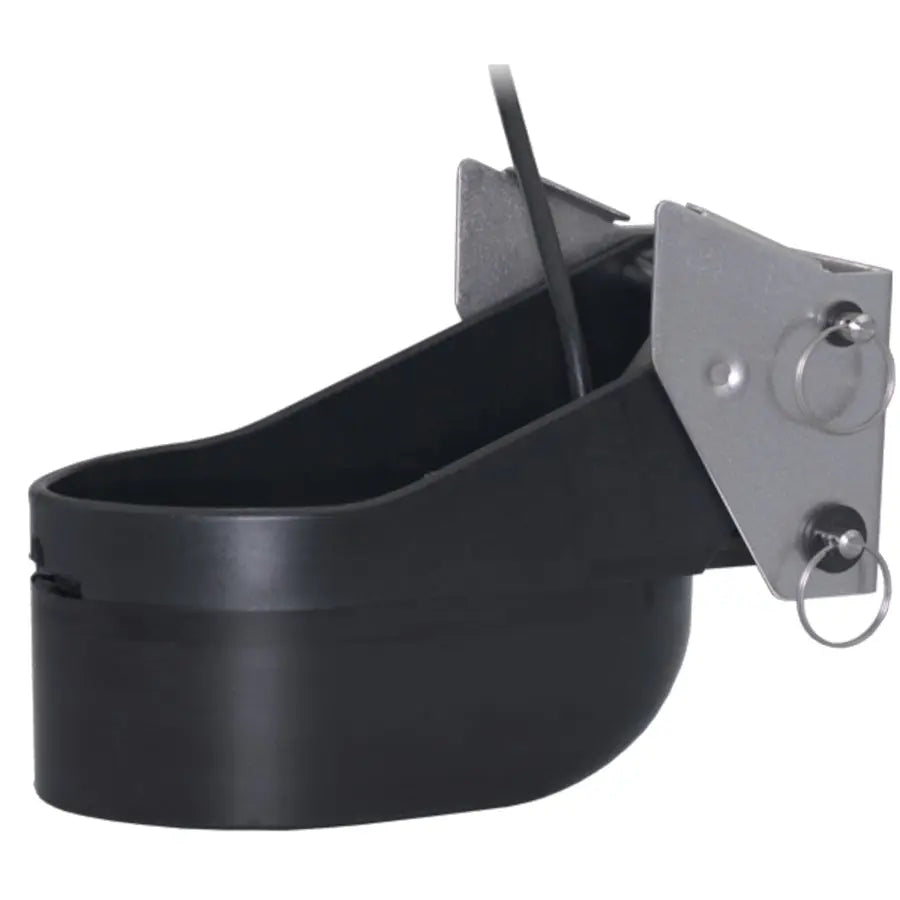

Raymarine TM185MW 1Kw Depth and Temperature CHIRP Transom Mount

Raymarine TM185MW 1Kw Depth and Temperature CHIRP Transom Mount

Model: A80803

• Depth and fast-response water-temperature sensor


• 1 kW with depth tracking down to 400 m (1,300')


• Medium frequency: 60-100 kHz - 57° to 73° beamwidth (port/starboard) - 16° average fore/aft


• 40 kHz of total bandwidth from one transducer


• Medium frequency for superior mid-depth performance and excellent fish-target separation


• Simple installation on transom of the boat


• Great performance at boat speeds below 30 knots


• Easy maintenance and low-cost replacement


• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60100 kHz.

The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.

Specifications

Power Rating
1 kW

Transom Angle
2° to 22°

Functions
Depth, Temperature

Acoustic Window
Urethane

Cable-Length
9 m (30')

Common Use
Leisure/Yachting, Fishing

Country of Origin
USA

Freq Med Wide
60-100 kHz

Housing
Urethane/Stainless Bracket

Hull Material
Compatible w/ all hull materials

Max Depth
400 m (1300')

Medium Frequency
60-100 kHz

Medium-Wide Beamwidth
57° to 73° beam p/s 16° average f/a

Mounting Style
Transom

Power Rating
1 kW

Retractable housing
No

Single or Dual Frequency
CHIRP-Ready Single-Band

Tilted Element
No

Weight
4.2 kg (9.2 lb.)
