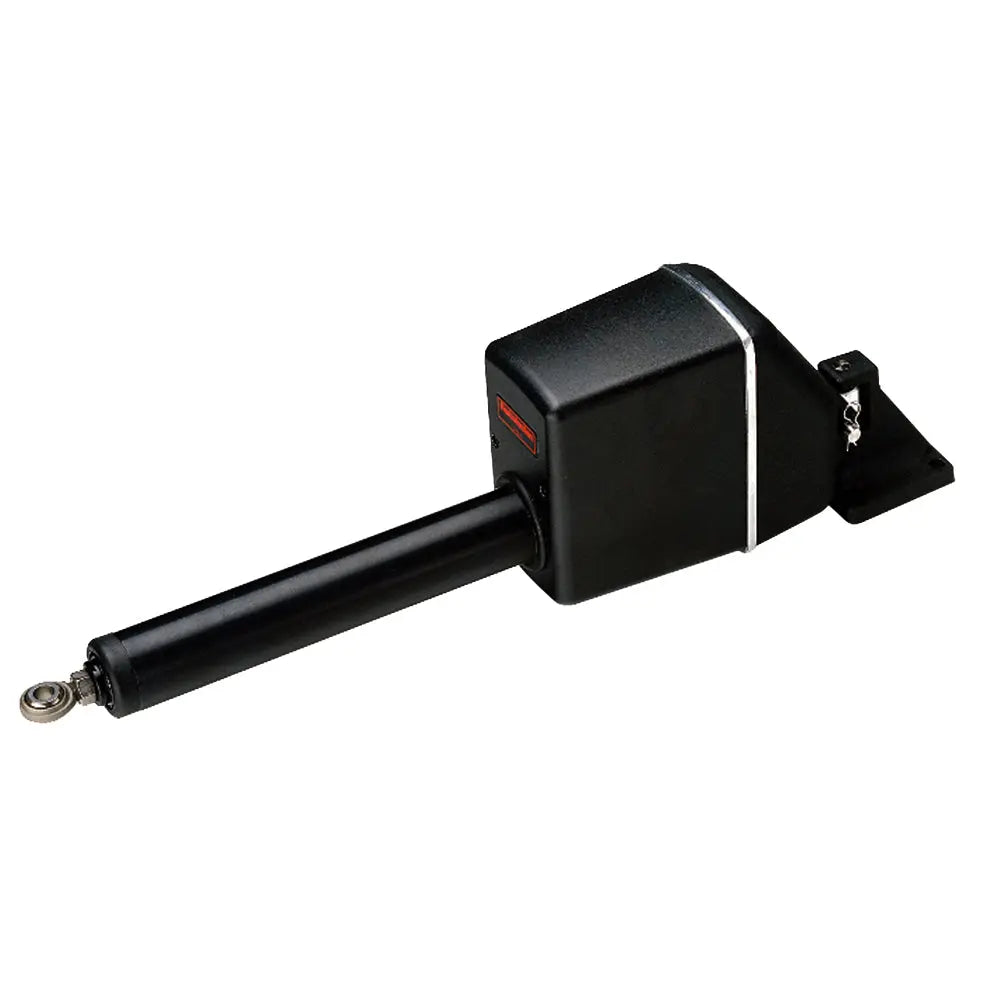

Raymarine Type 1 Linear Drive - 12V for Mechanical Steering Systems

Type 1 Linear Drive - 12V

Linear drive for mechancically steered vessels up to 22,000lb (10,000kg).

Designed for boats with existing mechanical steering systems. The mechanical linear drive provides powerful thrust, fast hardover times and quiet operation.

Features:

• Low backdrive force, to minimize the drives effect on the boats steering when the autopilot is in standby

• A powerful electric motor controlled by an electromagnetic fail-safe clutch, using a high tensile belt drive and epicyclic gearbox

• High performance for minimum current consumption

The Raymarine Type 1 Linear Drive Part Number M81130 is a reliable 12V linear actuator designed specifically for mechanically steered vessels weighing up to 22,000 pounds (10,000 kg). This drive is ideal for boats equipped with existing mechanical steering systems, providing a seamless upgrade to autopilot functionality. It offers powerful thrust, rapid hardover times, and operates quietly to ensure an efficient and unobtrusive steering experience.

Built with a high-performance electric motor controlled by an electromagnetic fail-safe clutch, the drive features a high tensile belt drive and an epicyclic gearbox for durability and smooth operation. The low backdrive force minimizes influence on the boat’s steering when the autopilot system is in standby mode, maintaining the vessel's manual control integrity. Its design emphasizes minimal current consumption, making it energy-efficient for extended use on marine vessels.

Designed to enhance your vessel’s navigation capabilities, the Raymarine Type 1 Linear Drive delivers precise and responsive steering control. Its robust construction ensures longevity and reliable performance even in demanding marine environments. Easy to install and compatible with existing mechanical steering systems, this linear drive offers a significant upgrade for boat owners seeking dependable autopilot integration without extensive modifications. Whether for recreational or commercial vessels, this linear drive is an excellent choice for improving steering efficiency and safety on the water.

Features:

• Low backdrive force to minimize influence on boat steering during autopilot standby

• Powerful electric motor with electromagnetic fail-safe clutch for reliable operation

• High tensile belt drive and epicyclic gearbox for durability and smooth performance

• Designed for vessels up to 22,000 pounds (10,000 kg)

• Quiet operation for unobtrusive performance

• Minimum current consumption for energy efficiency
