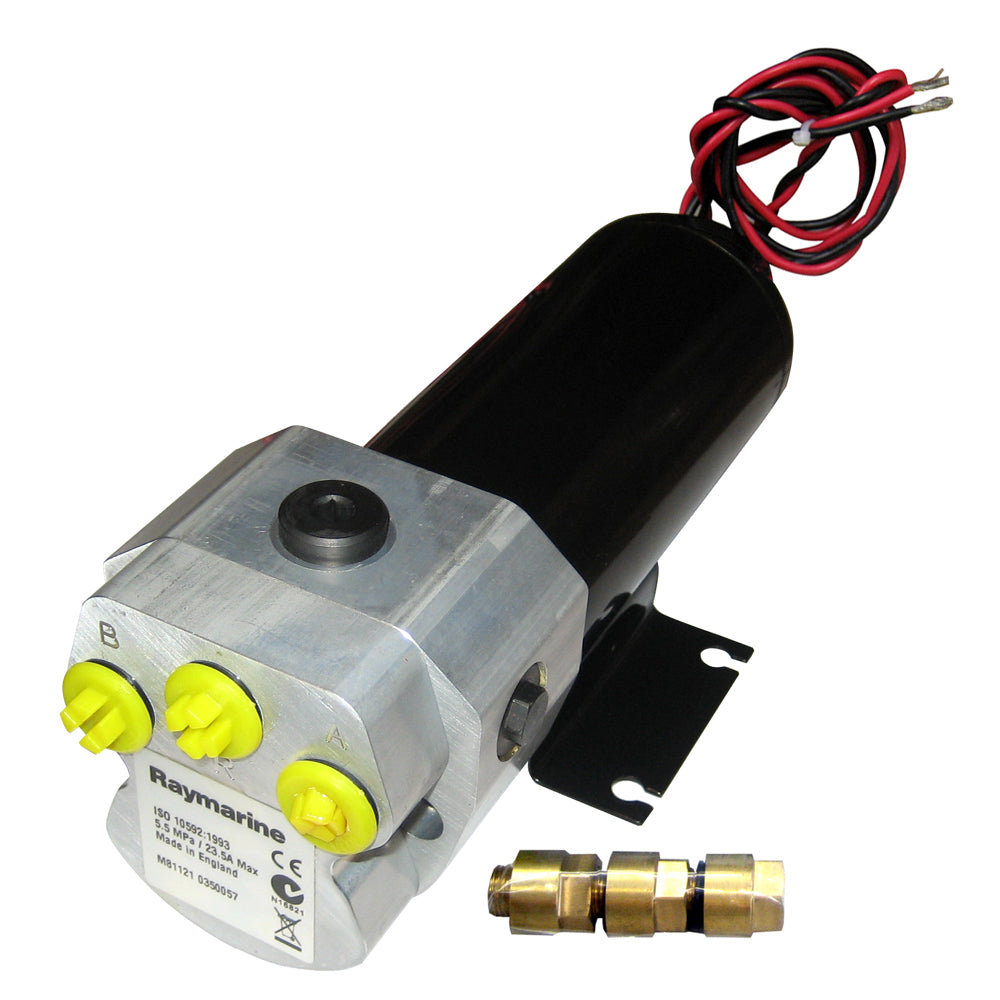

Raymarine Type 1 Pump 12V - Reversing Hydraulic Pump for Steering Systems

Type 1 Pump 12volt
Reversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams.

The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack

Corepack Used S1 or S1G

Ram Capacity 4.9in - 10.5in
(80CC-172CC)
Maximum Stall
Pressure at 12V 750psi (50bar)


(no load) 67in/min (1000cc/min)



Corepack Used S2 or S2G

Ram Capacity 4.9in - 14in
(80cc - 230cc)
Maximum Stall
Pressure at 12V 750psi (50bar)

Peak Flow Rate
(no load) 67in/min (1000CC/min)

The Raymarine Type 1 Pump 12V is a reliable reversing hydraulic pump designed for use with steering systems that utilize hydraulic steering rams. This pump is compatible with both S1/S1G and S2/S2G corepacks, providing versatility for various hydraulic steering configurations. Its robust design ensures efficient operation, making it suitable for boats requiring precise steering control. The pump operates at a maximum stall pressure of 750 psi (50 bar) and delivers a peak flow rate of 67 inches per minute (1000 cc/min) when under no load, ensuring quick and responsive steering adjustments. The pump's compatibility with different corepack sizes from 4.9 inches to 14 inches allows for flexible installation options depending on your vessel's steering requirements. Crafted by Raymarine, this pump combines durability and performance to meet demanding marine steering applications.

Features:

• Reversing hydraulic pump compatible with 12V power supply

• Suitable for steering systems with hydraulic rams up to 14 inches

• Compatible with Raymarine S1/S1G and S2/S2G corepacks

• Maximum stall pressure of 750 psi (50 bar) for reliable operation

• Peak flow rate of 67 inches per minute (1000 cc/min) under no load

• Designed for marine steering system applications
