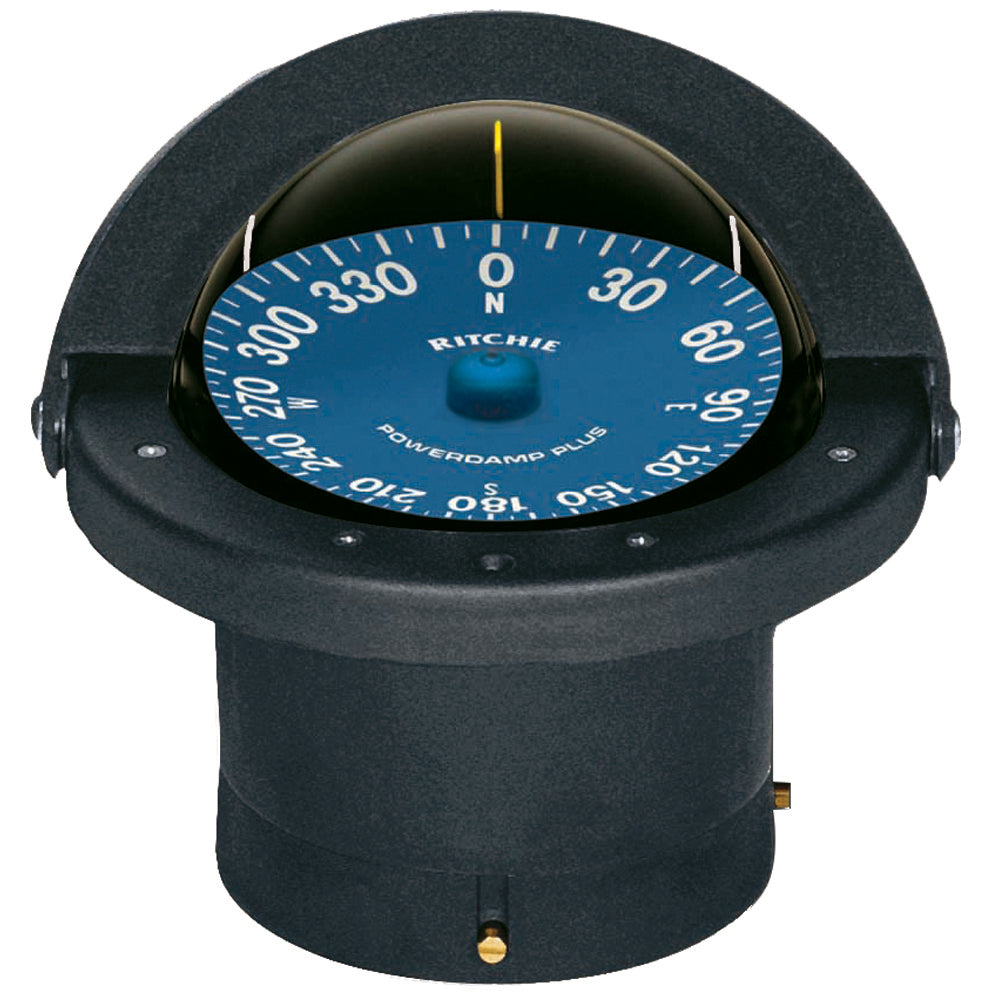

Ritchie SS-2000 SuperSport Compass with PowerDamp Plus Dial and Green LED Lighting

Supersport Compass

Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp Plus dial. This dial technology features the PowerDamp dial skirt to prevent oscillation, larger DirectiveForce magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

Features:

• 4 1/2 (115 mm) PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals
• Easily Installed, Fits 4.75 (121 mm) to 5.125 (130 mm) Mounting Hole
• Built-in Compensators to Easily Adjust for Deviation
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• 12v Green LED lighting standard
• 45 Degree Lubber Lines
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2lbs 10oz (1.19kg)

Notes:

Comes standard with 12v lighting. 24 32v lighting options are available. Some custom built OEM models may have different lighting.

The Ritchie SS-2000 SuperSport Compass is designed for offshore race boats, providing precise navigation with advanced features for maximum reliability. Equipped with the PowerDamp Plus dial technology, this compass includes a PowerDamp dial skirt to prevent oscillation during high-speed maneuvers, larger DirectiveForce magnets for quick lock-on, and oversized steel pivots and jewels for smooth, fast action. Its high-visibility blue dial with extra-large white numerals ensures easy readability in challenging conditions, making it an essential instrument for serious marine navigation.

Installation is straightforward, with the compass fitting mounting holes ranging from 4.75 inches to 5.125 inches. Built-in compensators allow for easy adjustment to account for deviation, ensuring accurate readings. The internal gimbal system provides maximum stability during adverse pitch and roll, maintaining reliable orientation no matter the sea state. Standard features include 12V green LED lighting for low-light visibility, 45-degree lubber lines for precise heading reference, and the design is fully repairable to extend its service life. The Ritchie SS-2000 is backed by an exclusive 5-year warranty, emphasizing durability and quality.

This compass weighs approximately 2 pounds 10 ounces and is constructed for durability and ease of use in demanding marine environments. It ships standard with 12V lighting, with optional 24V or 32V lighting available for specific applications. Some OEM models may feature different lighting configurations. For detailed installation and maintenance information, refer to the owner’s manual available online at the provided URL. The Ritchie SS-2000 SuperSport Compass combines precision, durability, and advanced technology, making it an ideal choice for offshore racing and high-performance marine navigation.

Features:

• 4 1/2 inch (115 mm) PowerDamp Plus dial with high-visibility blue background and large white numerals

• Easily installed, compatible with mounting holes from 4.75 inches to 5.125 inches

• Built-in compensators for straightforward deviation adjustments

• Internal gimbal system ensures maximum stability during pitch and roll

• Standard 12V green LED lighting for enhanced visibility in low-light conditions

• Includes 45-degree lubber lines for precise heading reference

• Fully repairable for extended service life

• Backed by a 5-year Ritchie warranty
