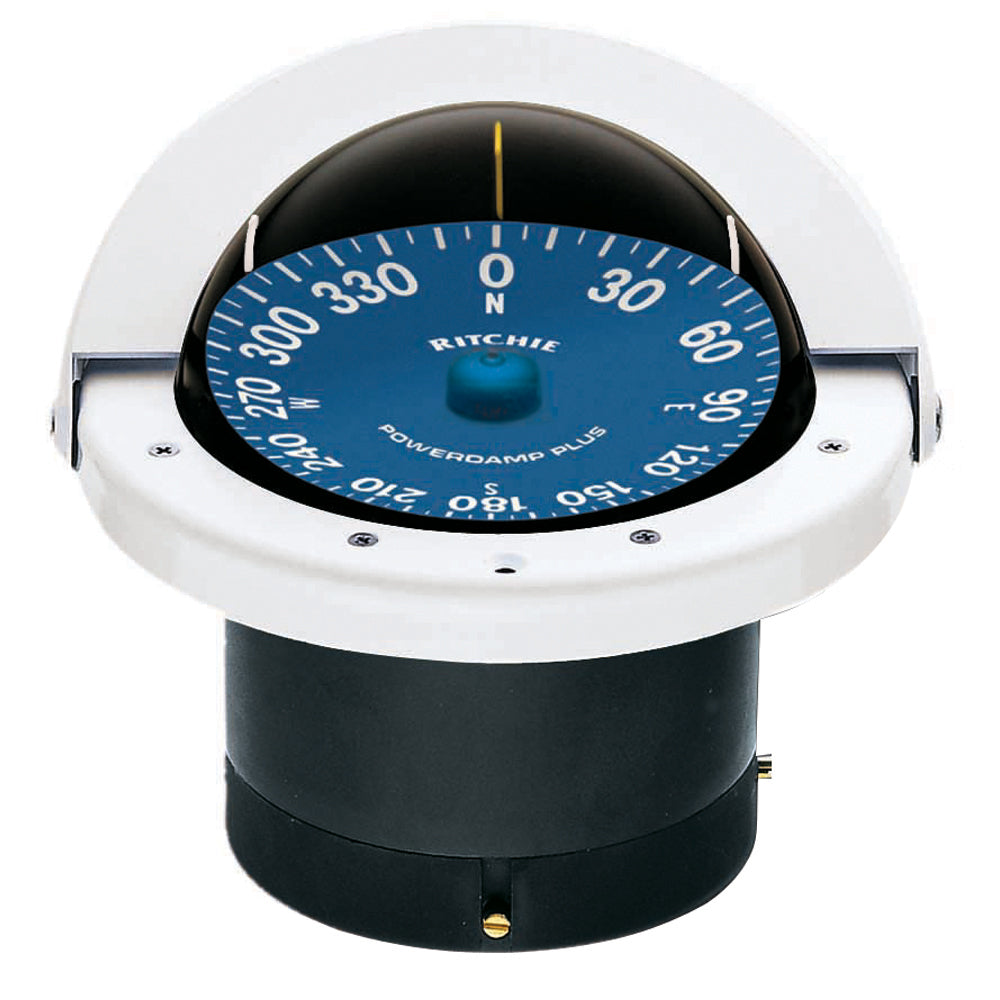

Ritchie SS-2000W SuperSport Compass with PowerDamp Plus Dial - Flush Mount, White Dial

SuperSport Compass

Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp Plus dial. This dial technology features the PowerDamp dial skirt to prevent oscillation, larger DirectiveForce magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

Features:

• 4 1/2 (115 mm) PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals

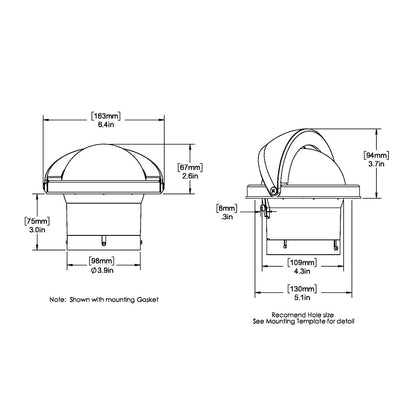

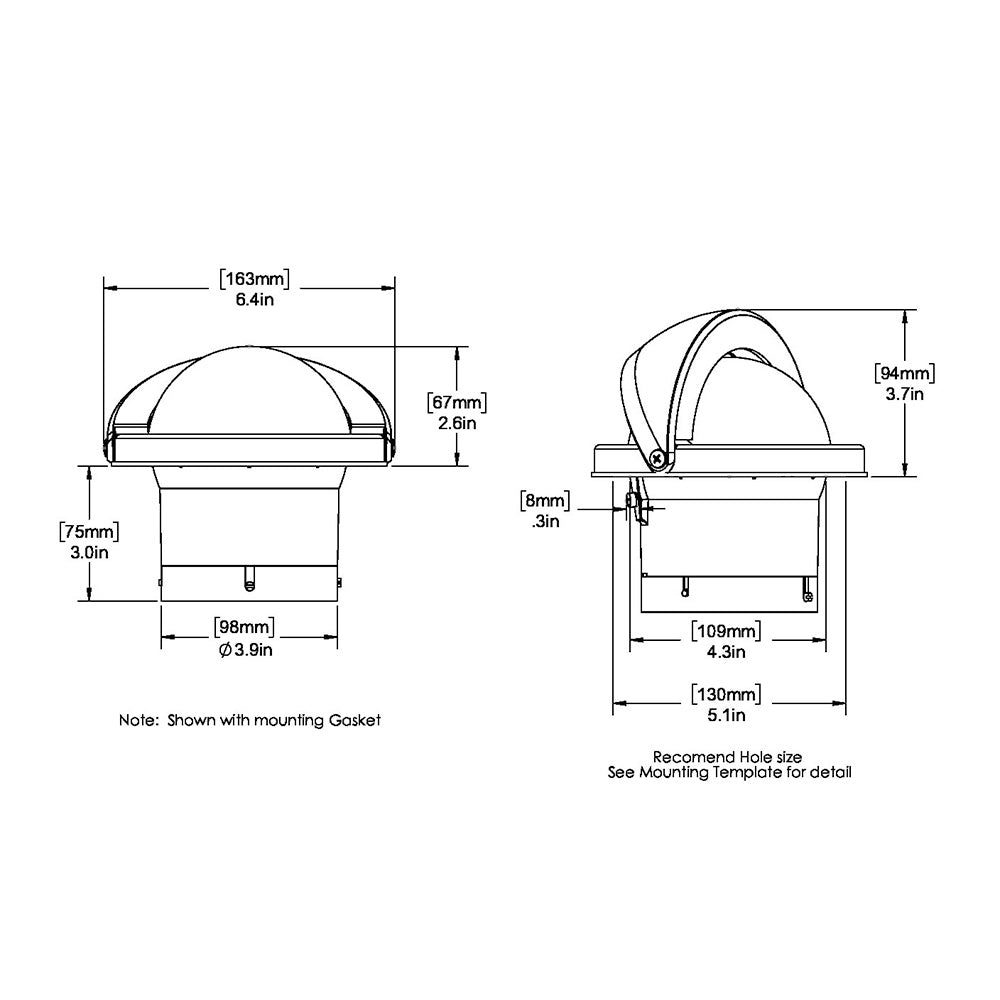

• Easily Installed, Fits 4.75 (121 mm) to 5.125 (130 mm) Mounting Hole
• Built-in Compensators to Easily Adjust for Deviation
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• 12v Green LED lighting standard
• 45 Degree Lubber Lines
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2 lbs. 10 oz. (1.19 kg)

Notes:

Comes standard with 12v lighting. 24 32v lighting options are available. Some custom built OEM models may have different lighting.

The Ritchie SS-2000W SuperSport Compass is designed for offshore race boats and high-performance marine applications, offering precise navigation and maximum stability. Featuring the innovative PowerDamp Plus dial technology, this compass ensures quick lock-on and smooth operation even in challenging conditions. The high-visibility white dial with large white numerals enhances readability, making it easier for operators to maintain accurate course tracking during high-speed maneuvers.

Constructed with robust internal gimbal systems and extra-large steel pivots, the Ritchie SuperSport Compass provides exceptional stability during adverse pitch and roll conditions. The built-in compensators allow for easy adjustment for deviation, ensuring reliable operation across different mounting positions. The compass is designed to fit standard mounting holes, making installation straightforward with minimal effort, and it includes 12-volt green LED lighting for enhanced visibility in low-light environments. Optional 24- or 32-volt lighting configurations are available to suit specific vessel electrical systems.

Measuring approximately 4.5 inches (115 mm) in diameter, this compass is durable and fully repairable, backed by Ritchie's exclusive 5-year warranty. Its compact dimensions and sturdy construction make it an ideal choice for racing yachts, high-performance boats, and demanding marine environments. Whether installed on a new vessel or replacing an existing compass, the Ritchie SS-2000W combines precision, durability, and ease of use to meet the rigorous standards of offshore racing and recreational boating alike.

For detailed installation instructions and maintenance guidelines, refer to the owner’s manual available online. The compass weighs just over 2 pounds, ensuring a lightweight yet sturdy addition to your boat’s navigation system.

Features:

• PowerDamp Plus dial technology prevents oscillation for stable readings

• High-visibility white dial with large white numerals for easy readability

• Easily installs in standard 4.75 to 5.125-inch mounting holes

• Built-in compensators for simple deviation adjustments

• Internal gimbal system ensures maximum stability during pitch and roll

• Standard 12V green LED lighting for low-light conditions

• Includes 45-degree lubber lines for accurate heading references

• Fully repairable design ensures long-term durability

• Backed by Ritchie's exclusive 5-year warranty
